RO4350b 13.3 Mil (0.338mm) PCB Circuit Board 20 Layers
| Price: |
US $ 1.01/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-665-V6.65 |
| Board Thick: |
1.6mm |
| Surface Finish: |
HASL Lead Free |
| Out Layer Copper: |
105 Um (3oz) |
| Soldermask Color: |
Blue |
| Silkscreen Color: |
White |
| Mininum Trace (Mil): |
20 Mil |
| Minimum Gap(Mil): |
15 Mil |
| RoHS Required: |
Yes |
| Warpage: |
≤0.25% |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Company Profile
In the past year, Bicheng has served thousands of customers in the world in the applications
of power electronics, intercom systems, telecommunications etc. Bicheng now is one of
the established brands in PCB industry.
Our clients are from worldwide.
Australia: Perth, Melbourne, New South Wales, South Australia, West Australia
Austria: Breitenfurt bei Wien, Graz
Bangladesh: Purana Paltan
Belgium: Deinze, Hasselt
Bulgaria: Plovdiv
Brazil: Caxias do Sul
Canada: Quebec, Ontario, Vancouver
Czech: Pardubice, Horní Počernice
France: Villeneuve La Garenne Cedex, Montchenu
Germany: Stuttgart, Garbsen, Hamburg, Altenburg, Velbert Kleinmachnow, Potsdam
Hungary: Budapest
India: Tamilnadu
Ireland: Cork
Israel: Nettanya City, Ben-Gurion Airport, Tel Aviv, Yahud, Acre,
Italy: Peschiera Borromeo, Verona, Mezzocorona, Pietrasanta Lucca, Torino
Kuwait: Safat
Malta: Mosta
Malaysia: Selangor
Mexico: Leon Guanajuato
Portugal: Guimarães
South Korea: Gyeonggi-DO
Serbia: Kragujevac
Sweden: Göteborg , Siljansnäs,
Thailand: Bangkok, Chonburi
Turkey: Ankara, Istanbul, Kocaeli
The Netherlands: Diemen
UK: Bristol, Surrey
Ukraine: Kiev
USA: Connecticut, Alaska, New York City, Miami,, New Jersey, Texas, Colorado, Largo,
California, Candler
Vietnam: HoChiMinh City
Zambia: Kitwe

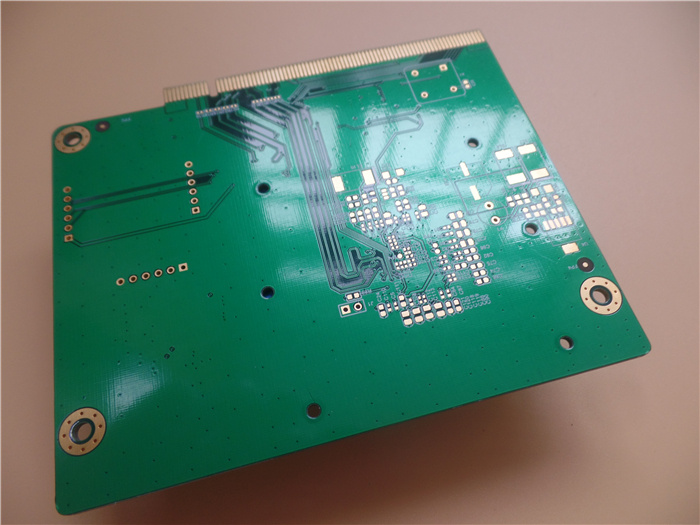

Printed Circuit Board

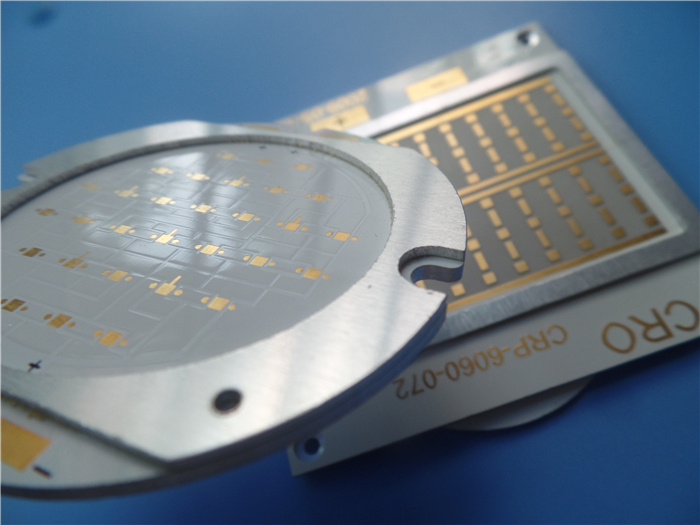

Aluminum PCB

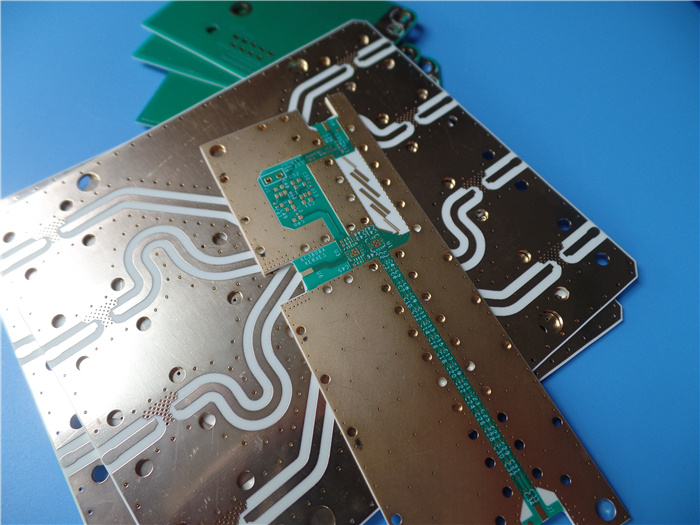

High Frequency PCB

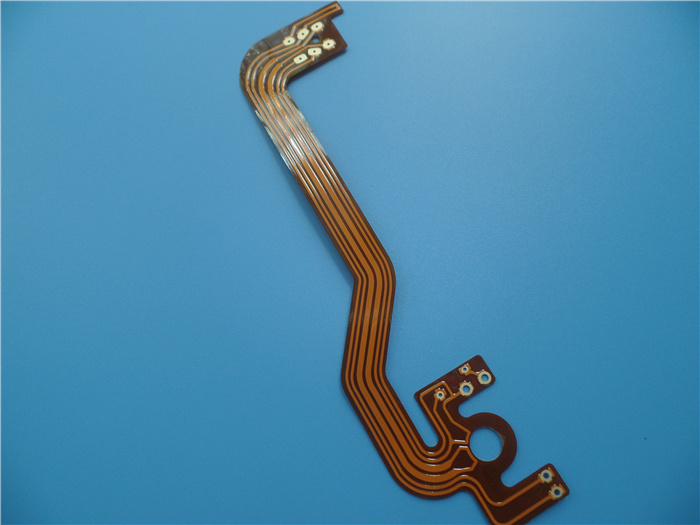

Flex PCB
Technology Information
Performance parameter of MCPCB substrate (The parameter will continue to be improved
without notice)| Test item | Unit | Aluminum base | Copper base | Iron base | Test
method |
| Actual vale | Actual vale | Actual vale |
| Peel strength | N/mm | 2.2 | 2 | 2.3 | 4010 of
GJB1651 |
| Surface resistance | MΩ | 1 x (10^6) | 1 x (10^6) | 1 x (10^6) | 5020 of
GJB1651 |
| Volume resistance | MΩ.m | 3.2 x (10^7) | 3.2 x (10^7) | 3.2 x (10^7) | 5020 of
GJB1651 |
| Breakdown voltage | KV/min | ≥2.0
(Breakdown
voltage is
adjustable
according
to customers'
demend) | ≥1.0
(Breakdown
voltage is
adjustable
according
to customers'
demend) | ≥1.0
(Breakdown
voltage is
adjustable
according to
customers'
demend) | 5040 of
GJB1651 |
| Solder dipping | ºC/min | 260ºC, 3
minutes,
no bubble
and
delamination | 260ºC, 3
minutes,
no bubble
and
delamination | 260ºC, 3
minutes,
no bubble
and
delamination | 4010 of
GJB1651 |
| Flammability | - | FV-0 | FV-0 | FV-0 | 17 of GB
/T4722 |
| Thermal resistance | ºC/W | 0.25-1.2 | 0.25-1.2 | 0.25-1.2 | TO-220 |
| Dielectric constant | - | 3 | 3 | 3 | (40ºC,
93%,96h) |
Thermal conductivity
of Dielectric | W/M.K | 0.8-8 | 0.8-350 | 0.8-3 | ASTM
5470-D |
| Working temperature | ºC | ≤120 | ≤120 | ≤120 | (40ºC,
93%,1Y) |
Thermal conductivity
of metal base | W/M.K | ≥200 | ≥350 | ≥45 | ASTM |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

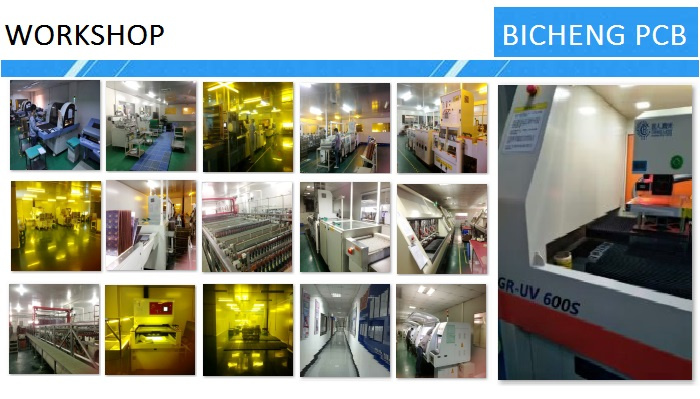

Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
