RO4350b 30mil Rogers PCB Material High Frequency Circuits 1oz Green
| Price: |
US $ 1.89/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1298R2.3 |
| Solder Mask Color: |
Green |
| Board Thick: |
0.9mm |
| Surface Finish: |
Immersion Gold |
| Legend Color: |
White |
| Copper Thick: |
1.5 Oz |
| Minimum Trace and Space: |
5.4 Mil/6.3 Mil |
| Minimum / Maximum Holes: |
0.45/4.1mm |
| Via: |
Plated Through Hole(Pth) |
| Board Plating: |
0.0030" |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Base Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
| Dielectric: |
RO4350b |
Product Description

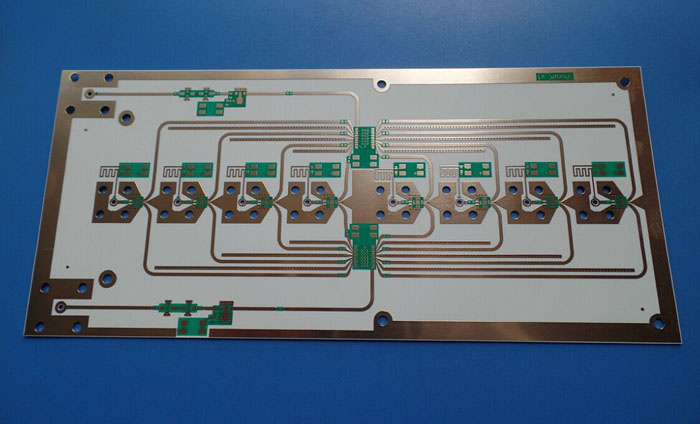

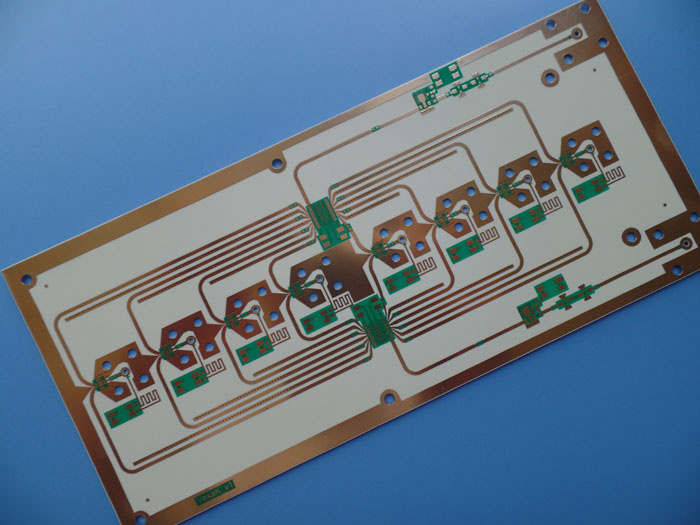

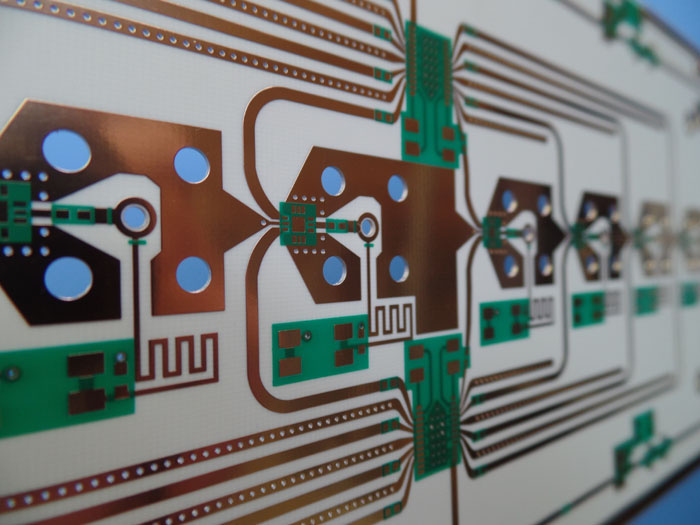

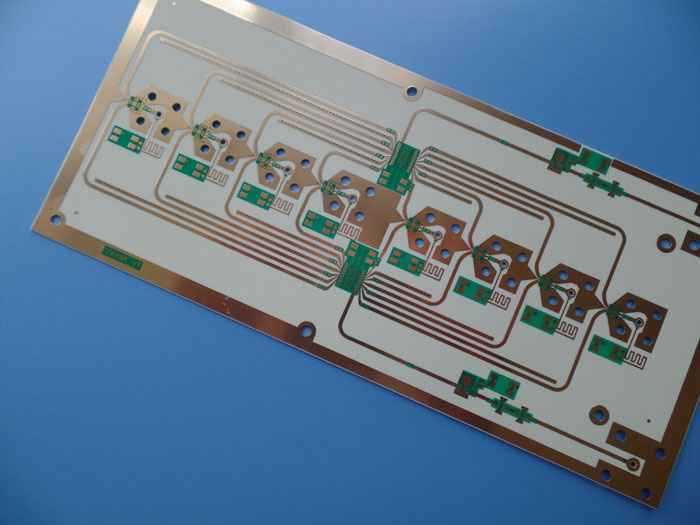

RO4350B 30mil Rogers Material High Frequency PCB Circuits 1.5 oz Copper board Green
Solder Mask Applied In Splitter
Commodity Introduction
This is a type of RO4350B PCB for the application of Splitter. It's a 2 layer board at 0.9mm thick.
The base laminate is from Rogers Corp.. Solder mask and silkscreen from Taiyo. It's fabricated
per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separ
-ately.
Parameters & Data Sheet| PCB SIZE | 145 x 91mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP layer |
| RO4350B 30mil (0.762mm) |
| copper ------- 35um(1oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5.4mil/6.3mil |
| Minimum / Maximum Holes: | 0.45/4.1mm |
| Number of Different Holes: | 7 |
| Number of Drill Holes: | 173 |
| Number of Milled Slots: | 1 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | NO |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4350B 30mil (0.762mm), Tg 288ºC |
| Final foil external: | 1.5oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 0.9mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Electroless nickel over Immersion Gold (ENIG)( 1 µ" over 100 µ" nickel) |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Splitter, 24V Inverter
Analog Device
Variable Speed Drive
IP CCTV
3G Signal Booster |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
