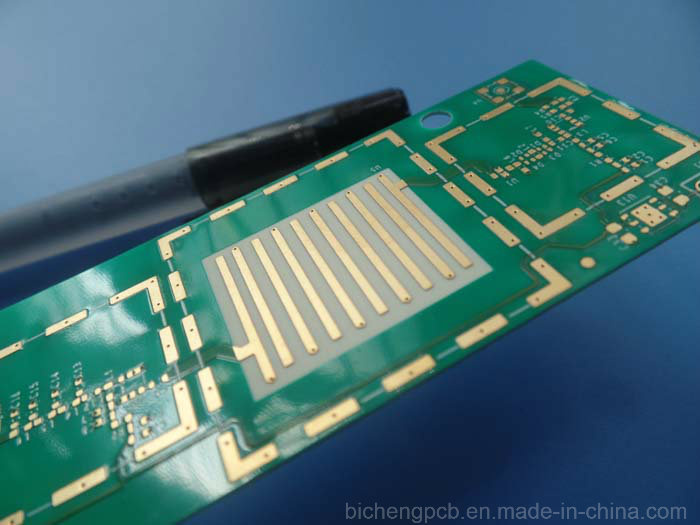

Rogers 4350b PCB Circuit Board Volume Production 12 Layer
| Price: |
US $ 1.06/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-593-V5.93 |
| Board Thick: |
2.26mm |
| Surface Finish: |
Immersion Gold |
| Out Layer Copper: |
2 Oz |
| Inner Copper Foil: |
2 Oz |
| Soldermask Color: |
Blue |
| Silkscreen Color: |
White |
| Warp-Twist: |
0.09% |
| Co.Logo: |
Yes |
| UL.Logo: |
Yes |
| Electrical Test: |
100% PCB Passed |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Company ProfileBicheng Enterprise Limited serves global clients from Shenzhen, China since 2003.
Comprehensive sales service through presale, in sale and after sale.
Quick CADCAM checking and free PCB quotation
Free-of-charge PCB panelization
Prototype PCB capability
Volume Production capability
Quick turn-around samples
Free-of-charge PCB test
Solid carton packing
Printed Circuit Board
Aluminum PCB
High Frequency PCB
Flex PCB

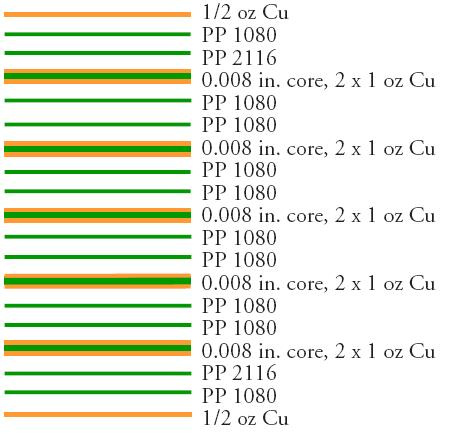

The components of multilayer PCB: copper foilA multilayer board consists of copper foils, thin rigid laminates and prepreg sheets.
The standard thicknesses for copper foils are shown below| µm | 5 | 9 | 12 | 17.5 | 35 | 70 |
| oz | 0.14 | 0.25 | 0.34 | 0.5 | 1 | 2 |
Thick copper (heavy copper) foils are used for voltage and ground planes by some electronics companies. Thicknesses up to 210 µm (6 oz) are specified for high voltage coil boards. For very fineline boards, 5 and 9 µm (0.14 and 0.25 oz.), ultrathin copper foils are also used for the outer layers.
Copper foils are used as copper cladding of the thin laminates used in the inner layers. Such laminates can be delivered with different copper thicknesses on the two sides, for example, 17.5
µm (0.5 oz.) on one side for a signal layer and 35 µm (1 oz.) on the other side for ground or volta
-ge planes.
Copper foils are sometimes used directly as cap foils for the outer layers. In such cases, the cop
-per foils are bonded to the next layers by means of prepreg and form the outer layer circuits.
For signal outer layers, the copper foil thickness is usually 17.5 µm (0.5 oz.) or 35 µm (1 oz.) depending on the minimum track width and spacing. In the case of high-density fine-line boards,
5 or 9 µm (0.14 or 0.25 oz.) ultrathin copper foils can be the only solution to achieve the required
high resolution when etching the board.
For signal inner layers, a 35 µm (1 oz.) copper foil is normally chosen. For ground and voltage
planes, 35 µm (1 oz.) and 70 µm (2 oz.) copper foils can be used. However, the thicker foil, the m
-ore difficult it is to fill the apertures in the planes around the hole wall with epoxy flowing from the prepreg sheets during lamination.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

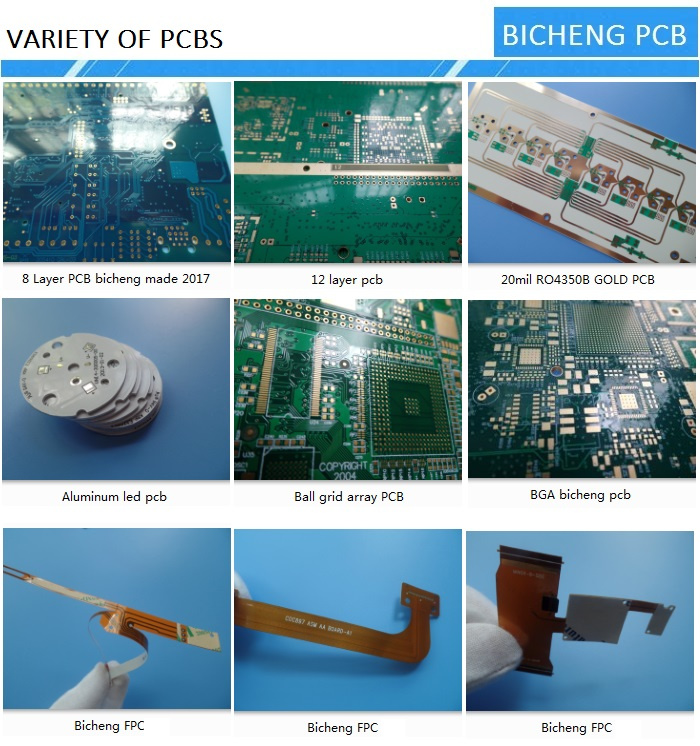

A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

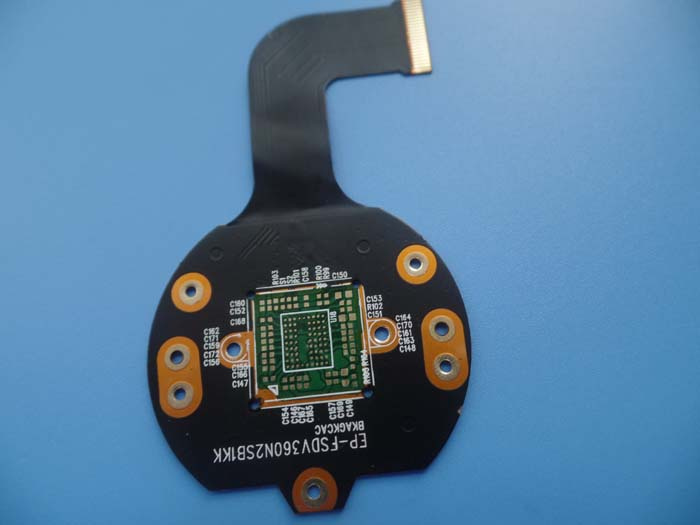

Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
