| Prod Model: |
Rld65mpt9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wavelength: |
650-666nm |
| Power: |
5MW/ 7MW/ 10MW |
| Color: |
Red Light |
| Can Type/ Diameter: |
To18/ 5.6mm |
| Service Life: |
10000 Hours |
| Reverse Voltage (Ld): |
2V |
| Reverse Voltage( Pin Pd): |
30V |
| Operating Temperature: |
-10 to +40degree |
| Storage Temperature: |
-40 to +85degree |
| Operating Current: |
18mA Typ. |
Product Description
Features:
1. Visible light output: 650nm ~666nm
2. Optical output power: 7mw CW
3. Small package: φ5.6mm

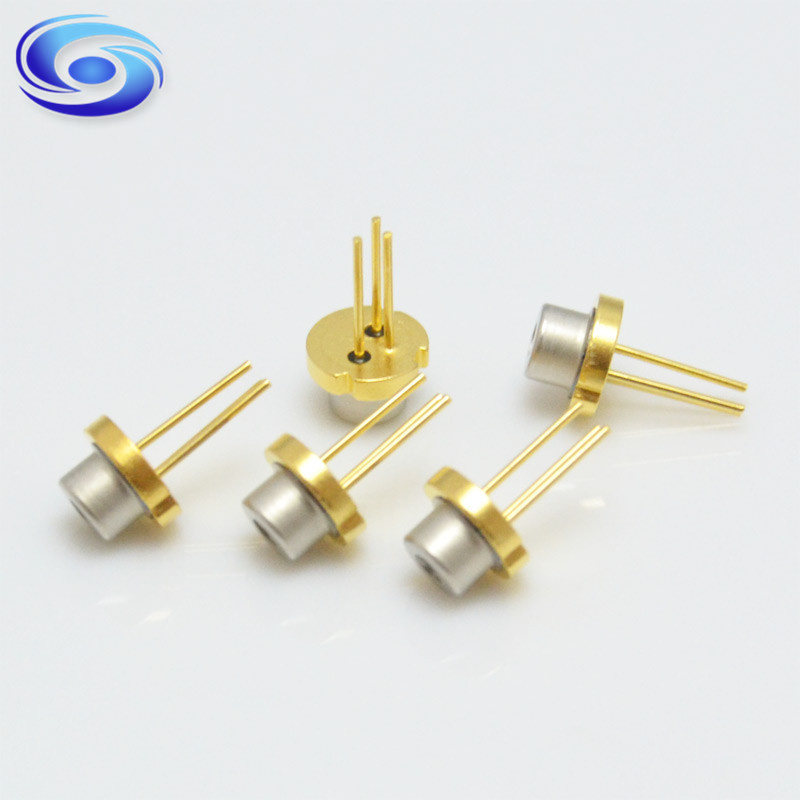

Cheap Rohm High Quality 658nm 5mw 7mw Red Laser Diode
( RLD65MPT9)
Absolute Maximum Ratings (Tc=25ºC)
Parameter | Symbol | Ratings | Unit |
| Optical Output Power | Po | 7 | mW |
| Reverse Voltage | LD | Vr (LD) | 2 | V |
| | Pin PD | Vr (PD) | 30 | V |
| Operating Temperature | Tc | -10~40 | ºC |
| Storage Temperature | Tstg | -40~+85 | ºC |
Initial Electrical /Optical Characteristics(Tc=25ºC)
Parameter | Symbol | Conditions | Min. | Typ. | Max | Unit |
| Lasing Wavelength | λd | Po=5mW | 650 | 660 | 666 | nm |
| Threshold Current | Ith | - | - | 13 | 40 | mA |
| Operating Current | Iop | Po=5mW | - | 18 | 50 | mA |
| Operating Voltage | Vop | Po=5mW | - | 2.3 | 2.8 | V |
| Output Efficiency | η | 2mW/(I(5mW)-I(3mW)) | 0.4 | 0.9 | 1.3 | W/A |
| Monitor current | Im | Po=5mW | 0.05 | 0.15 | 0.4 | mA |
| Beam Divergence | Parallel | Θ// | Po=5mW | 6 | 8.5 | 14 | ° |
| Perpendicular | θ⊥ | 20 | 27 | 34 | ° |
| Beam tolerance | Parallel | θ// | Po=5mW | -4 | 0 | +4 | ° |
| Perpendicular | θ⊥ | -4 | 0 | +4 | ° |
| Emission Point Accuracy | XYZ | - | -100 | 0
| +100 | μm |
| Astigmatic Difference | As | NA=0.55, Po=5mW | - | 1 | 6 | μm |
Description:
1. Optimization of a strained multi quantum well realizes the reduction in threshold current, and the good temperature characteristic.
2. Low threshold current : 13mA (T C =25°C)
3. Low noise is realized by a high frequency modulation element.
4. Package details: Plastic box package, it depends on different kinds of laser diodes with different sizes.Normally 100pcs in one tray, 10 trays in one bag ,then 10 bags in one carton box.
