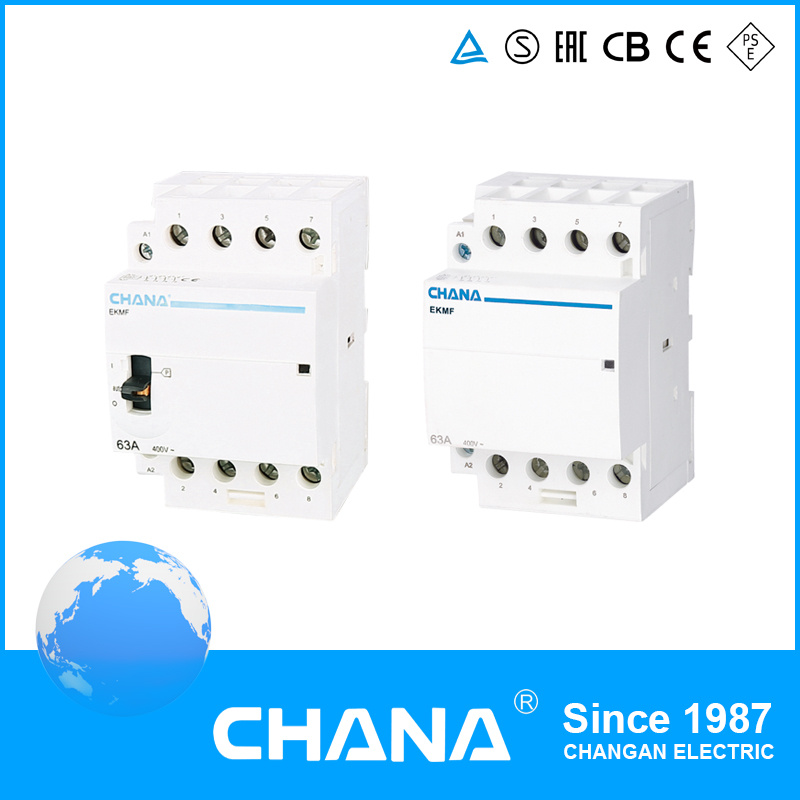

RoHS and CB Approved AC Contactor 2p 4pole 63A Contactor

Name: RoHS and CB Approved AC Contactor 2p 4pole 63A Contactor
Brand: all-electronics-online.com
SKU: 743053775
Availability: InStock
Rating: 4.3 (99 reviews)

Price:	US $ 3.30-3.91/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	EKMF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Control Voltage:	24V, 220-240V
Pole:	2p 4p
Rated Frequency:	50/60Hz
Size:	Miniature
Theory:	Modular Contactor
Load:	Medium Power Relay
Protective Characteristics:	Contactor
Action Principle:	Electromagnetic Type
Usage:	Contactor for Home
Installation:	DIN Rail

Product Description

Modular Contactor

1. Specification

Standard	IEC61008-1
Electrical Feature
Power current
Rated current In	16, 25, 40, 63A
Rated voltage Ue	230V(2P) 400V(4P)
Rated sensitivity	A0.03,0.1,0.3
Rated frequency	50/60Hz
Remote control circuit(coil)
Control voltage	24V, 220V-240V
Rated frequency	50/60Hz
Mechanical endurance	100,000 cycles
Electrical endurance	30,000 cycles
Ambient temperature	-5-+60
Connection terminal	pillar terminal with clamp
Contact form
2P	2NO, 2NC, 1NO+1NC
4P	4NO, 4NC, 3NO+1NC, 2NO+2NC
Construction and Feature
Compact and modular design
Electro-magnetic mechanism free of noise
Contact position indication
Big contact capacity and long endurance
Automatic and manual type

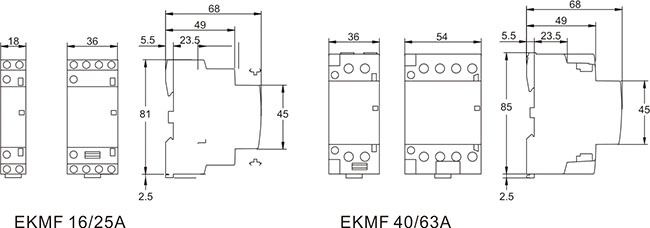

2. Dimension(mm)

3. Feature Product

4. Our Services

A. Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B. After-service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 18 months warranty after goods arrive.
We Positively Revert Your Complain Within 48hours.

C. Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With All Technical Support From Engineer Team.

5. FAQ

Q 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance against the copy of b/l.

Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.

Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.

Q 4. Could you offer form a? or c/o?
A. It's totally not a? problem. We can prepare relative documents to foreign affairs office or other office??to apply for this certificate.

Q 5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do oem.

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
