RoHS Stainless Steel Mpm281 Pressure Sensor

Name: RoHS Stainless Steel Mpm281 Pressure Sensor
Brand: all-electronics-online.com
SKU: 741157345
Availability: InStock
Rating: 4.3 (60 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM281
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Range:	0~200kpa...70MPa
Accuracy:	0.25%Fs (Typ.)
Output:	Analog
Environment Temperature:	35 C
Key Words:	RoHS Stainless Steel Pressure Sensor
Usage:	Processing Pressure Measurement
Housing:	Ss316L
Theory:	Pizoresistive Sensor
Power Supply:	(1.5± 0.0015)Madc
Media Temperature:	35 C
Measuring Medium:	Gases and Liquids

Product Description

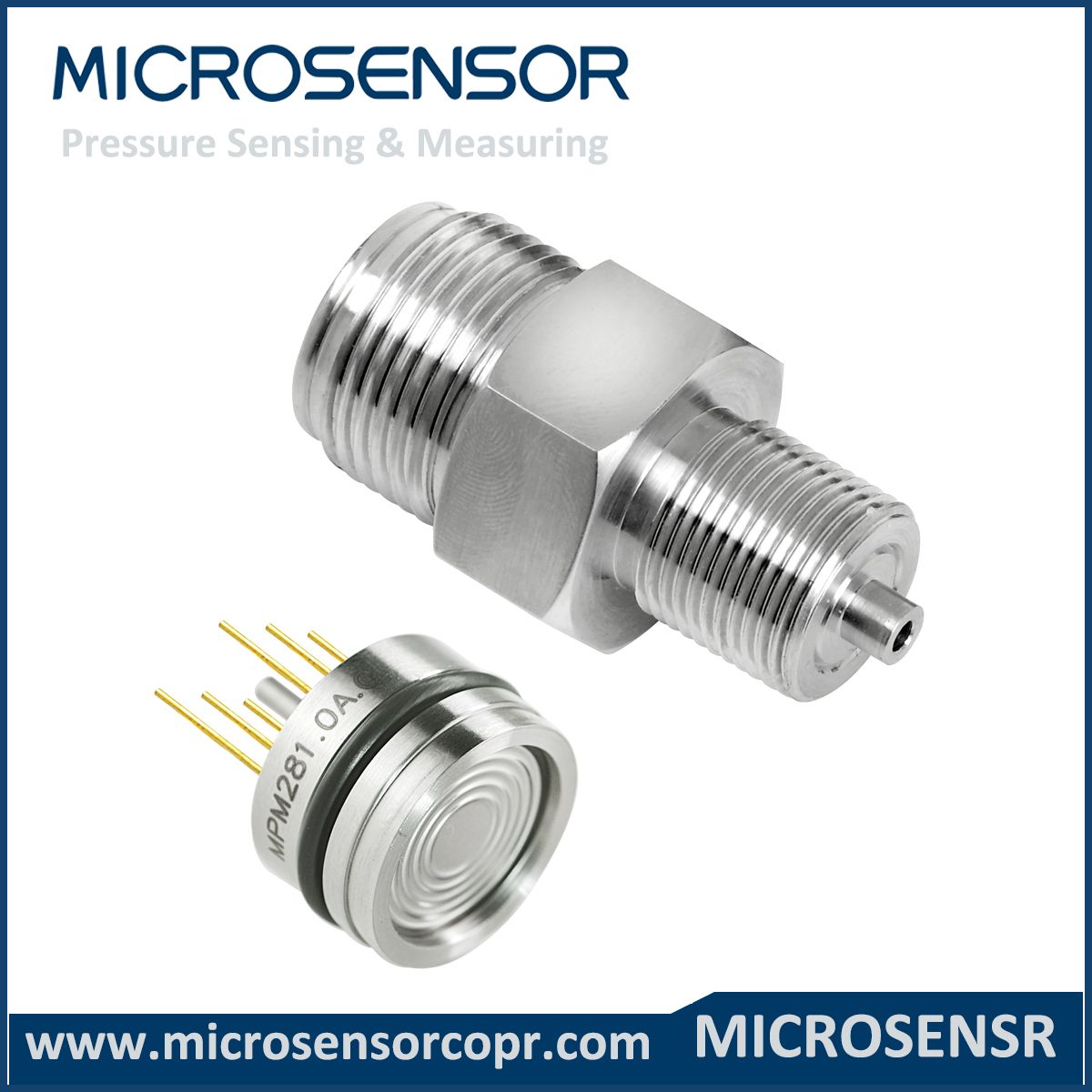

RoHS Stainless Steel MPM281 Pressure Sensor

Features:
1.      Stainless steel
2.      RoHS approved
3.      Compact size
4.      High stable
5.      OEM
6.      Constant current power supply

Applications:
1.      Industrial process
2.      Liquid
3.      Gas
4.      Level
5.      Cooling system
6.      Air conditioning

Introduction:
MPM281 high stable OEM sensor is the piezoresistive pressure sensor with isolated construction and precise compensation. It uses high stable silicon die, stainless steel 316L housing with diameter Ф19mm. Wider temperature compensation and zero correction are calibrated by laser trimming technics. The measured pressure is transmitted onto silicon die through 316L diaphragm and inner media, to transform the pressure to electric signal.

Micro sensor is a leading company for variable pressure sensors, transducer and transmitter.
Basic Specification:

Basic Specification:

Item*	Min.	Typ.	Max.	Units
Linearity		±0.2	±0.25	%FS,BFSL
Repeatability		±0.05	±0.075	%FS
Hysteresis		±0.05	±0.075	%FS
Zero output			±2	mV DC
FS output **	70			mV DC
Zero thermal error***		±0.75	±1.0	%FS,@35ºC
Span thermal error		±0.75	±1.0	%FS,@35ºC
Compensated temp. range	-10~80 0~70(7kPa,20 kPa,35 kPa)			ºC
Working temp. range	-40~125			ºC
Storage temp. range	-40~125			ºC
Stability error		±0.1	±0.2	%FS/year
testing at basic condition * for range code 0C, FS output ≥45mV ***for rang code 0C, Zero thermal error≤1.5%FS

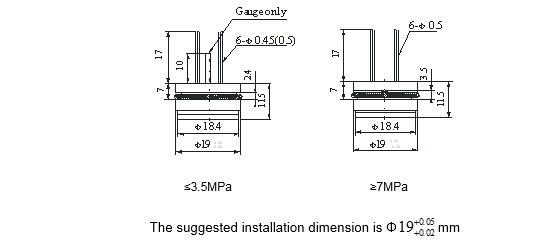

Outline Construction:

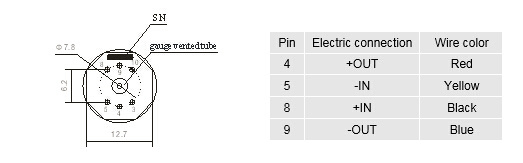

Electric Connection:

Order Guide:

MPM281

High Stable Piezoresistive OEM Pressure Sensor

Range code

Pressure range

Ref.

Range code

Pressure range

Ref.

0kPa~7kPa

0kPa~1000kPa

G.A

0kPa~20kPa

0MPa~2MPa

G.A

0kPa~35kPa

G.A

0MPa~3.5MPa

G.A.S

0kPa~70kPa

G.A

0MPa~7MPa

0kPa~100kPa

G.A

0MPa~10MPa

0kPa~200kPa

G.A

0MPa~20MPa

0kPa~350kPa

G.A

0MPa~35MPa

0kPa~700kPa

G.A

0MPa~70MPa

Code

Pressure type

Gauge

Absolute

Sealed gauge

Code

Pressure connection

O-ring

Code

Compensation

Laser trimming

Outer compensated resistor (providing resistor value)

Code

Electric connection

Kovar pin(default)

100mm silicon rubber flexible wires

Code

Special measurement

Gauge sensor to measure vacuum

MPM281 07 G 0 L 1 Y the whole spec
