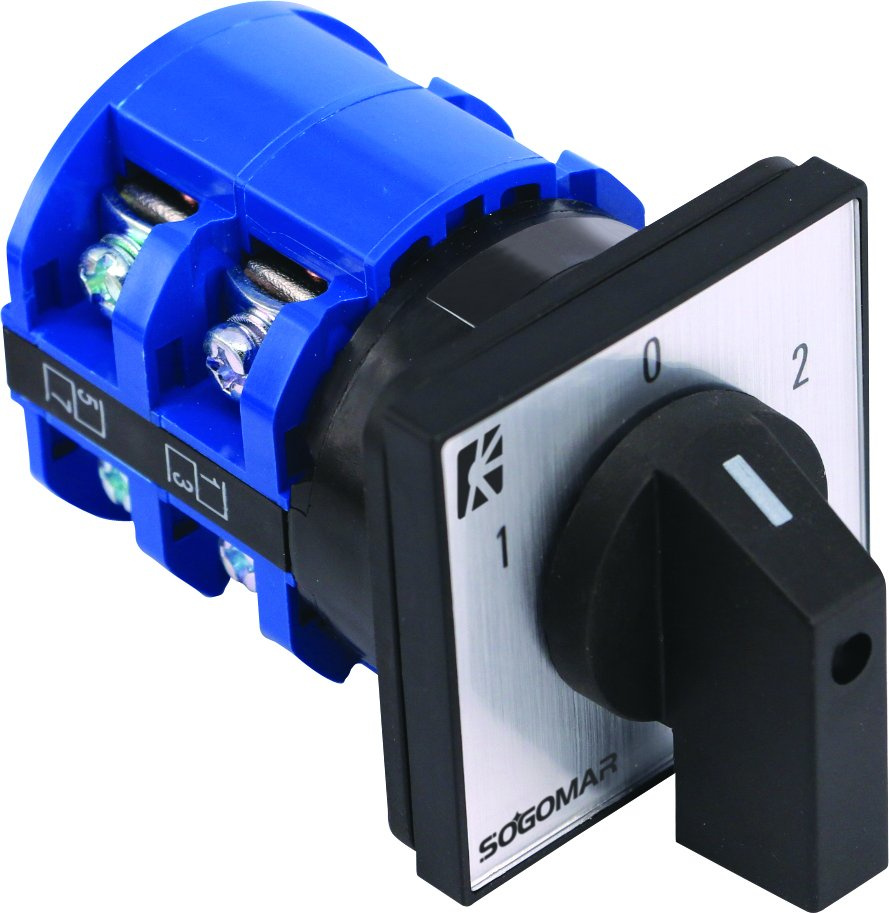

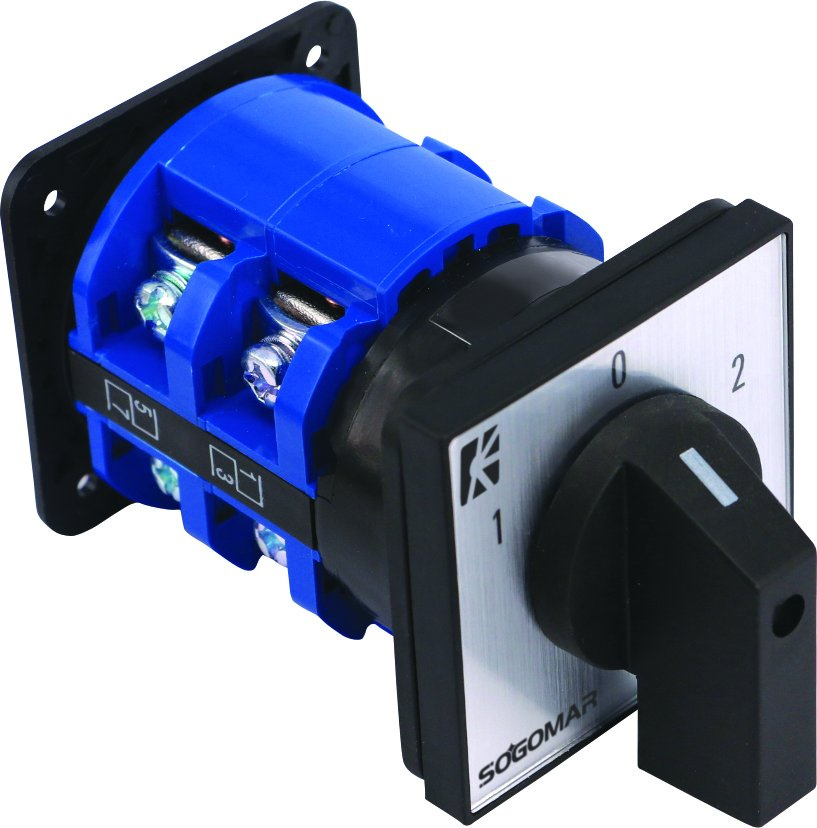

Rotary Switch 63Ampere 1Pole, 2Pole, 3Pole, 4Pole 1-0-2

Name: Rotary Switch 63Ampere 1Pole, 2Pole, 3Pole, 4Pole 1-0-2
Brand: all-electronics-online.com
SKU: 833510355
Availability: InStock
Rating: 5 (113 reviews)

Price:	US $ 4.7-14/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SEA63
Mechanical Life:	100,000times
Max. Voltage:	690V
Max. Current:	315A
Pole:	1p,2p,3p,4p
Contact:	Silver Point

Product Description

1. Working Conditions
(1) Operation temperate:-25ºC to +40ºC
(2) The installation should not over 2000mtrs above sea level
(3) The humidity should not exceed 90% when the ambient temperature is 20ºC and the humidity
should not exceed 50% when the ambient temperature is 40ºC
(4) A clean environment is required

2. Conform to bellow standard
EN60947-3
EN60947-5-1
IEC60947-3
IEC60947-5-1

3. Current

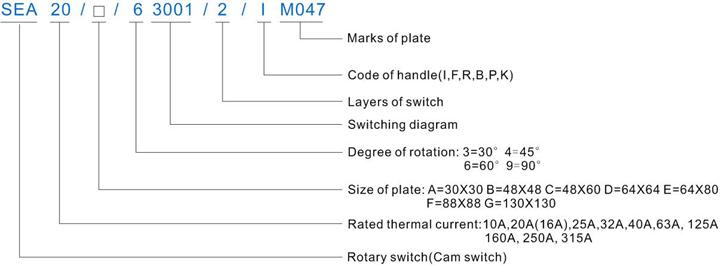

For the SEA series, we make 10 current ratings: 10A, 20A, 25A, 32A, 40A, 63A, 125A, 160A, 250A and 315A.
They were designed with multiple functions, wide variety of applications.

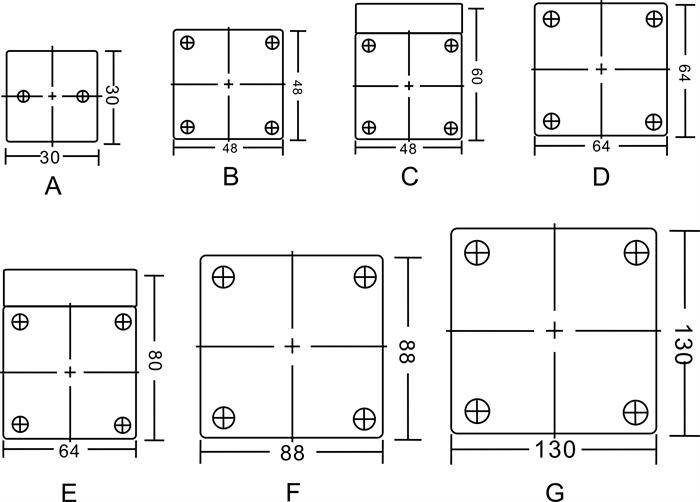

Code	Current	Plate size(mm)	Degree of rotation	Max. layers
SEA10	10A	30X30,	30°45° 60° 90°	8
SEA20	20A	48X48, 48X60, 64X64, 64X80	30°45° 60° 90°	12
SEA25	25A	48X48, 48X60, 64X64, 64X80	30°45° 60° 90°	12
SEA32	32A	64X64, 64X80,88X88	30°45° 60° 90°	12
SEA40	40A	64X64, 64X80,88X88	30°45° 60° 90°	12
SEA63	63A	64X64, 64X80,88X88	30°45° 60° 90°	12
SEA125	125A	88X88	30°45° 60° 90°	8
SEA160	160A	88X88	30°45° 60° 90°	8
SEA250	250A	88X88	30°45° 60° 90°	8
SEA315	315A	130X130	30°45° 60° 90°	8

Description			SEA10	SEA20	SEA25	SEA32	SEA63
Rated insulation voltage Ui		V	400	690	690	690	690
Rated thermal current Ith		A	10	20	25	32	63
Power Frequency voltage-withstand 1min		V	2500	2500	2500	2500	2500
AC working current
		A	10	20	25	32	63
AC15	220V	A	2.5	5	8	14	16
AC15	380V	A	1.5	4	5	6	7
AC-3	220V	KW	1.5	3	4	5.5	11
AC-3	380V	KW	2.2	5.5	7.5	11	18.5
AC-4	220V	KW	0.37	0.55	1.5	2.5	2.7
AC-4	380V	KW	0.55	1.5	3	5.5	5.5
DC working currently
No.of contact	1 2 3 4
DC-21 Resistive load Voltage(V)	24 48 70 95	A	10	20	25	32	63
	48 95 140 190	A	6	12	20	25
	110 220 330	A	0.7	1	1.5	2
	220 440	A	0.3	0.4	0.5	0.6
	440	A	0.2	0.27	0.3	0.3
DC-13 Inductive load Voltage(V)	24 48 70 95	A	6	12	20	25
	30 60 90 120	A	3	5	9	12
	48 95 140	A	1	2	3	3
	60 120	A	0.7	1	1.5	1.5
	110	A	0.3	0.4	0.5	0.5
AC electrical endurance		10⁴ times	20	20	20	20	20
DC electrical endurance		10⁴times	5	5	5
Mechanical endurance		10⁴times	30	30	30	30	30
