RS232, RS485 Digital Output Fuel Level Sensor

Name: RS232, RS485 Digital Output Fuel Level Sensor
Brand: all-electronics-online.com
SKU: 674185082
Availability: InStock
Rating: 4.7 (115 reviews)

Price:	US $ 80-90/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JT606X
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Length:	10mm~2500mm
Input Voltage:	4~70V
Accuracy:	0.5%
Sealing:	IP67
Fuel Tank Shape:	No Limitation
Cut Off:	Yes
Output:	Digital ; Analog
Medium:	Disel, Oil
Application:	Truck, Car, Excavator, Generator Tank...

Product Description

RS232, RS485 Digital output Fuel Level Sensor

Digital fuel level sensor JT606X is a good tool to manage your mobile fleet and assets.

Main features:

1.Capacitance type of fuel sensor of high precision,
2.The accuracy is 0.5% and the resolution is 1mm, V
3.Voltage type 0~5V, Current type 4~20mA and Digital type RS232, RS485 are available for fuel sensor.

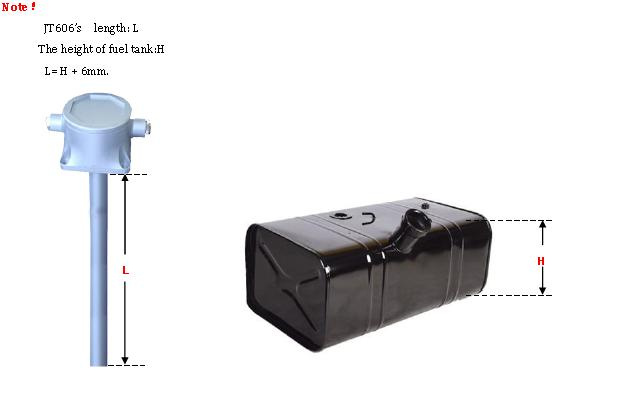

4.Cut off according to different size fuel tank.
5.Flange patent for easy installation

1. capacitive, high resolution, 0.5%,

2. cuttable,
Length available: 10mm~2500mm

3. easy installation, flange patent, drill 1 hole

4. anti-explosion certification

5. output: analog 0~5V, 4~20mA,
Digital:RS232, RS485

Parameteres:

Item	Performance parameters
Collection principle	Capacitance
Size	100mm to 1500mm(minimum can be detected 100mm,maximum can be detected 1500mm) There have 3mm blind area of bottom fuel sensor can't be detected.
Electrical parameters	DC: 4-70V, better DC: 4-36V (Over voltage protection, reverse Voltage protection)
Power Consumption	0.200W/5V,0.286W/12V,0.571W/24V
Signal output	RS232,RS485, 0-5V
Communication baud	2400,4800,9600,57600,115200
Resistance ouput	10~500Ω
Detection of liquid type	Diesel, biodiesel, kerosene, etc.
Resolution	Less than 1mm
Accuracy	±0.5%
Use of the environment	Work temperature:-40ºC~+75ºC
Use of the environment	Save temperature:-40ºC~+85ºC
Humidity	0~99%
Detector material	Aluminium alloy
Protection class	IP67

Working with GPS tracker & software:
1.Fuel sensor:Our capacitance fuel sensor with high accuracy 0.5%, in addition, it can be cut according to the depth of fuel tank, we can provide different types of fuel sensor:Digital, analog, voltage, the resolution is 1mm.
2.Hardware:Our GP series can monitor fuel sensors for detecting fuel consumption.

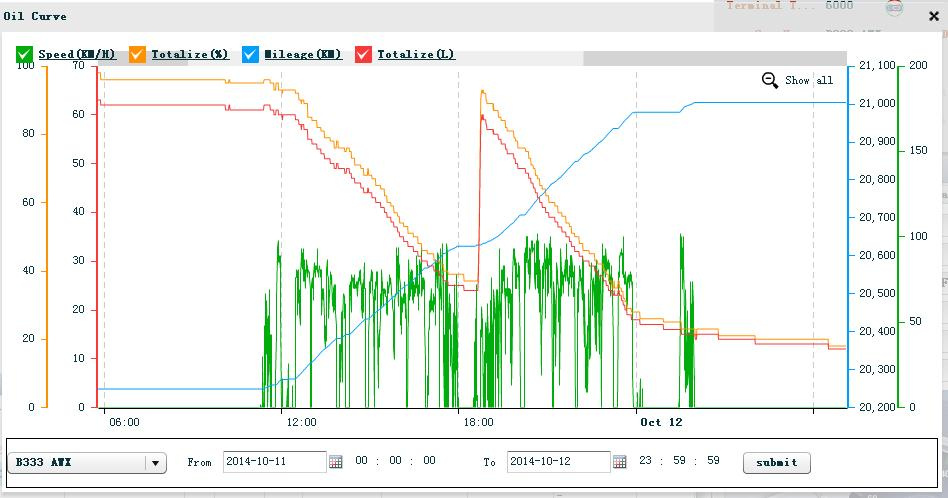

3.Software:Data will be displayed as curve real time.Good tool for manager to manage your fleet.

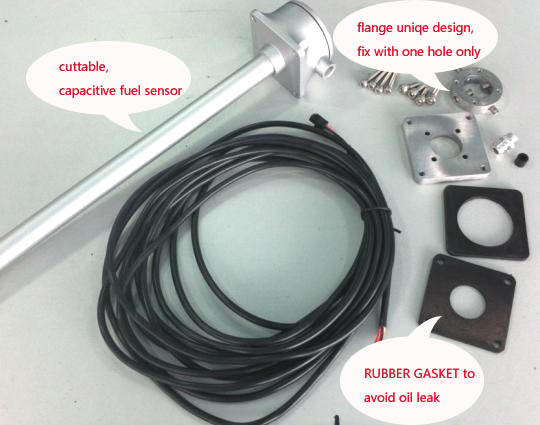

Features and accessories Picture:
