RS485 Accurate Level Transmitter Mpm460W

Name: RS485 Accurate Level Transmitter Mpm460W
Brand: all-electronics-online.com
SKU: 741731585
Availability: InStock
Rating: 4.3 (145 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM460W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measuring Range:	0~1...200mh2o
Transmitter +Controller:	Display
Accuracy:	0.25%Fs (Typ.)
Pressure Port:	Stainless Steel
Application:	Industrial
Keywords:	RS485 Accurate Level Transmitter
Output:	Digital
Indication:	LED
Over Pressure:	1.5 Times Fs Pressure
Media Temperature:	-10~80c

Product Description

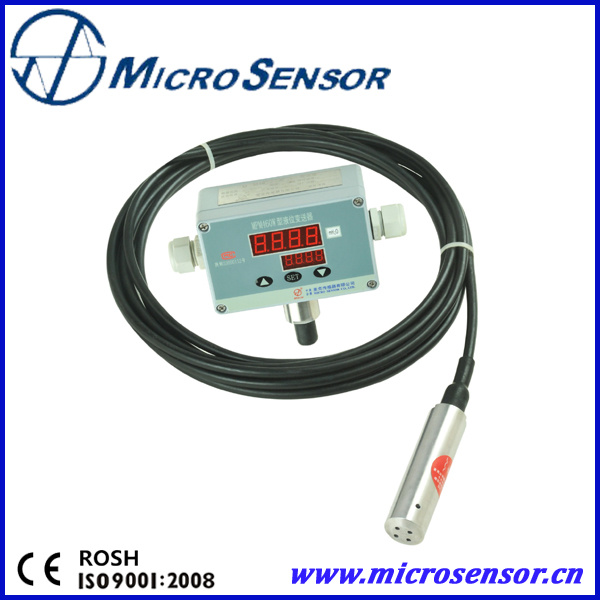

RS485 Accurate Level Transmitter Mpm460W

Features:
  1. RS485 available
  2.      Wireless transmission
  3.      High accurate
  4.      IP65
  5.      LED display
  6.      Key-press handover

Specifications:

MPM460W

Pressure range: gauge 0~1200mH2O
Overpressure: 1.5 times FS Sensor part housing protection: IP68

  1.        Output signal:   analog 4~20mADC, 0~10/20mADC or 0/1~5VDC; digital RS485
  2.        Accuracy:   +0.25%FS(typ.);    +0.5%FS(max.) including analog output's lin.,rep. and hys.
  3.        Zero temp.drift: +0.03%FS/ºC(≤100kPa) +0.02%FS/ºC(>100kPa)
  4.        FS temp.drift: +0.03%FS/ºC(≤100kPa) +0.02%FS/ºC(>100kPa)
  5.        Long-term stability: ≤+0.5%FS/year
  6.        Relay quantity: 1~5
  7.        Load:         240V/5A(AC)or 30V/5A(DC)
  8.        Relay life:    >100000 times
  9.        Indicato r:     4 digit 0.56 inch LED digit indicator;      display range: -1999~9999
4 digit 0.36 inch LED situation display indicator
  10.    Power supply: 220VAC±15% or 220VDC or 24VDC
  11.    Max. consumption: ≤3.5W
  12.    Environment temp.: -10ºC~60ºC Frequency: 0~300Hz
  13.    Media temp.:        -10ºC~80ºC Acceleration: ≤3×9.81ms-2
  14.    Storage temp.:      -40ºC~125ºC Impact: ≤10×9.81ms-2

  15.    Pressure port: stainless steel 1Cr18Ni9Ti        Diaphragm: stainless steel 316L
  16.    Electronic housing: aluminum-alloy Sealing: Viton or full-welded
  17.    Pressure port: Optional

Micro Sensor Co., Ltd, the leading manufacturer of piezo-resistive pressure sensors and transmitters in China, was founded by Sino-US joint venture in 1993. We are providing pressure sensing & measuring solutions to customers all over the world.

With Digital Wide-Temperature Compensation, Non-linearity Correction and Data-Collection by Bus Operation, we supply users OEM pressure sensors, pressure transmitters, level transmitters, measuring and controlling instruments, which have high quality and reliable performance in the local on-site environment.

Based on more than 20 years production experiences, Micro Sensor now have manufacturing capacity of 1.2 million pieces pressure sensors and 400 thousand pieces transmitters in one year. And we are also capable to satisfy the customized specification and designs according to clients' Specified requirements.

Quality is the life of company. Micro Sensor executes I S O 9 0 0 1 International Management System strictly to make sure every procedure qualified in our production. Furthermore, the main products for pressure sensors and transmitters, are also certificated by C E, R o H S, C B, U L and A T E X respectively for different global markets.

Micro Sensor now does business with customers more than 70 countries. More and more global friends know Micro Sensor and make win-win cooperation with us. Wherever you are, whenever you are, find Micro Sensor for any pressure sensing & measuring question. We are looking forward to supporting you with our best services!
