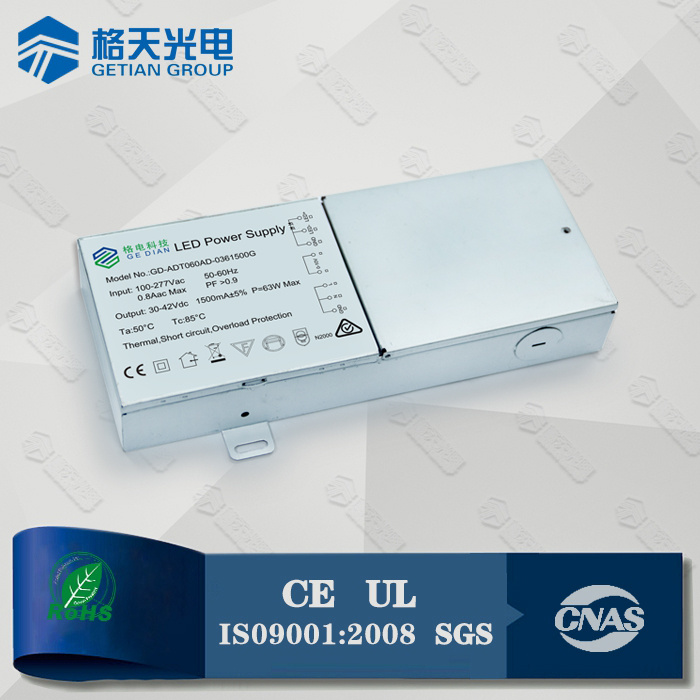

Rubycon Capacitor 63W 0-10V LED Dimmable Driver with 5 Years Warranty

Name: Rubycon Capacitor 63W 0-10V LED Dimmable Driver with 5 Years Warranty
Brand: all-electronics-online.com
SKU: 797684955
Availability: InStock
Rating: 4.3 (138 reviews)

Price:	US $ 13.5/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GD-ADT060AG
Current:	1000-1500mA
Voltage:	30-42VDC
Power:	63W
Input Volt:	100-277VAC
PF:	0.9
Effiency:	85%
Weight:	356g
Dimension:	3553128mm
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	100-277VAC
Pack Sealing Size:	3553128mm

Product Description

Rubycon Capacitor 63W 0-10V LED Dimmable Driver with 5 Years Warranty

Specification (0-10V Dimmable Driver Family)

Model	Input Volt	Output Volt	Output Current	Output Power	PF	Efficiency	Weight	Dimension (LWH)/mm
GD-ADT40AF	100-277V	30-42V	700-1000mA	30-40W	≥0.9	85%	240g	2853027
GD-ADT060AG	100-277V	30-42V	1000-1500mA	63W	≥0.9	85%	356g	3553128
GD-ADT060AD	100-277V	30-42V	700-1000mA	30-40W	≥0.9	85%	511g	22110636
GD-ADT060AD	100-277V	30-42V	1000-1600mA	40-67W	≥0.9	85%	511g	22110636
GD-ADT060AE	100-277V	30-42V	700-1000mA	30-40W	≥0.9	85%	271g	1938435
GD-ADT060AE	100-277V	30-42V	1000-1600mA	40-67W	≥0.9	85%	271g	1938435

Features:
1.Famous Brand: Silergy IC
2.3 & 5 & 7 years warranty.
3.BCM; High PF & High Efficiency & Non-flicker
4.With OVP & OSP
5.With soft start
6.Compatible with PWM.RX.0-10V (Extended function: DALI; WIFI)
7.Dimming range 2%-100% with smooth effect.
8.Class I design
9. 0-10V signal at DC/AC side optional (DC side suggested).
10. Different housing available.

Other LED Power Supply Available

Triac Dimmable Driver 8-40W

0-10V Dimmable Power Supply 30-70W

Tube Light Driver 8-40W

Anti-explosion LED Drivers 24-60W

DC-DC LED Driver 10-40W

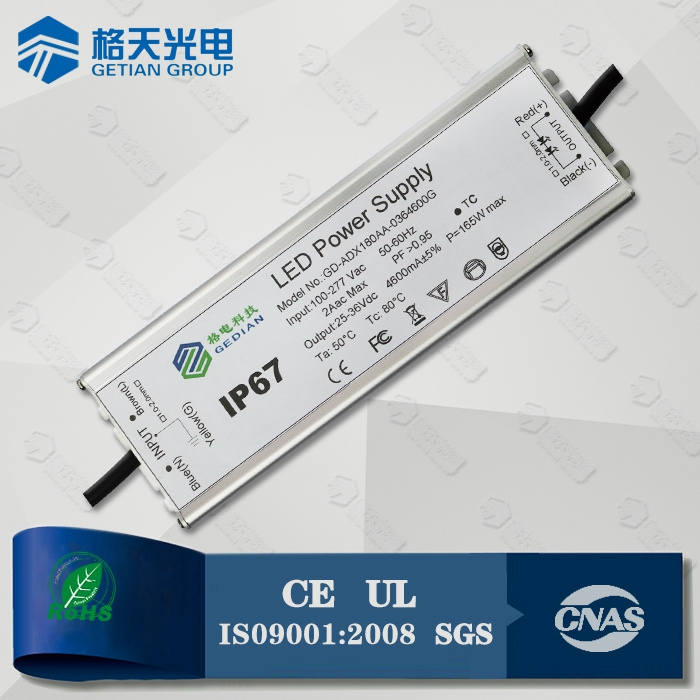

Waterproof IP67 LED Driver 70-150W

Contact Information

Shenzhen Getian Opto-electronics Co., Ltd. is a manufacturer specializing in LED components aiming to a global presence. Since established in 2005, GeTian has delivered the LED components products, technological innovations, and unparalleled customer trust level around the domestic and oversea marketing for over years.

Total investment is 50, 000, 000 yuan and production area is over 5, 000 square meters. Getian has 500 employees and more than 70 are R&D staffs. We have equipped full-automatic production machines for all the key manufacturing processes and full set testing machines. The annual capacity of high power LED is over 60, 000, 000PCS.

With more than 7 years' outstanding growth, Getian has become a group corporation which has high power LED, SMD LED and LED driver as the core business units. Shell fittings of LED, mold design and manufacturing are also well developed to have Getian be able to provide more comprehensive and professional service all over the world.

Getian insist that quality is one of core competence. All of the main products are listed with CE, RoHS, SGS certification and will pass in-house robust reliability testing before leaving factory. Besides, more than 12 patents have been obtained in LED design and manufacturing field. We successfully got ISO9001: 2008 certification and started running the ERP and BPC system in 2009. With all these outstanding performance, Getian achieved series of great honors, such as "Top 50 LED Manufacturer in China", "Hi-Tech. Enterprise", "Shenzhen Hi-Tech. Enterprise", and "Shanghai Expo Exhibition Enterprise", etc.

Warmly welcome all fields of friends to visit our company and negotiate trade.
