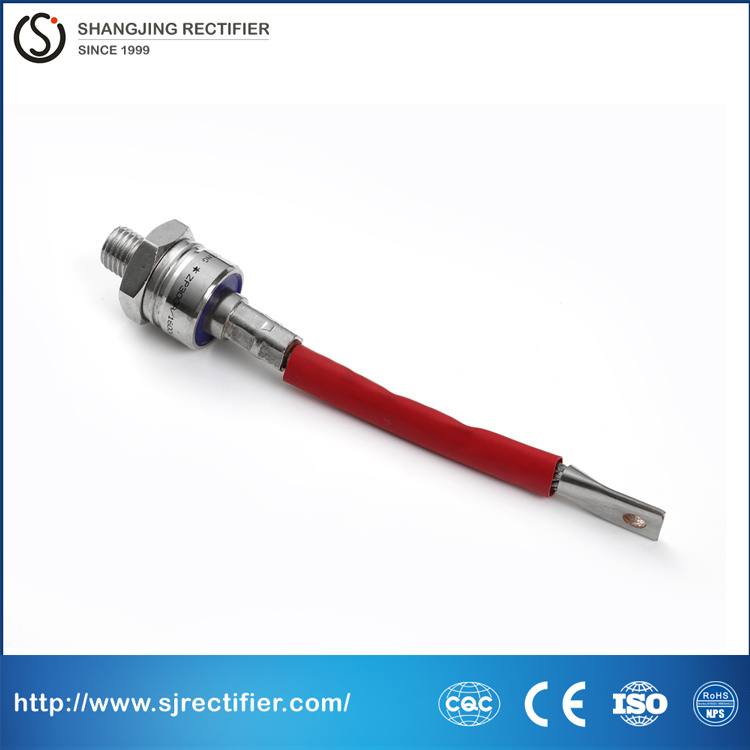

Russia Type Fast Recovery Diode (Stud Version)

Name: Russia Type Fast Recovery Diode (Stud Version)
Brand: all-electronics-online.com
SKU: 674443262
Availability: InStock
Rating: 4.8 (35 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DF161-200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Vrrm:	400-1400V
Irrm:	20mA
If(AV):	200A
Vfm:	1.75
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	Metal Ceramic Seal
Application:	Chopper,Inverter
Model:	Df161-200
Batch Number:	2016+
Brand:	Shangjing

Product Description

Features
High surge current capability
Stud cathode and stud anode version
Wide current range
Inch device version available

Typical Applications
Battery charges
Converters
Power supply
Machine tool controls
Welders
Motor controls
Lighting circuits

Type	VRRM	IRRM	IF(AV)	IF(RMS)	IFSM	VFM/IFM	trr	Tj	Rjc	M2	Wt	Outline
			Tc55° C		10ms
	V	mA	A	A	kA	V/A	μ s	° C	° C/W	kN	kg
DF212-10	400-1400	10	10	16	0.18	2.20/31	0.5	-40 ~ +150	2.50	0.9-1.1	0.006	RSD1
DF212-16	400-1400	10	16	25	0.25	2.20/50	0.5		1.60	0.9-1.1	0.006
DF212-20	400-1400	10	20	31	0.31	2.20/62	0.5		1.20	1.9-1.1	0.006
DF222-25	400-1400	15	25	39	0.40	2.20/78	0.5		1.00	1.4-1.8	0.015	RSD2
DF222-32	400-1400	15	32	50	0.50	2.20/98	0.5		0.80	1.4-1.8	0.015	RSD2
DF232-40	400-1400	20	40	62	0.60	2.20/125	0.7		0.60	5.0-6.2	0.027	RSD3
DF232-50	400-1400	20	50	78	0.75	2.20/157	0.7		0.50	5.0-6.2	0.027
DF232-63	400-1400	20	63	98	0.95	2.20/198	0.7		0.40	5.0-6.2	0.027
DF141-63	400-1400	50	63	100	2.0	2.13/198	1.0, 2.0		0.45	6-10	0.090	RSD4
DF141-80	400-1400	30	80	125	2.5	1.48/250	4.8		0.45	6-10	0.090	RSD4
DF151-125	400-1400	30	125	200	4.0	1.94/390	2.0		0.25	10-20	0.165	RSD5
DF161-160	400-1400	20	160	250	3.5	2.35/500	3.2, 4.0		0.25	20-30	0.250	RSD6
DF161-200	400-1400	20	200	300	4.3	1.75/528	3.2, 4.0		0.25	20-30	0.250
DF161-250	400-1400	30	250	390	4.5	2.61/785	3.2, 4.0		0.15	20-30	0.250
DF171-320	400-1400	30	320	500	5.3	2.03/1000	5.0, 6.5		0.15	25-35	0.465	RSD7

China Shangjing Rectifier Co., Ltd. Was co-founded by China DELIXI Group, Shanghai Rectifier Co., Ltd. And Jingtai Electric Co., Ltd. In 1999. As one of the most professional manufacturers of power semiconductors and silicon rectifying whole set equipments, as well as the manufacturer for timer switch ( programmable timer switch, digital timer switch mechanical timer switch ) and circuit breaker ( mini circuit breaker, DPN miniatire circuit breaker, DPNL residual current circuit breaker etc) our company has been devoted to provide the high quality electronicsr products for our customers all over the world.

Shangjing Rectifier Co., Ltd. is located in Liushi Town which is well known as the "Capital of Electric City" in China. We are very close to the Wenzhou Airport and the deep-water sea port, which makes it very easy for us to reach our customers from the whole world.

Our company has been certified by China Industrial Department and we have got CE certificate. Furthermore, our products are compliant to the latest RoHS directions.

We have brought advanced technologies and equipment from abroad and kept improving our management and products quality. We stick the spirit of "Chasing for high quality and Servicing our clients with all our heart and credibility", we have gained a lot of honors like "AAA class China quality & credibility company", "member of China Electric Industry Association", etc. We have been exporting our products to Europe, South and North America, Middle East, Africa and earned a lot of good feedback.

We hope our high quality products and service will be bringing successful future to all our customers.
