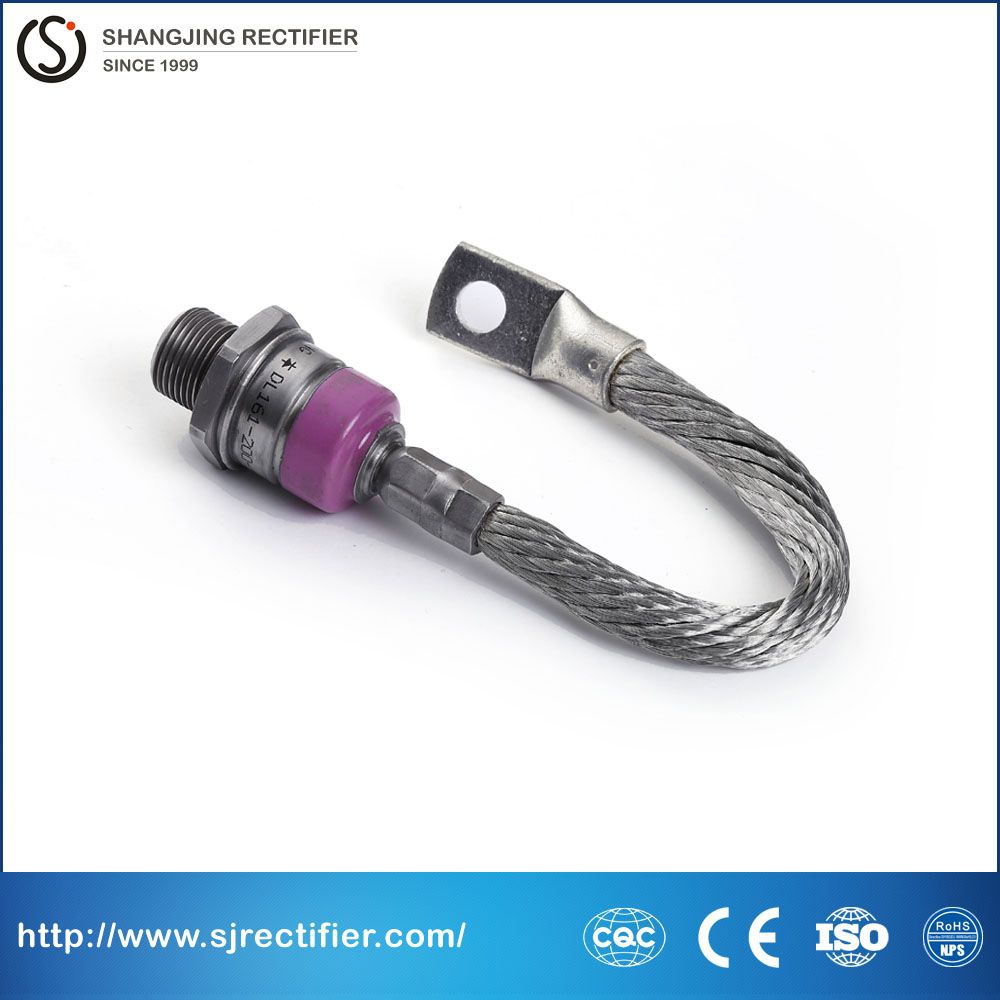

Russian Avalanche Rectifier Diode for Machine Tool Controls

Name: Russian Avalanche Rectifier Diode for Machine Tool Controls
Brand: all-electronics-online.com
SKU: 674443922
Availability: InStock
Rating: 4.7 (139 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DL161-200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Vrrm:	400-1600V
Irrm:	25mA
Vfm:	1.25V
Ifm:	600A
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	Metal Ceramic Seal
Application:	Machine Tool Controls, Converters, Power Supplies
Model:	Dl161-200
Batch Number:	2016+
Brand:	Shangjing

Product Description

Features
High surge current capability
Stud cathode and stud anode version
Wide current range
Inch device version available

Typical Applications
Battery charges
Converters
Power supply
Machine tool controls
Welders
Motor controls
Lighting circuits

Type	V_RRM	I_RRM	I_F(AV)	I_F(RMS)	I_FSM	I2t	V_FM/I_FM	V_TO	PRSM	r_T	T_j	R_jc	M2	Wt	Outline
			Tc55° C		10ms				100mks
	V	mA	A	A	kA	kA2S	V/A	V	kW	mΩ	° C	° C/W	kN	kg
DL212-10	400-1600	6	10	15	0.25	0.31	1.25/31	0.90	2.5	17.5	-40 ~ +150	2.70	0.9-1.1	0.006	RSD1
DL212-16	400-1600	6	16	25	0.27	0.36	1.25/50	0.90	2.5	10.5		1.75	0.9-1.1	0.006
DL212-25	400-1600	6	25	39	0.34	0.58	1.25/78	0.90	2.5	6.10		1.10	0.9-1.1	0.006
DL222-32	400-1600	8	32	50	0.46	1.06	1.25/100	0.85	3.0	5.00		0.95	1.4-1.8	0.012	RSD2
DL222-40	400-1600	8	40	62	0.55	1.51	1.25/125	0.85	3.0	4.00		0.80	1.4-1.8	0.012	RSD2
DL232-50	400-1600	10	50	78	12	72	1.25/157	0.83	5.0	3.10		0.60	5.0-6.2	0.027	RSD3
DL232-63	400-1600	10	63	98	14	98	1.25/198	0.83	5.0	2.80		0.50	5.0-6.2	0.027
DL232-80	400-1600	10	80	125	15	11.25	1.25/250	0.83	5.0	2.10		0.40	5.0-6.2	0.027
DL141-100	400-1600	15	100	150	2.2	24	1.25/314	0.95	25	1.60		0.40	6-10	0.090	RSD4
DL151-160	400-1600	15	150	220	4.5	45	1.25/392	0.95	25	1.30		0.30	10-20	0.165	RSD5
DL161-200	400-1600	25	200	300	5.5	100	1.25/600	0.90	16	0.85		0.25	20-30	0.265	RSD6
DL161-250	400-1600	25	250	375	6.4	150	1.25/750	0.90	16	0.75		0.15	20-30	0.265	RSD6
DL171-320	400-1600	25	320	450	7.9	200	1.25/900	0.90	16	0.65		0.13	20-35	0.460	RSD7
DL171-400	400-1600	25	400	600	9.25	280	1.25/1200	0.90	16	0.65		0.095	20-35	0.460	RSD7

China Shangjing Rectifier Co., Ltd. Was co-founded by China DELIXI Group, Shanghai Rectifier Co., Ltd. And Jingtai Electric Co., Ltd. In 1999. As one of the most professional manufacturers of power semiconductors and silicon rectifying whole set equipments, as well as the manufacturer for timer switch ( programmable timer switch, digital timer switch mechanical timer switch ) and circuit breaker ( mini circuit breaker, DPN miniatire circuit breaker, DPNL residual current circuit breaker etc) our company has been devoted to provide the high quality electronicsr products for our customers all over the world.

Shangjing Rectifier Co., Ltd. is located in Liushi Town which is well known as the "Capital of Electric City" in China. We are very close to the Wenzhou Airport and the deep-water sea port, which makes it very easy for us to reach our customers from the whole world.

Our company has been certified by China Industrial Department and we have got CE certificate. Furthermore, our products are compliant to the latest RoHS directions.

We have brought advanced technologies and equipment from abroad and kept improving our management and products quality. We stick the spirit of "Chasing for high quality and Servicing our clients with all our heart and credibility", we have gained a lot of honors like "AAA class China quality & credibility company", "member of China Electric Industry Association", etc. We have been exporting our products to Europe, South and North America, Middle East, Africa and earned a lot of good feedback.

We hope our high quality products and service will be bringing successful future to all our customers.
