RV AWG 12-10 4-6mm2 Electrical Connectors Insulated Copper Cable Lug Ring Terminal

Name: RV AWG 12-10 4-6mm2 Electrical Connectors Insulated Copper Cable Lug Ring Terminal
Brand: all-electronics-online.com
SKU: 767766215
Availability: InStock
Rating: 5 (111 reviews)

Price:	US $ 0.01/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Feature:	Coated with Tin
Type:	Single Hole Terminals
Material:	Copper
Application:	Transmission of Electrical Signals
Brand:	Jwl

Product Description

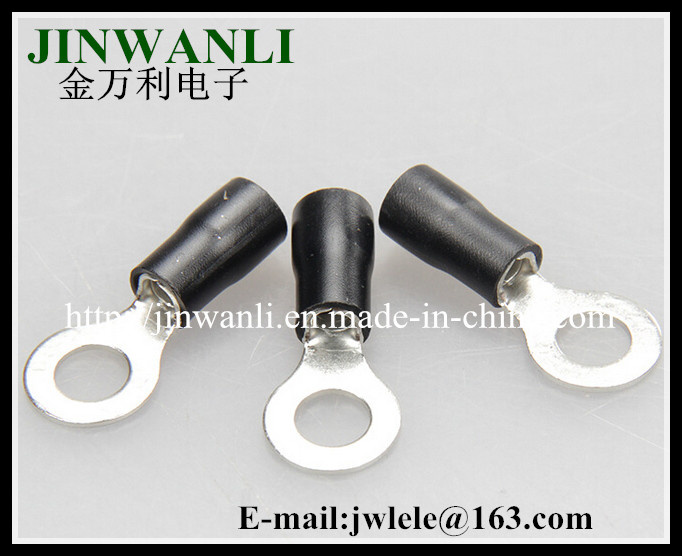

Insulated Ring Terminal

Size: RV1.25-3 ~ RV5.5-12
Material: high purity copper PVC Insulation
Tin plating:Corrosion Resistance

Certificate:ISO9001 SGS CE CQC battery terminal cover
Packaging Detail: 1000PCS per polybag, each bag per paper box

Thickness:0.7mm 0.8mm 1.0mm plastic terminal covers
Color:Red Blue Black Yellow

Cable size: 0.5~1.5mm2
(A. W. G22~16) Max
Current: Imax=19A
Temperature: 75°

Data Sheet of coated tin ring terminal
Lead section: 0.5-1.5mm2(22-16) Max current: =9A

Type	Number of ANSI bolt	Diameter of bolt mouth d2	B(mm)	L(mm)	F(mm)	H(mm)	D(mm)	Color
RV1.25-3	#4	3.2mm	5.7	21.2	6.5	10.0	4.3	Red
RV1.25-3.5	#6	3.7mm	5.7	21.2	6.5
RV1.25-3.5	#6	3.7mm	6.4	21.2	6.5
RV1.25-3.5	#8	4.3mm	6.4	21.2	6.5
RV1.25-4	#8	4.3mm	7.2	21.2	6.5
RV1.25-4	#8	4.3mm	8.1	21.2	6.5
RV1.25-5	#10	5.3mm	8.1	21.2	6.5
RV1.25-6	1/4	5.3mm	9.5	21.2	6.5
RV1.25-8	5/16	6.5mm	9.5	21.2	6.5
RV1.25-10	3/8	6.5mm	12.0	21.2	11.0

Lead section: 1.5-2.5mm2(16-14) Max current: =27A

Type	Number of ANSI bolt	Diameter of bolt mouth d2	B(mm)	L(mm)	F(mm)	H(mm)	D(mm)	Color
RV2-3	#4	3.2mm	6.6	17.8	4.3	10.0	4.9	Blue
RV2-3.5	#6	3.7mm	6.6	17.8	4.3
RV2-3.5	#6	3.7mm	6.6	21.0	7.0
RV2-3.5	#8	4.3mm	8.5	22.5	7.75
RV2-4	#8	4.3mm	6.6	21.0	7.0
RV2-4	#8	4.3mm	8.5	22.5	7.75
RV2-5	#10	5.3mm	8.5	22.5	7.75
RV2-5	#10	5.3mm	9.5	22.5	7.25
RV2-6	1/4	6.5mm	12.0	27.6	11.0
RV2-8	5/16	8.4mm	12.0	27.6	11.0
RV2-8	3/8	10.5mm	13.6	30.2	13.9

Lead section: 2.5-4mm2(14-12) Max current: =37A

Type	Number of ANSI bolt	Diameter of bolt mouth d2	B(mm)	L(mm)	F(mm)	H(mm)	D(mm)	Color
RV3.5-4	#8	4.3mm	8.0	24.5	7.7	12.5	6.2	Black
RV3.5-5	#10	5.3mm	8.0	24.6	7.7
RVL3.5-5	#10	5.3mm	12.0	27.9	7.7
RV3.5-6	1/4	6.5mm	12.0	27.9	7.7

Lead section: 4-6mm2(12-10) Max current: =48A

Type	Number of ANSI bolt	Diameter of bolt mouth d2	B(mm)	L(mm)	F(mm)	H(mm)	D(mm)	Color
RV5.5-3.5	#6	3.7mm	7.2	21.4	5.9	12.5	6.7	Yellow
RV5.5-4	#8	4.3mm	7.2	21.5	5.9
RV5.5-4	#8	4.3mm	9.5	25.5	8.3
RV5.5-5	#10	5.3mm	9.5	25.5	8.3
RV5.5-6	1/4	6.5mm	12.0	31.5	13.0
RV5.5-8	5/16	8.4mm	15.0	33.7	13.0
RV5.5-10	3/8	10.5mm	15.0	33.7	13.7
RV5.5-12	1/2	13.0mm	19.2	38.1	16.0
