S-145W Single AC DC LED Switching Mode Power Supply

S-145W Single AC DC LED Switching Mode Power Supply
Price: US $ 9.3-9.8/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: S-145W
OEM, ODM: Accepted
Power: 145W
Type: Automatic Select
Color: Grey
Output Voltage: 5V/12V/15V/24V
Output Type: Single
Warranty: 2 Years
Output Power: 101 - 200W
Input Voltage: Full Range
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Voltage Regulating Mode: Frequency Modulation Type
Power Supplying System: Level 1 Power Distribution Equipment
Certification: ISO
Brand: Jyins

Product Description

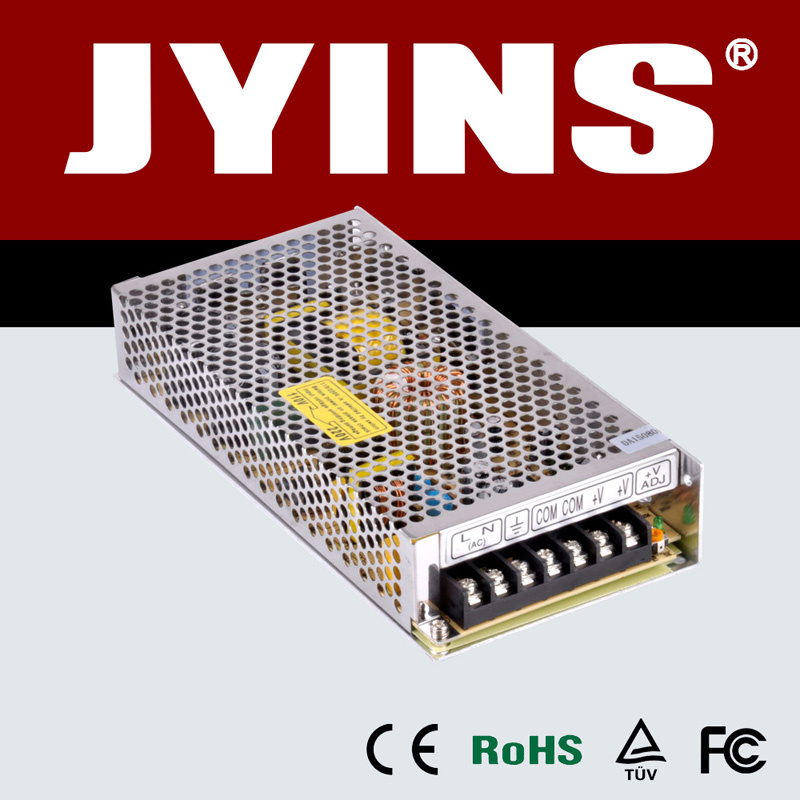

S-145W Single AC DC Led Switching Mode Power Supply
Technical Parameters
MODELS-145-5S-145-7.5S-145-12S-145-24
OUTPUTDC VOLTAGE5V7.5V12V24V
VOLTAGE TOLERANCE±2%±1%±1%±1%
RATED CURRENT25A18A12A6A
CURRENTRANGE0-25A0-18A0-12A0-6A
RATED POWER125W135W144W144W
RIPPLE &NOISE(MAX)100mVp-p100mVp-p100mVp-p100mVp-p
DC VOLTAGEFRE
QUENCYRANGE
4.75-5.5V6-8V10.8-13.2V21-28V
SETUP,RISE,HOLD TIME100ms,50ms,20ms
INPUTVOLTAGERANGE88~132 VAC/180~264VACselected
47~63 Hz;255~370VDC
AC CURRENT3.2A/115 V 1.6A/ 230 V
EFFICIENCY78%81%81%84%
INRUSH CURRENTCold start 35A/115V 60A/230V
Product Description

WHY CHOOSE US
 1. Our company is a professional manufacture and OEM.
2. Low price and high reliability
3.Hight efficiency and low operation temperature
4.Soft-start current can reduce the AC input impact effecticly
With Short-circuit and owwerload protection
5.100% full-load burning test
6.Our products obtain CE and ISO9001 Certificate and according to IEC 521


Yueqing Jyins Electric Technology Co., Ltd. Founded in 1990, is located in the largest manufacturing base of low-voltage electric equipment of China--- Liushi, which is called "the Electric Device Metropolis of China". We are one of leading enterprises specialized in designing, manufacturing, developing and exporting all kinds of high and low voltage electric appliances, such as temperature controller (indicator), thermocouple, shunt, thermocouple wire, thermal resistor, current/voltage meter(panel meter), current divider, gas meters, water meter, KWH meter, automatic nozzle, contactor, relay, circuit breaker, transformer, thermal relays, pushbutton, lightning arrester, dropout fuse, switch, pneumatic, cylinder, cable accessories, power instrument, lighting, doorbell etc.

We have employed 500 workers and our factory covers 4, 0000 square meters area. with total assets reaching 5 million US dollars, we own modern production lines and high quality controlling equipments with scientific administration, professional engineers, highly trained technicians and skilled workers. Consequently, our products are of both high quality and high ratio of performance and are widely exported to worldwide markets with good reputation and credit. Now we are selling products to North and South America, Middle East, Southeast Asia, Western Europe, Africa, Hong Kong, Taiwan area and etc...

"Quality first and user uppermost" is one of our principles. We always strive for best in quality and after-sales services to satisfy customers' demands. We sincerely welcome customers from worldwide to share our good quality products and services. with ceaseless efforts and developments in design and technology, we will surely do better and better. High praise among the customers.

We sincerely welcome our friends at home and aboard to guide us and then develop together.
