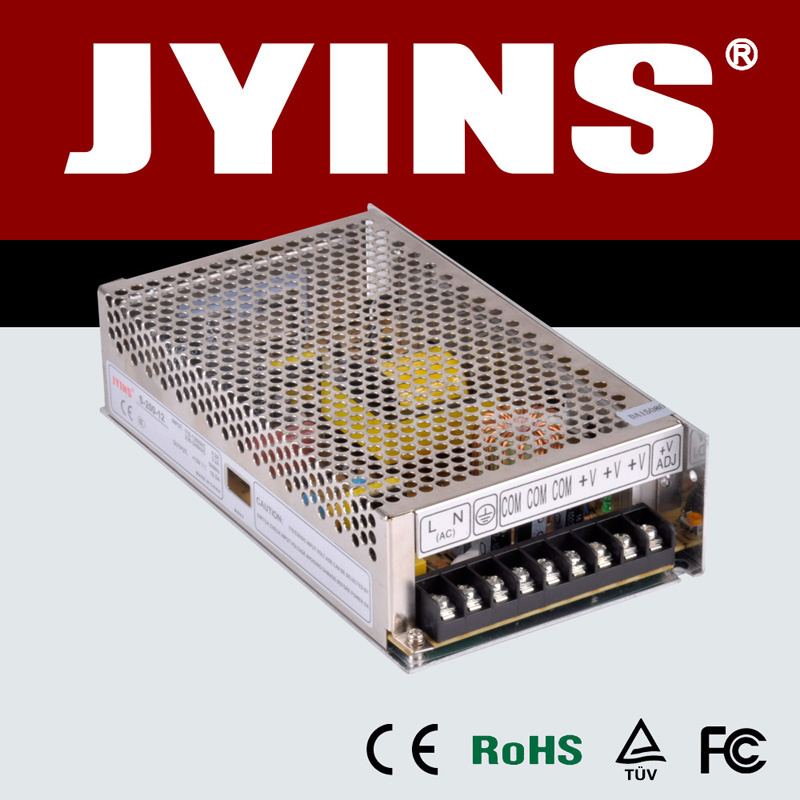

S-200W Single AC DC LED Switching Mode Power Supply

S-200W Single AC DC LED Switching Mode Power Supply
Price: US $ 10.9-11.5/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: S-200W
OEM, ODM: Accepted
Power: 200W
Type: Automatic Select
Color: Grey
Output Voltage: 5V/12V/15V/24V
Output Type: Single
Warranty: 2 Years
Output Power: 101 - 200W
Input Voltage: Full Range
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Voltage Regulating Mode: Frequency Modulation Type
Power Supplying System: Level 1 Power Distribution Equipment
Certification: ISO
Brand: Jyins

Product Description

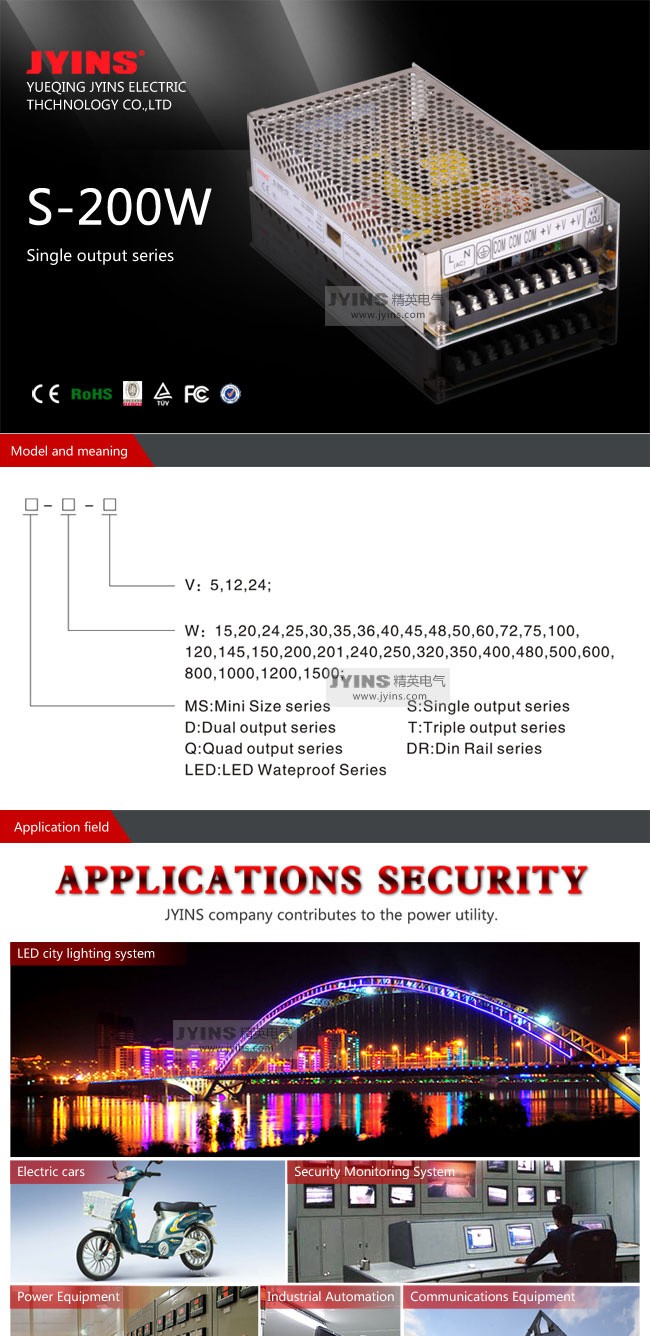

S-200W Single AC DC Led Switching Mode Power Supply
Technical Parameters
ModelS-200-5S-200-12S-200-15S-200-24
DC output voltage5V12V15V24V
Output voltage rang(Note:2)+/-2%+/-1%+/-1%+/-1%
Rated output current40A16.5A13.3A8.5A
Output current range0-40A0-16.5A0-13.3A0-8.5A
Wave and noise(Note:3)100mVp-p100mVp-p100mVp-p100mVp-p
Inlet stability(Note:4)+/0.5%+/0.5%+/0.3%+/0.2%
Load stability(Note:5)+/0.5%+/0.5%+/0.3%+/0.3%
DC output power200W200W200W200W
Efficiency75%79.50%80%81.50%
Adjustable range for DC voltage4.75-5.5V10.8-13.2V13.5-16.5V21.6-26.4V
AC input voltage range180~264VAC47~63Hz;
255~370VDC
Input current2.2A/230V
AC inrush currentCole-start current:36A/230V
Leakage current<0.5mA/240VAC
Overload proctection105%~150%Type:pulsing hiccup shutdown Reset:auto
recovery
Over-voltage proctection115%~135%
High-temperature and protection115%~135%
Temperature coefficient+/-0.03%(0~50)
Setup, rise,hold up time200ms,100ms,30ms
Vibration10-500Hz,,2G10min,/cycle, periodfor 60min,Each axes
Withstand voltageInput and output interal:1.5KvAC,Input ad enclosure:1.5KvAC
Output and enclosure:0.5KvAC
Product Description

WHY CHOOSE US
 1. Our company is a professional manufacture and OEM.
2. Low price and high reliability
3.Hight efficiency and low operation temperature

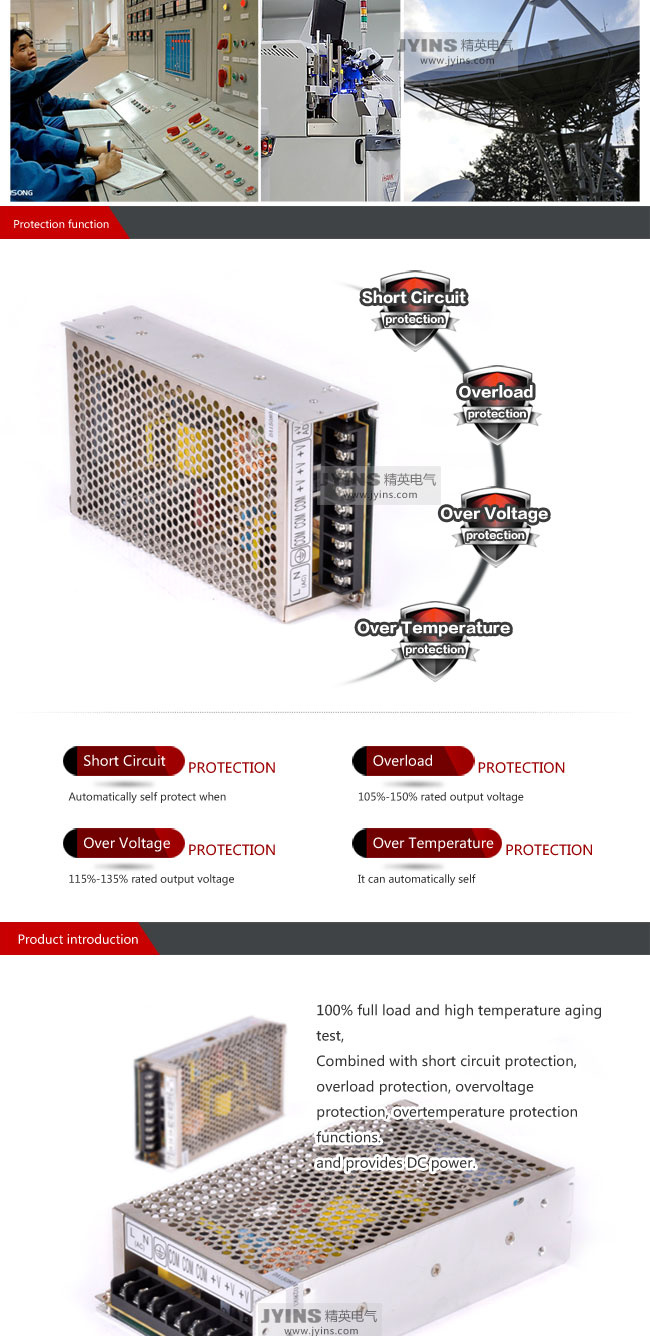

4.Soft-start current can reduce the AC input impact effecticly
With Short-circuit and owwerload protection
5.100% full-load burning test
6.Our products obtain CE and ISO9001 Certificate and according to IEC 521


Yueqing Jyins Electric Technology Co., Ltd. Founded in 1990, is located in the largest manufacturing base of low-voltage electric equipment of China--- Liushi, which is called "the Electric Device Metropolis of China". We are one of leading enterprises specialized in designing, manufacturing, developing and exporting all kinds of high and low voltage electric appliances, such as temperature controller (indicator), thermocouple, shunt, thermocouple wire, thermal resistor, current/voltage meter(panel meter), current divider, gas meters, water meter, KWH meter, automatic nozzle, contactor, relay, circuit breaker, transformer, thermal relays, pushbutton, lightning arrester, dropout fuse, switch, pneumatic, cylinder, cable accessories, power instrument, lighting, doorbell etc.

We have employed 500 workers and our factory covers 4, 0000 square meters area. with total assets reaching 5 million US dollars, we own modern production lines and high quality controlling equipments with scientific administration, professional engineers, highly trained technicians and skilled workers. Consequently, our products are of both high quality and high ratio of performance and are widely exported to worldwide markets with good reputation and credit. Now we are selling products to North and South America, Middle East, Southeast Asia, Western Europe, Africa, Hong Kong, Taiwan area and etc...

"Quality first and user uppermost" is one of our principles. We always strive for best in quality and after-sales services to satisfy customers' demands. We sincerely welcome customers from worldwide to share our good quality products and services. with ceaseless efforts and developments in design and technology, we will surely do better and better. High praise among the customers.

We sincerely welcome our friends at home and aboard to guide us and then develop together.
