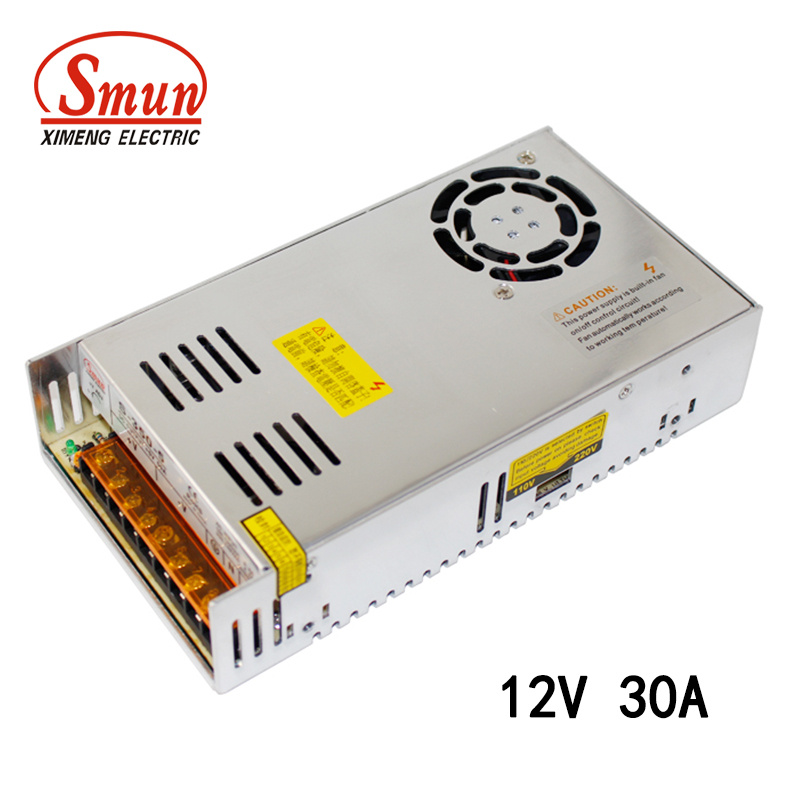

| Prod Model: |
S-350-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
110V and 220V with Select Switch |
| Output: |
360W |
| DC Output: |
12VDC 30A |
| Size: |
215*115*50mm |
| Weight: |
1kg |
| Package: |
12PCS/12kg |
| DC Adjustable: |
10% |
| Safety Standard: |
En60950 UL60950 GB4943 |
| Customized: |
Available |
| Other: |
Factory |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
301 - 400W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
RoHS |
| Input Voltage: |
110VAC/220VAC |
| Brand: |
Smun |
Product Description
High Efficiency, High Reliability, Low Cost
AC Input Range: 90~132V/176~264Vac Selected By Switch
100% Full Load Burn-In Test
Protections: Short Circuit / Over Load/Over Voltage
LED Indicator For Power On
Cooling By Build In DC Fan
1 Year Warranty
Dimension: 215*110*50mm
| MODEL | S-350-5 | S-350-7.5 | S-350-12 | S-350-15 | S-350-24 | S-350-48 |
| OUTPUT | DC VOLTAGE | 5V | 7.5V | 12V | 15V | 24V | 48V |
| VOLTAGE TOLERANCE | ± 2% | ± 2% | ± 2% | ± 2% | ± 1% | ± 1% |
| RATED CURRENT | 50A | 40A | 30A | 23.2A | 14.6A | 7.3A |
| CURRENT RANGE | 0-50A | 0-40A | 0-30A | 0-23.2A | 0-14.6A | 0-7.3A |
| RATED POWER | 250W | 300W | 360W | 348.3W | 350.4W | 350.4W |
| RIPPLE & NOISE(MAX) | 100mVp-p | 100mVp-p | 100mVp-p | 150mVp-p | 150mVp-p | 240mVp-p |
DC VOLTAGE
ADJUSTMENT RANGE | ± 10% | ± 10% | ± 10% | ± 10% | ± 10% | ± 10% |
| SETUP, RISE, HOLD UP TIME | 600ms, 30ms, 20ms |
| INPUT | VOLTAGE RANGE | 85~130/170~264VAC Selected by Switch |
| AC CURRENT | 6.5A/115VAC 4A/230VAC |
| EFFICIENCY | 74% | 79% | 82% | 82% | 83% | 86% |
| INRUSH CURRENT | Cold start 50A |
| LEAKAGE CURRENT | < 3.5mA/240VAC |
| PROTECTION | OVERLOAD PROTECTION | 110%~150% Shut down O/P voltage, re-power on to recover |
| OVER-VOLTAGE PROTECTION | 115%-135% |
| HIGH TEMPERATURE PROTECTON | 115%-135% |
| ENVIRONMENT | WORKING TEMP. & HUMIDITY | -10C~+50C; 20%~90 %RH |
| STORAGE TEMP. & HUMIDITY | -20C~+85C; 10%~95 %RH |
| VIBRATION | 10~500Hz, 2G 10min. /1cycle, period for 60min, each along X. Y. Z axes |
| SAFETY | WITHSTAND VOLTAGE | I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC |
| ISOLATION RESISTANGE | I/P-O/P, I/P-FG, O/P-FG: 500VDC/100MΩ |
| STANDARDS | SAFETY STANDARDS | Design refer to UL1950, EN60950 |
| EMC STANDARDS | Design refer to EN55022, EN55024, EN61000 |
| OTHERS | WEIGHT | 0.9Kg |
| PACKING | 20pcs/19.7Kg |
| NOTE | 1. Tolerance: Includes set up tolerance, line regulation and load regulation.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire teminated with a 0.1μ f & 47μ f parallel capacitor. |
Zhejiang Ximeng Electronic Technology Co., Ltd. specialized in designing R&D production and sale. We have Independent import and export rights. The main products are switching power supply, LED driver power supply, AC/DC adapter, Electrical plug&sockets, Indicator lamp, terminal blocks, cable glands and related wiring accessories, Push button switches, and so on. All products are exported by our company YUEQING XIMENG IMP&EXP. Co., Ltd.
Our company is a high-tech company specialized in designing. R&D. Production and sale, the products Switching Power Supply are with the characteristics of the low price, high efficiency, high reliability, long lifetime and so on. Our products are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting projects, communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded product to replace traditional controlling transformer. The design of this series of products is in accordance with such international standards as American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD. Relying on high-quality imported components, advanced production techniques and perfect testing equipment, we create high-quality XIMENG products. XIMENG products sell well in domestic markets and in Europe and Southeast Asia. Our company focuses on innovating science and technology, wining a reputation with quality, and pursuing development with sincerity. We always update our equipment and create new products constantly, striving to follow the core mind of Science and Technology to improve life and supply wide customers with sincerity, high-quality products and highly efficient service. In order to thanks to the long-term support and the cooperation of customers at home and abroad, as well as develop new business field, our company warmly welcomes all the customers to come for instruction and discuss cooperation. Let us develop together and create our prosperous future!
