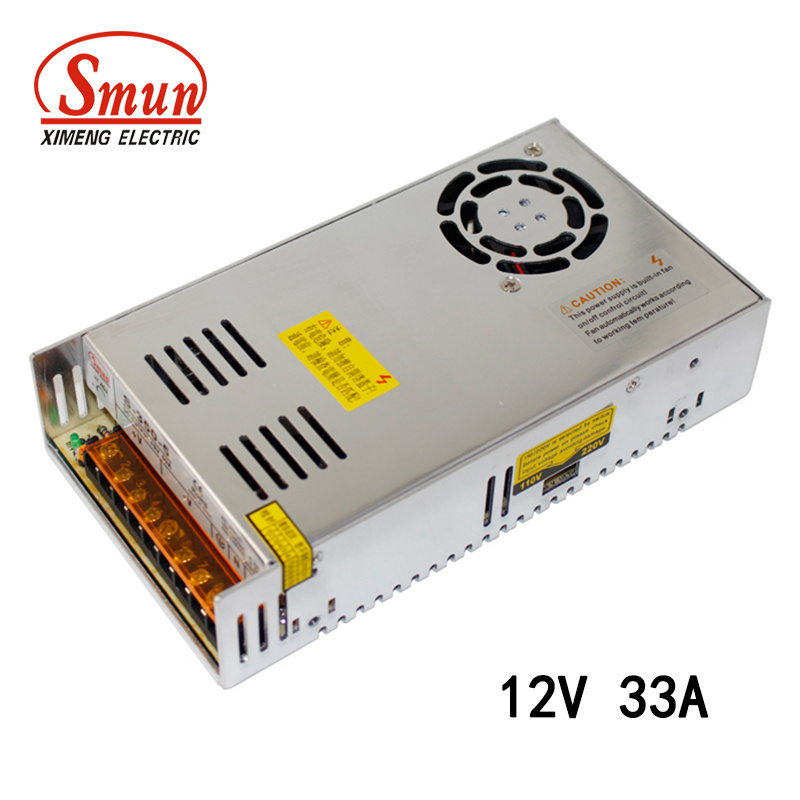

| Prod Model: |
S-400-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
S-400-12 |
| Power: |
400W |
| Output: |
12VDC 33A |
| Input: |
85-260VAC 240-370VDC |
| Size: |
215*115*50mm |
| Weight: |
1.2kg |
| Package: |
16PCS/20kg |
| Safety Standard: |
En60950 UL60950 GB4943 |
| DC Adjustable: |
10% |
| OEM: |
Available |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
301 - 400W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Input Voltage: |
180-264VAC/47-63Hz/240-370VDC |
| Certification: |
CE CCC RoHS |
| Brand: |
Smun |
Product Description
High Efficiency, High Reliability, Low Cost
AC Input Range: 90~132V/176~264VAC Selected By Switch
100% Full Load Burn-In Test
Protections: Short Circuit / Over Load/Over Voltage
LED Indicator For Power On
Cooling By Build In DC Fan
Approvals: CE RoHS
1 Year Warranty
Dimension: 215*110*50mm
| MODEL | S-400-5 | S-400-12 | S-400-15 | S-400-24 | S-400-48 |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 48V |
| VOLTAGE TOLERANCE | ± 2% | ± 2% | ± 2% | ± 1% | ± 1% |
| RATED CURRENT | 60A | 33A | 27A | 17A | 8.3A |
| CURRENT RANGE | 0-60A | 0-33A | 0-27A | 0-17A | 0-8.3A |
| RATED POWER | 292W | 380W | 400W | 400W | 400W |
| RIPPLE & NOISE(MAX) | 180mVp-p | 180mVp-p | 180mVp-p | 180mVp-p | 240mVp-p |
DC VOLTAGE
ADJUSTMENT RANGE | ± 10% | ± 10% | ± 10% | ± 10% | ± 10% |
| SETUP, RISE, HOLD UP TIME | 600ms, 30ms, 20ms |
| INPUT | VOLTAGE RANGE | 85~130/170~264VAC Selected by Switch |
| AC CURRENT | 6.5A/115V 4A/230V |
| EFFICIENCY | 74% | 82% | 82% | 83% | 86% |
| INRUSH CURRENT | Cold start 25A/115V 50A/230V |
| LEAKAGE CURRENT | < 3.5mA/240VAC |
| PROTECTION | OVERLOAD PROTECTION | 110%~150% Shut down O/P voltage, re-power on to recover |
| OVER-VOLTAGE PROTECTION | 115%-135% |
| HIGH TEMPERATURE PROTECTON | 115%-135% |
| ENVIRONMENT | WORKING TEMP. & HUMIDITY | -10C~+50C; 20%~90 %RH |
| STORAGE TEMP. & HUMIDITY | -20C~+85C; 10%~95 %RH |
| VIBRATION | 10~500Hz, 2G 10min. /1cycle, period for 60min, each along X. Y. Z axes |
| SAFETY | WITHSTAND VOLTAGE | I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC |
| ISOLATION RESISTANGE | I/P-O/P, I/P-FG, O/P-FG: 500VDC/100MΩ |
| STANDARDS | SAFETY STANDARDS | Design refer to UL1950, EN60950 |
| EMC STANDARDS | Design refer to EN55022, EN55024, EN61000 |
| OTHERS | WEIGHT | 0.9Kg |
| PACKING | 20pcs/19.7Kg |
| NOTE | 1. Tolerance: Includes set up tolerance, line regulation and load regulation.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire teminated with a 0.1μ f & 47μ f parallel capacitor. |
