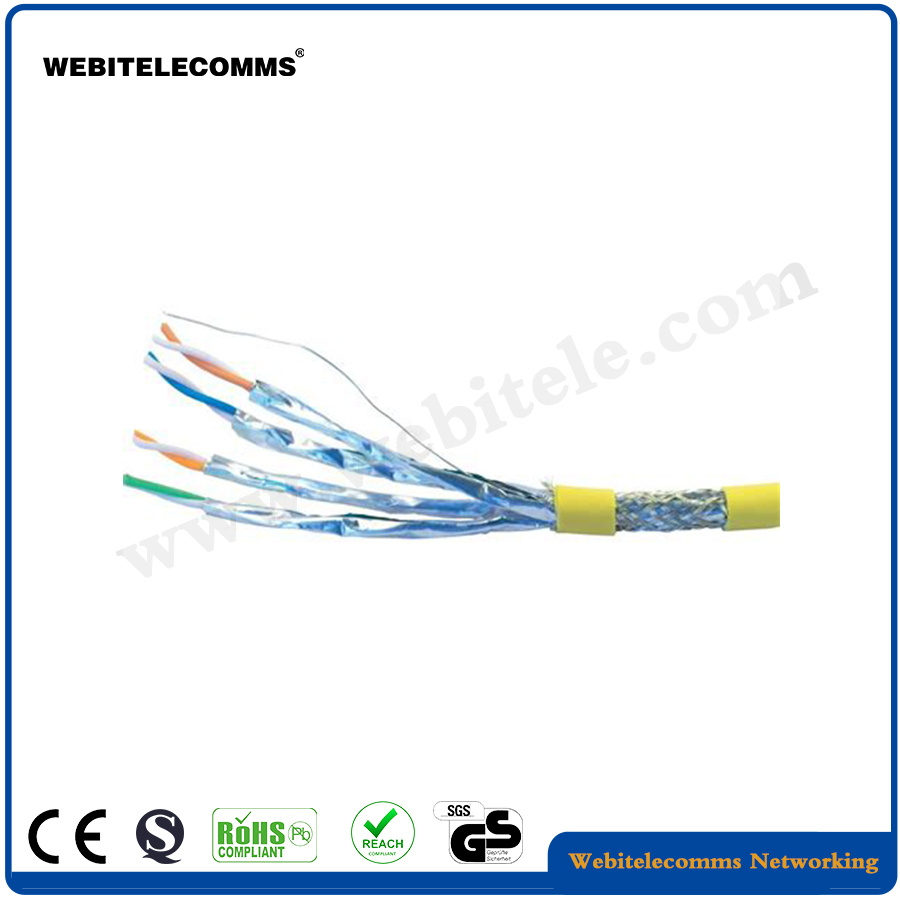

S/FTP Shielded Cat 7A Twisted Pair Installation Cable, Cat7a S/FTP Data /LAN Cable

Name: S/FTP Shielded Cat 7A Twisted Pair Installation Cable, Cat7a S/FTP Data /LAN Cable
Brand: all-electronics-online.com
SKU: 692813552
Availability: InStock
Rating: 5 (147 reviews)

Price:	US $ 0.01/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	30000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	WB-LC-73
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor:	Solid Bare Copper
AWG:	23
Insulation:	PE(Skin-Foam-Skin)
Application:	LAN Cable
Conductor Material:	Copper
Certification:	CCC
Cover Material:	Cmx/Cm/Cmr/LSZH/LDPE
Type:	Cat7a
Model:	Cat7a S/FTP Data Cable
Brand:	Webit or OEM

Product Description

Appliacation

1. Suitable for structured premised cabling;

2. For transmission of digital and analogue voice and data signals

3. Especially suitable for all Class FA applictions;

4. ISDN, Ethernet 10 Base-T, Fast Ethernet 100 Base-T, Gigabit Ethernet 1000Base-T, 10G Base T(IEEE802.3)
5. Token Ring4/16 Mbit/s, TP-PMD/TP/DDI 125bit/s, ATM155Mbit/s(IEEE 802.5)

Electronic Characteristics

Impedance: 4-100MHz 100± 15(ohms).

100-200MHz 100± 22(ohms).

200-1000MHz 100± 32(ohms).

Max. Conductor DC Resistance 20º C: 8.4(ohms/100m)

Resistance unbalance(%): Max2.5

Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)

Transfer Impendance: Max 10 mohms/m@100MHz.

Coupling Attenuation: Min 80 Db.

Installation temperture: 0-50º C.

Operation temerture: -20~60º C

Assortment	Shieded	Describe
Cat 7A Installation cable	S/FTP Shielded	S/FTP Shielded Cat 7A Twisted Pair Installation cable

Conductor
Conductor	Insulation	Qty of Conductor	Color code	Indiviual pair shied	Overall shield	Drain wire
Solid Bare Copper 23AWG	PE(skin-Foam-Skin)	8,twisted in 4 pairs	blue-white, orange-white, green-white, brown-white	AL-Foil, 100%coverage,foil face out	Tinned copper braid	None

	Outer jacket information
Item no	Outer jacket	overall diameter(mm)
D285-P	CMX	8.3±0.3
D285-C	CM	8.3±0.3
D285-R	CMR	8.3±0.3
D285-L	LSZH	8.3±0.3
D285-E	LDPE	8.3±0.3


Certifications

==Our Services==
Sample Service: We will collect some sample fees, will refund after you place order.

Package design support: We have brand team for your customized design.

==Company Information==
WEBITELECOMMS was established in 2003 and was awarded the rights of import and export in 2010.

Products range: 19''network cabinet,network rack,server cabinet,server rack,patch panel,PDU,network

cable,fiber cable,outdoor cabinet,battery cabinet,IPAD charging cabinet

Audit Report: CE,ROHS,ISO.

Showroom: About 100 square meters showroom.

WEBITELECOMMS, believe that our professional team and service will help you stay step ahead in the market.

==FAQ==

1)    What is your Payment term?
---TT, LC, Western Union could be accepted.

2)    What is your Trade term?
---EXW, FOB, CNF, CIF is also ok.

3)    What is the Loading Port?
--- Ningbo,Shanghai.

4)    What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item
in the price list.

5)    What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market,international safety standard certificate also could be provided.

WebiTelecomms, An energetic and dynamic company which specializes in INTEGRATED CABLING service, built in 2003. For these years, WebiTelecomms present her trustworthy and comprehensive products around the world.

Whether you are a small and medium enterprise or a large corporate customer, we understand that you require a high level of support at both pre-sales and post-sales side. At Webitelecomms, Everything will be shared to you.

Qualified design is given by engineers team with the latest feature.

Considerate quotation to be offered by sales team in-time as per your indeed need.

80, 000 sqm workshop field stands and looks for large challanges.

Trained labors and managements will be basic support.

So, WHAT YOU CAN GET from our team?

Creative and thoughtful idea

Honest and Responsible service

Flexible and technical response.

The point is: Trusted and affordable products

We never stop asking ourselves how we can make the customer experience better, and every day, we find an answer.

Choosing our services will not be the last good decision you make!
