| Prod Model: |
WB-LC-31P3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Conductor: |
Solid Bare Copper |
| AWG: |
24 |
| Insulation: |
HDPE |
| Jacket: |
PVC/Lszh/LDPE |
| Packing Way: |
Easy Pull Box, Wooden Drum |
| Application: |
LAN Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PE |
| Type: |
Cat 5 |
| Certification: |
VDE |
| Model: |
Wb-LC-31p3 |
| Brand: |
Webit or OEM |
Product Description
Telecommunication Cable+CU or CCA Material,UTP Cat5e Network Cable
Perfect for any networking application,WebiTelecomms Cat5E Bulk Cable is a must-have for any extensive networking installation.
PVC Jacket
Our Cat5E Solid Bulk Cable comes wrapped in a sturdy PVC (Polyvinyl Chloride) Jacket, built to withstand high levels of stress,
pulling, and pushing.
Solid Cable Design
Designed for more straight-forward, simple installations, this particular style of Solid cable is perfect for most installations where
cable runs do not require several bends and twists in the line.
Pull-Through Design
Since bulk cable is generally used in intervals, the box that it comes in is almost as important as the cable itself. This is the reason
why our boxes are reinforced to provide excellent protection and are made with a simple pull-through design to keep your bulk
cable free of kinks and knots while being pulled from the box.
Specs
- Rated Temperature: 75ºC
- Rated Voltage: 30v
- Product Standard Certification: CMR
- Conductor: 24 AWG Solid Bare Copper
- Insulation Material: PE
- Insulation Average Thickness: 0.203mm
- Insulation Minimum Point Thickness: 0.172mm
- Insulation Diameter: 0.88mm (±0.005mm)
- Twisted Pair Diameter: 1.76mm (±0.01)
- Assembly Diameter: 3.60mm
- Jacket Material: PVC
- Jacket Average Thickness: 0.60mm
- Jacket Minimum Point Thickness: 0.54mm
- Jacket Outer Diameter: 5.00mm (±0.10mm)
- Rip Cord: Yes
- Test Object: Jacket
- Test Material: PVC
- Before Tensile Strength (Mpa): >=13.8
- Aging Elongation (%): >=100
- Aging Condition (ºCxhrs): 100x168
- After Tensile Strength (Mpa): >=85% of unaged
- Aging Elongation (%): >=50% of unaged
- Cold Bend (-20±2º Cx4hrs): No Crack
- Certifications: ETL Listed, RoHS Compliant
Conductor| Conductor | Solid Bare Copper 24AWG |
| Insulation | HDPE |
| Total number of insulated conductors | 8, twisted in 4 pairs |
| color code | white-blue/blue,white-orange/orange, white-green/green, white-brown/brown |
| Individual pair shield | None |
| Overall shield | None |
| Drain wire | None |

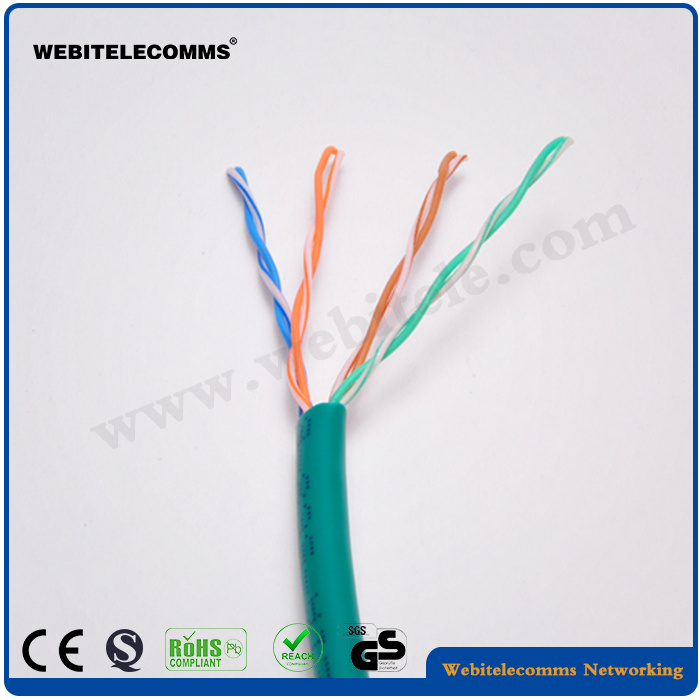

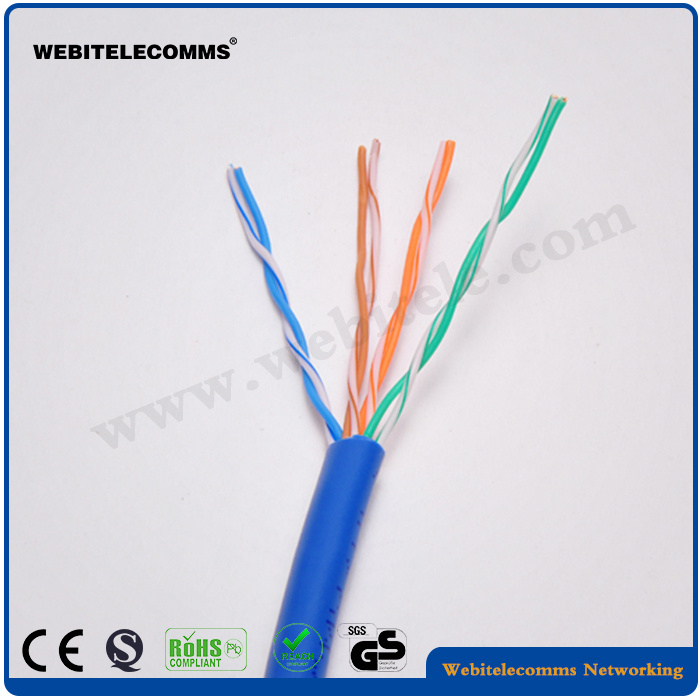

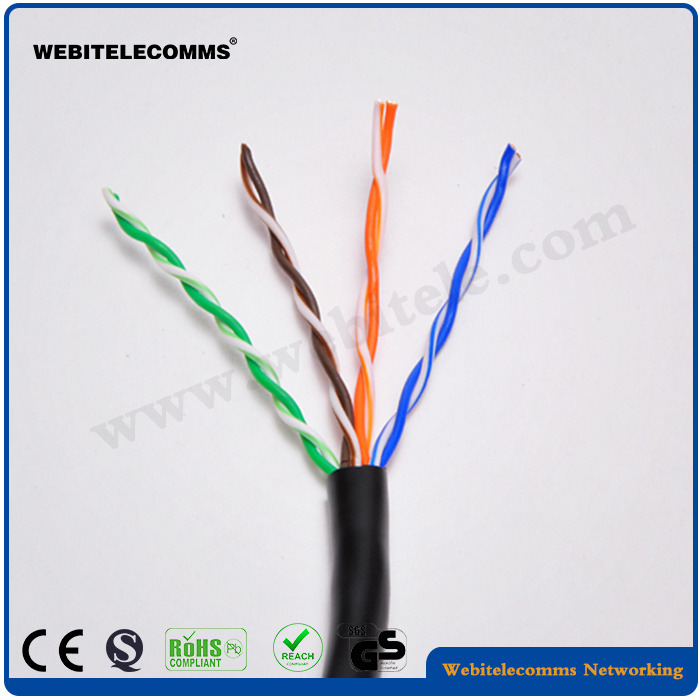

Finished Products

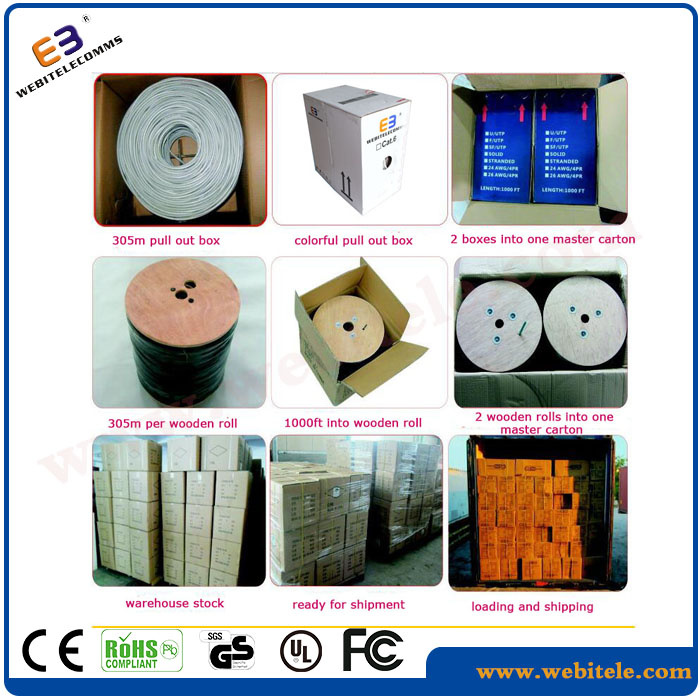

Cable Packing

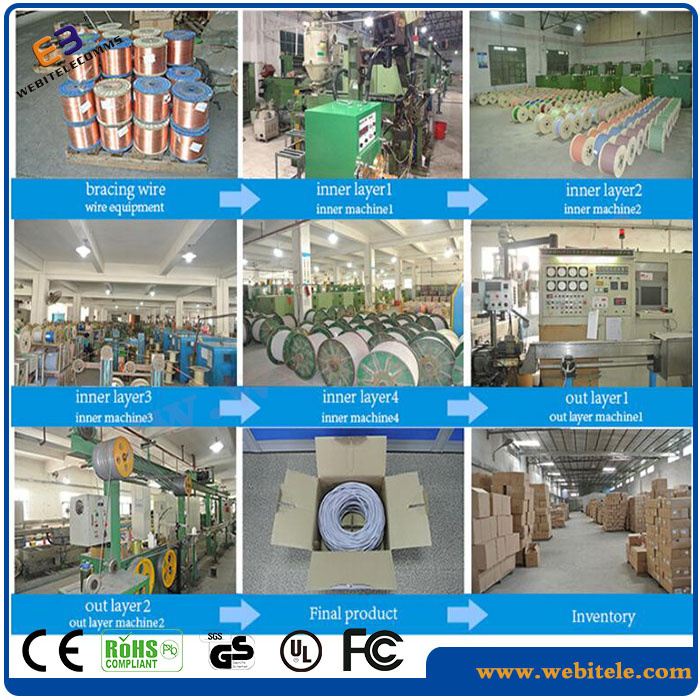

Cable Production

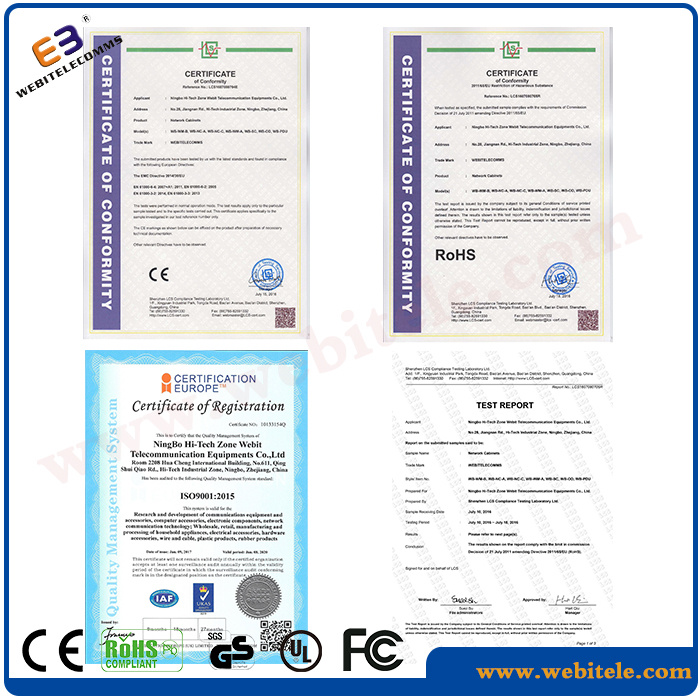

Certificates
