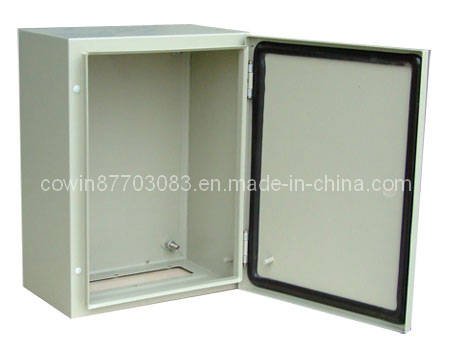

S1 Metal Distribution Box Wall Mounting Steel Enclosure

Name: S1 Metal Distribution Box Wall Mounting Steel Enclosure
Brand: all-electronics-online.com
SKU: 665069885
Availability: InStock
Rating: 4.5 (120 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	S1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Surface Treatment:	Ral7032 or Ral 7035 Powerder Coated
Type:	Distribution Metering Box
Structure:	Protection
Size:	Customizable
Application Range:	Electrical Power System
Shell Protection Grade:	IP65
Brand:	Cowinelec, OEM,ODM

Product Description

Product explains:

Metal enclosure made from a continuous length of sheet steel double folded at the front, with back welded to the frame. Both externally and internally protected with polyester epoxy resin Grey paint to RAL-7032 texturized.

New series S1^GD with transparent security glass door.
Welded studs on the back for direct fixing of mounting plate or other accessories.
Perforated door reinforcement profiles allowing fixing of equipment.
Concealed and easily removable hinges allowing over 120 degree door opening.
Foamed-in polyurethane gasket and front rain gutter ensures high degree of protection.

All size possible, pls send us your requirements.
Parts of our Distribution Box dimension:

External			Enclosures
Dimensions(mm)			Enclosures
Height	Width	Depth	Reference	Reference with glazed door
(A)	(B)	(C)		Reference with glazed door
250	200	150	CES1-2520/150	CES1-2520/150 GD
300	250	150	CES1-3025/150	CES1-3025/150 GD
300	250	200	CES1-3025/200	CES1-3025/200 GD
300	300	150	CES1-33/150	CES1-33/150 GD
400	300	200	CES1-43/200	CES1-43/200 GD
400	300	150	CES1-43/150	CES1-43/150 GD
400	300	200	CES1-43/200	CES1-43/200 GD
400	400	200	CES1-44/200	CES1-44/200 GD
400	600	250	CES1-46/250	CES1-46/250 GD
400	600	300	CES1-46/300	CES1-46/300 GD
500	400	150	CES1-54/150	CES1-54/150 GD
500	400	200	CES1-54/200	CES1-54/200 GD
500	400	250	CES1-54/250	CES1-54/250 GD
500	500	250	CES1-55/250	CES1-55/250 GD
600	500	250	CES1-65/250	CES1-65/250 GD
600	400	150	CES1-64/150	CES1-64/150 GD
600	400	200	CES1-64/200	CES1-64/200 GD
600	400	250	CES1-64/250	CES1-64/250 GD
600	500	150	CES1-65/150	CES1-65/150 GD
600	500	200	CES1-65/200	CES1-65/200 GD
600	500	250	CES1-65/250	CES1-65/250 GD
600	600	250	CES1-66/250	CES1-66/250 GD
700	600	300	CES1-76/300	CES1-76/300 GD
700	500	200	CES1-75/300	CES1-75/300 GD
800	600	200	CES1-86/200	CES1-86/200 GD
800	600	250	CES1-86/250	CES1-86/250 GD
800	600	300	CES1-86/300	CES1-86/300 GD
800	800	200	CES1-88/200	CES1-88/200 GD
800	800	300	CES1-88/300	CES1-88/300 GD
1000	600	250	CES1-106/250	CES1-106/250 GD
1000	600	300	CES1-106/300	CES1-106/300 GD
1000	800	250	CES1-108/250	CES1-108/250 GD
1000	800	300	CES1-108/300	CES1-108/300 GD
1000	1000	300	CES1-1010/300	CES1-1010/300 GD
1200	800	300	CES1-128/300	CES1-128/300 GD
1200	1000	300	CES1-1210/300	CES1-1210/300 GD
