S1gq19 Series Vandal Resistant 19mm 1no1nc Momentary LED Ring Illuminated Push Button Switch
| Price: |
US $ 1.8-2.5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
HBS1GQF-11E/S |
| Item No.: |
Hbs1gq-11/J/S |
| Switch Rating: |
5A/250VDC |
| The Front Shape: |
High Round |
| The Crust Material: |
Stainless Steel/Nickel-Plated Brass |
| Protection Degree: |
IP65,Ik08 |
| Operation Type: |
Momentary |
| Size: |
19mm |
| Contact Configuration: |
1no1nc |
| Terminal Type: |
Pin Terminal |
| Certificate: |
CCC,Ce,RoHS,UL,TUV,SGS,ISO9001 |
Product Description
S1GQ19 series vandal resistant 19mm 1NO1NC momentary led ring illuminated push button switchItem No.:HBS1GQ-11E/J/S
Mounting Hole Size: Φ 19mm
Switch Rating: 5A/250VDC
The Front Shape:FLAT ROUND
The Crust Material: Nickel-plated Brass / Stainless Steel
Protection Degree: IIP65, IK08
Contact configuration:1NO1NC
LED type:ring illumination Packging Details:
We pack 40 pieces diameter 19mm metal push button switches into 1 foam box to protect them. We supply 40 pieces rubber rings and 1 piece guarantee card with these switches. Then we packed this foam box into a plastic bag, it will packed into a small box with 3 layers corrugated. Finally, we packed 10boxes / 20 boxes into A 5 layers corrugated export carton.

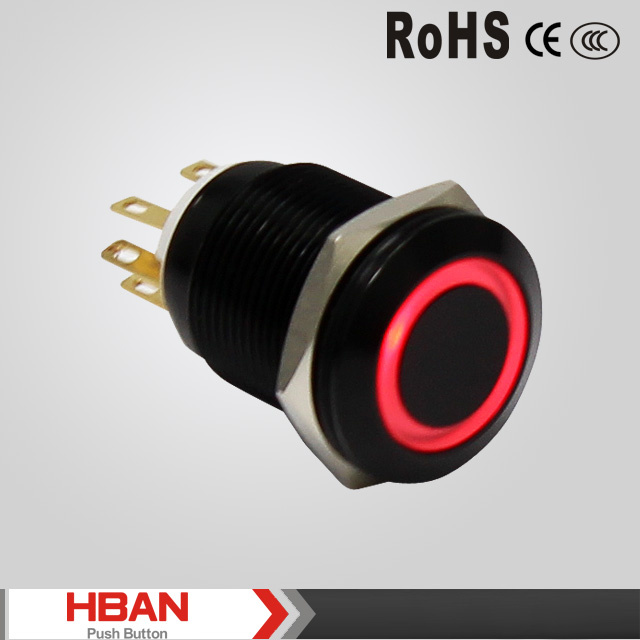

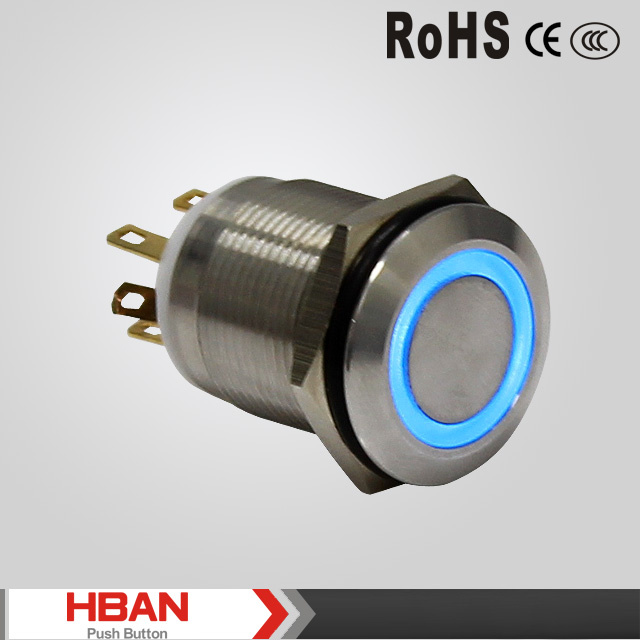

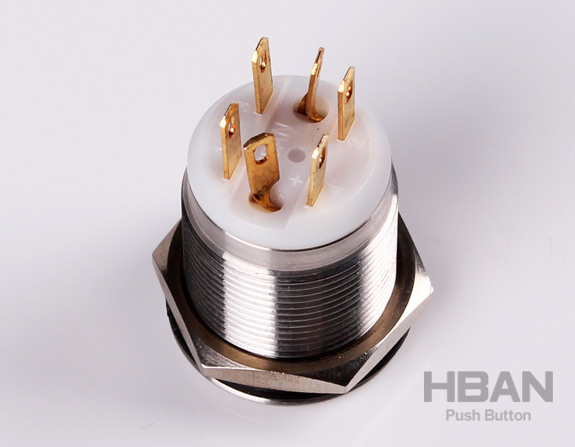

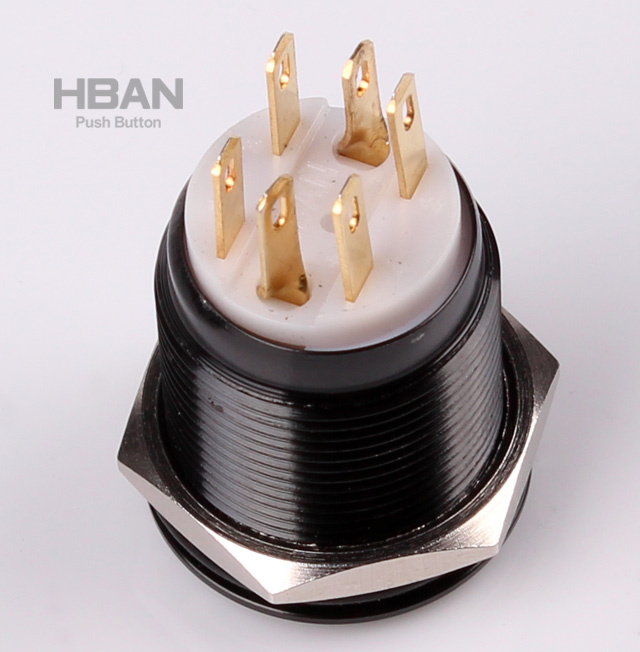

product show:
About Us:Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push button
Switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE,RoHS ,UL,CCC,TUV certificates.
Our products are widely used in machinery, machine tools, electric power,
Electronics, production control, medical, banks, ships, automation and other
Industries.
We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.
We offer a warranty on all items that we sold. Item will be tested before ship,it will be in good condition,if there are some problems with the item,feel free to contact us. send the photo to us that we can check and give you best solution .
Tel: 0086-577-62708000 Fax: 0086-577-62708007FAQ:
Why choose us?
1:complete product catagory,metal push button switch,plastic bush button switch,signal light,rotary switch,key lock switch,emergency stop switch,buzzer and so on.
2:13 years manufacturing experiences
3:factory direct price
4safe payment terms:T/T,PAYPAL,WEST UNION
5:OEM avaliable
6 provideing customized prodects
7 certificate of CCC,CE,ROHS,UL,TUV,SGS,ISO9001 | Item No. | HBBS1GQ-11/J/S |
| Specification | 1NO1NC MOMENTARY |
| Terminal Type | PIN TERNIMAL |
| Switch Type | X(TWO TERMINAL BREAKPOINTS SLOWING MOVING CONTACTS) |
| Switch Specification | Ith:5A Ui: 250VDC |
| Contact Resistance | ≤50m Ω |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Strength | 2000V AC |
| Operating Temperature | -20degree~+55degree |
| Machanical Life | >2,000,000 times |
| Electrical Life | >50,000 times |
| Panel Thickness | 1~10mm |
| Torque | 5~14Nm |
| Operating Pressure | About 2.5-4N |
| Operating Stroke | About 2.8mm |
| Protection Degree | IP65,IK09 |
| Material | Contact | Sliver Alloy |
| Button | Nickel-plated Brass | Stainless Steel |
| Case | Nickel-plated Brass | Stainless Steel |
| Base | PBT |
| Lamp parameters | Lamp type | (LED)RING illumination/ DOT ILLUMINATION |
| lamp color | R/W/G/O/Y/B |
| Lamp voltage | 6V/12V/24V/26V/110V/220V |
| Life | 50000hours |
