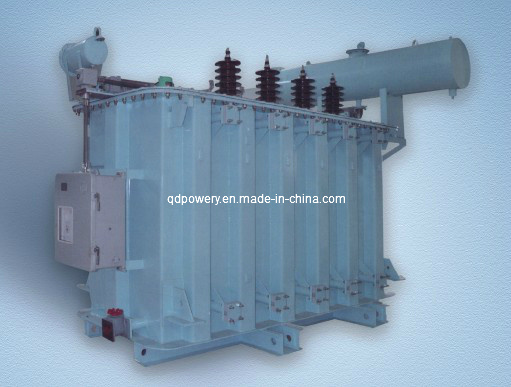

S9 Series Oil Immersed Power 35kv Transformer

Prod Model:	S9
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Shandong, China (Mainland)
Brand Name:	Powery
Coil Structure:	Toroidal
Coil Number:	3
Rated Voltage:	33kv, 35kv
Frequency:	50Hz or 60Hz
Vector Group:	Dyn11,Dyn5,Yyno or Others
Application:	Power
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Brand:	Powery

Product Description

Specifications
1)IEC60076,ISO,CCC,Type test report
2)Exported transformer to Malaysia,HK,Ethiopia,Mozambique

33KV S9 Series three Phase Oil Immersed Distribution Power Transformer

1. Standard: GB1094-1996; JB/T10088-2004; GB/T6451-2008; EQV IEC60076?
2. Voltage Grade: 33KV,35KV
3. Voltage Regulation Mode: No-load tap changing or On-load tap changing
4. Tapping Range: ±5%, ±2×2.5%, ±4×2.5% or others
5. Connection Sign: Dyn5,Dyn5,Yyn0, Dyn11 or others
6. Short Circuit Impedance: Standard impedance (For details see technical data sheet)
Features:
S9 33kV transformer equipped characters as low loss, low noise, strong protection for thunder and lighting, well anti-shortcut capacity and fine appearance etc. It combines advanced equipments and manufacturing process, and it has four remote functions: remote communication, remote test, remote adjustment and remote control. By remote control from a computer, the power station could be work without any works on watch on the night. "S9" 33kV series energy saving transformer has passed the test by National Mechanical & Industrial Bureau and National Power Company. 33kV series transformer mainly used in power network, and the projects of power distribution.
Core equipped with advanced three steps: vertical and horizontal and horizontal cut, lap and multi-stage. It disperses the air distribution, improve the magnetic path. Decrease the no load loss, no load current and noise.
Core adopts series measures dragged panel, pressed the coil, particular glue for silicon steel to increase the strength of mechanism.
New structure of high and low voltage winding, reasonable arrangement for oil tube and connection which increasing the capacity of mechanical strength and anti-shortcut.

Technical Data of 33KV S9 Series Three Phase Oil Immersed Distribution Transformer
				Loss(kW)				Weight (kg)			(mm)			Gauge
Rated Capacity	Voltage Group(kV)		Connection Method		(75)	No-load current	Impedance Voltage				(L)	(W)	(H)
(kVA)	HV	LV		No-load	Load	%	%	Machine	Oil	Gross	Dimension			Vertical	Horizontal
50				0.21	1.21	2		195	205	590	1000	950	1450	550	550
100				0.29	2.02	1.8		320	240	790	1080	1000	1600	550	550
125				0.34	2.38	1.7		395	270	950	1100	1030	1630	660	660
160				0.36	2.83	1.6		460	285	1020	1130	1060	1630	660	660
200				0.43	3.33	1.5		555	325	1170	1190	1060	1670	660	660
250			others	0.51	3.96	1.4		630	340	1340	1260	1160	1700	660	660
315	38.5		Dyn5	0.61	4.77	1.4		720	400	1530	1280	1240	1790	660	660
400	36.5	0.433	Yd11	0.73	5.76	1.3	6.5	830	490	1780	1960	880	1900	820	820
500	35	0.415	Dyn11	0.86	6.93	1.2		930	510	1960	2020	940	1920	820	820
630	33	0.4	Yyn0	1.04	8.28	1.1		1085	600	2290	2070	1010	2010	820	820
800				1.23	9.9	1		1270	660	2640	2240	1040	2150	820	820
1000				1.44	12.15	1		1495	735	3100	2300	1200	2150	820	820
1250				1.76	14.67	0.9		1775	830	3630	2450	1280	2250	1070	1070
1600				2.12	17.55	0.8		2140	935	4235	2220	1510	2350	1070	1070
2000				2.61	21.5	0.8		2535	1035	4910	2310	1740	2440	1070	1070
2500				3.15	23	0.8		3140	1190	5840	2370	1840	2490	1070	1070
(Note): (Tapping range of high voltage) ±5%; ±2×2.5%, Frequency: 50Hz.
