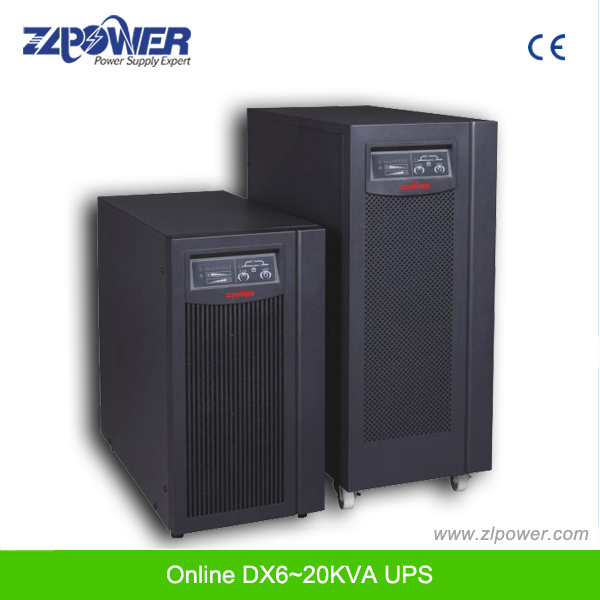

SAI, USV, No Breaks UPS Power 6KVA-20KVA
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
DX6K~DX3120KL |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Mid East,Western Europe |
| Weight: |
90kg |
| Demension: |
260&570&717 |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overcurrent |
Product Description
Model: SAI, USV, No breaks UPS power 6KVA-20KVA
IP/OP: 220/230/240VAC 50/60Hz
IP/OP: 380/220VAC 50/60Hz
UPS KEY FEATURES
This UPS have True online double conversion technology
Wide input voltage range
Zero transfer time
Protection against all types of power problems
No add-on CNTL unit required for parallel connection
Low initial investment and flexible for future expansion
Highest reliability and maximum performance for power sharing and redundancy
UPS Equipped with maintenance bypass switch
Smart RS232 and intelligent slot interface
Sealed lead acid, maintenance free battery for UPS
UPS APPLICATION
Servers, Data-Center, Critical network devices, Sensitive electronic equipment, Telecom, etc.
| Online UPS MODEL | DX6K | DX10K | DX6KL | DX10KL | DX3110KL | DX3115KL | DX3120KL |
| CAPACITY | VA/W | 6KVA/4.8KW | 10KVA/8KW | 6KVA/4.8KW | 10KVA/8KW | 10KVA/8KW | 15KVA/12KW | 20KVA/16KW |
| INPUT | Nominal Voltage | 220/230/240VAC | 380VAC |
| Voltage Range | 120-275VAC | 210-475VAC |
| Frequency Range | 46-64Hz: 50Hz, 60Hz auto sense |
| Phase | Single phase with Ground | Three phase (4 Wires+Ground) |
| Power Factor | >=0.99 | >=0.95 |
| OUTPUT | Voltage | 220/230/240*(1±1%)VAC |
| Frequency | 50/60Hz(Adjustable)
50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz(1±0.1%)
60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz(1±0.1%) |
| Wave Form | Pure Sine Wave |
| Power Factor | 0.8 |
| Harmonic Distortion | =<2% THD (Linear Load), =<6% THD (Non-Linear Load) |
| Overload Capacity | Normal when load < 105%; 105%-125% for 1 min, 125%-150% for 30sec |
| Current Crest Ratio | 3:1 |
| Connections | Terminal block |
| Efficiency | To AC Mode | 88% | 85% |
| To Battery Mode | up to 90% |
| Battery | Type | Sealed free maintenance lead acid battery |
| Nominal DC voltage | Built in batteries 12v7.2ah*16pcs | 192VDC | 192VDC |
| Quantity | 16pcs | 16pcs | Depends on requested back-up time | Depends on requested back-up time |
| Back-up Time (Full load) | >=7 minutes | >=5 minutes | Depends on the capacity of external battery bank | Depends on the capacity of external battery bank |
| Recharge Time | 7 hours to 90% | Depends on the capacity of external battery bank | Depends on the capacity of external battery bank |
| Charge current(MAX) | 2.0A | 4.2A or 8A | 4.2A or 8A |
| Charge voltage | 220Vdc ± 1% |
| Bypass | Automatic Transfer | On overload and UPS failure |
| Before UPS Power-on | Default "NO" user adjustable to "YES" |
| Transfer Time | | Zero |
| Indicators | LED Display | UPS status, I/P & O/P voltage& frequency, Battery voltage, Battery capacity, Loading, Fault code |
| Audible Alarm | | Bypass, On battery mode, Battery low, Overload, Fault |
| Acoustic noise | At 1 meter distance | <55dB | <60dB |
| Communications | Intelligent RS232 serial port | Windows 98/NT/2000/XP/2003, Linux, Sun Solaris, IBM Aix, Compaq True64, SGI IRIX, FreeBSD, HP-UX, and MAC |
| SNMP (Optional) | Power management from SNMP manager and web browser |
| USB (Optional) | Windows family software and Mac OS |
| Environmental | Operating Temperature | 0~40Centi-degree |
| Operating Humidity | 20~90% ( Non Condensing) |
| Weight | Net weight (kg) | 57 | 67.5 | 18 | 20 | 27 | 35 | 35 |
| UPS Dimension | L*W*H (mm) | 500*248*616 | 500*248*616 | 500*240*460 | 500*240*460 | 500*248*616 | 500*248*616 | 500*248*616 |
| There are two types: Standard type and Professional type, Professional type is with EPO, online maintenance and other functions. |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
