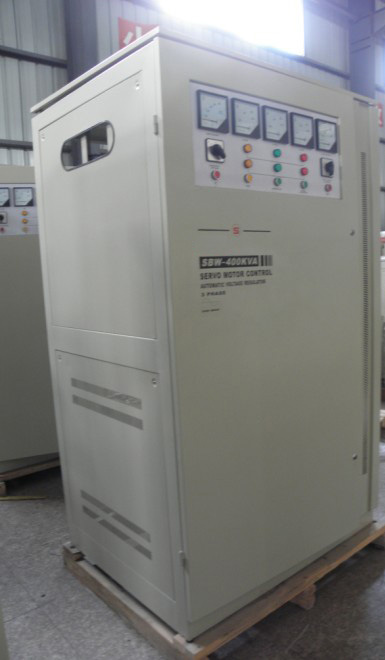

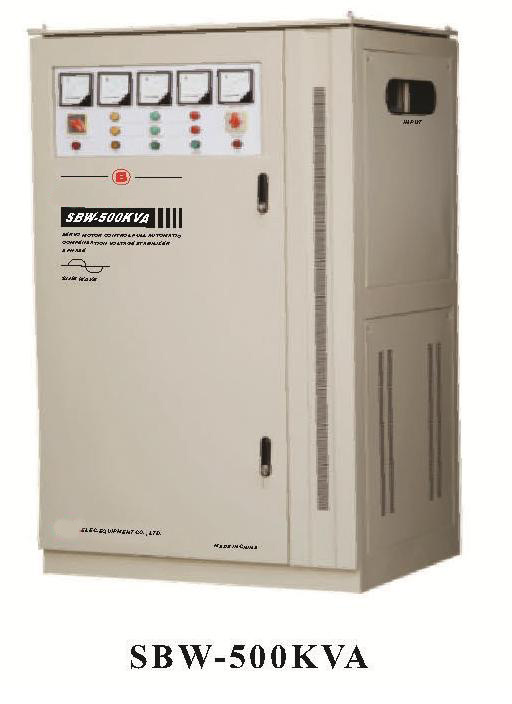

SBW-F Series Separate Adjustable Voltage Regulator

Name: SBW-F Series Separate Adjustable Voltage Regulator
Brand: all-electronics-online.com
SKU: 693075735
Availability: InStock
Rating: 4.5 (145 reviews)

Price:	US $ 200/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SBW-F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Date:	7days
Color:	White
Current Type:	AC
Phase:	Three Phase
Usage:	DBW
Frequency:	Low Frequency
Brand:	Sanyu

Product Description

Feautre of voltage regulator
The three-phase Adjustable Compensation Voltage regulator is composed of Three sets of single-phase voltage stabilizer by "star-shaped" connection. With The function of thee phases independently voltage-stabilizing, it applies to the Unbalanced input voltage of three phases or unbalanced three phase loads. Moreover, It has the functions such as voltage regulating stability, high voltage stabilizing Precision, and auto-balance of three phases. The regulating voltage parts of this Series voltage stabilizer is adopted the pillar. Therefore, it has more power and More reliability...

Main Technical Data
Phase no.: Three-phase four wire system
Input voltage: Phase voltage: 220V± 20%(176~264V)
Line voltage: 380V± 20%(304~456V)
Output voltage: Phase voltage: 220V± 2~5% adjustable
Line voltage: 380V± 2~5% adjustable
Frequency: 50Hz/60Hz
Efficiency: ≥ 95%
Response time: ≤ 1.5S (against 10% input voltage deviation)
Ambient temperature: -10 celsius degree ~+40celsius degree Insulation resistance: ≥ 2MΩ
Waveform distortion: Non additional waveform distortion
Protection functions: Over-voltage, over-current, phase shortage, phase-sequence
And mechanical failure.
Over-load capacity: 1min. At the rated current of 2 times.
Electricity-resistance strength: Power frequency sinusoidal is 2000VAC without

Application
It is widely used in the place with large electricity demands such as factories, Post&Communication, schools, hotel etc. Acted as whole voltage-stabilizing or Single voltage -stabilizing.

Shanghai Sanyu Electronics Equipment Co., Ltd.Was founded in 2000, with parent company Japan Sanyu Corporation (Asia).We are a leading manufacturer of AC drives, automation products and inverter welding machines in Shanghai, China.

SY-8000, SY7000, SY8600 vector control inverter are our key patent products.We produce high quality and outstanding performance AC drives.We have developed full range AC drives to meet the most needs of customers.Sanyu drives have been widely used in many industries from low end market to high end market.

In China, there are hundreds of authorized distributors and technicians who are ready to serve our customers at any time.Currently, Sanyu drives have been exported to more than 30 countries.Depth of industry experience combined with innovative design talents in diverse technologies have ensured that Sanyu will play an important role in automation and drive market all over the world.We are becoming a world-renowned professional AC drives and inverter system supplier.

Let's make a bright future together!
