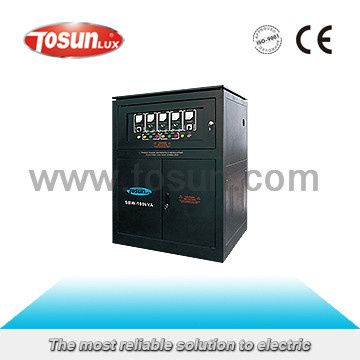

SBW Three-Phase Full-Automatic Compensated Voltage Stabilizer

Prod Model:	SBW-100KVA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	50kVA-1000kVA
Efficiency:	Better Than 98%
Input:	Three Phase and Four-Line System
Current Type:	AC
Phase:	Three Phase
Frequency:	Intermediate Frequency
Application Range:	Home, Schoo, Industry and So on
Brand:	Tosun
Usage:	SBW

Product Description

APPLICATION:

SBW Three Phase Compensated Voltage Stabilizer is a contact adjustable automatic voltage compensation high-power regulating power device. When volatge from supply network is varied or due to loading current effect, it automatically regulates the output voltage to ensure the normal function of the variesd of electric equipments.

1. Whole power-supply of small plant.

2. Power-supply of workshop or department of large, medium industrial or mining enterprises.

3. Form a complete set with single-machine


DEMAND ENVIRONMENT:

       1. Ambient temperature of use: 0ºC-40ºC

       2. Ambient temperature of storage and transport: -40ºC-60ºC

       3. Relative humidity: <90%

       4. Without corrosive, flammable and explodable and other conductive gas which might influence insulation of voltage regulator.


FEATURE:

       1. Input: three phase and four-line system  Voltage:  176V-250V  Line Voltage: 304V-432V

       2. Output: three phase and four-lines system  Voltage:  210V-230V  Line Voltage: 361V-399V

       3. Input & Output terminal(phase line and middle line) can bear sinusoidal voltage with power         frequency 50Hz 3000V to machine stand for 1 minute

       4. Efficiency: it is better than 98% if voltage regulator operates with normal power

       5. Additional waveform distortion of output voltage <1%


OUTPUT CURRENT:

Nominal power(kva)	50	100	150	200	250	300	350	400	450	500	600	800	1000
Rated phase current(A)	76	152	228	304	379	455	531	607	682	758	910	1213	1516
