| Prod Model: |
SC/APC Fast Connector |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Business Type: |
Manufacturer |
| Polishing: |
PC, APC |
| Products Name: |
Sc Fiber Optic Fast Connector |
| Tight Buffer Diameter: |
250um |
| Fiber Type: |
3.1X2.0mm Drop Cable or 3.0/2.0/0.9mm Cable |
| Insertion Loss: |
0.3dB |
| Exchangeability: |
<0.2dB |
| Operating Temperature: |
-40c ~ +85c |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
APC |
| Light Source TYPE: |
Fiber Optic |
Product Description

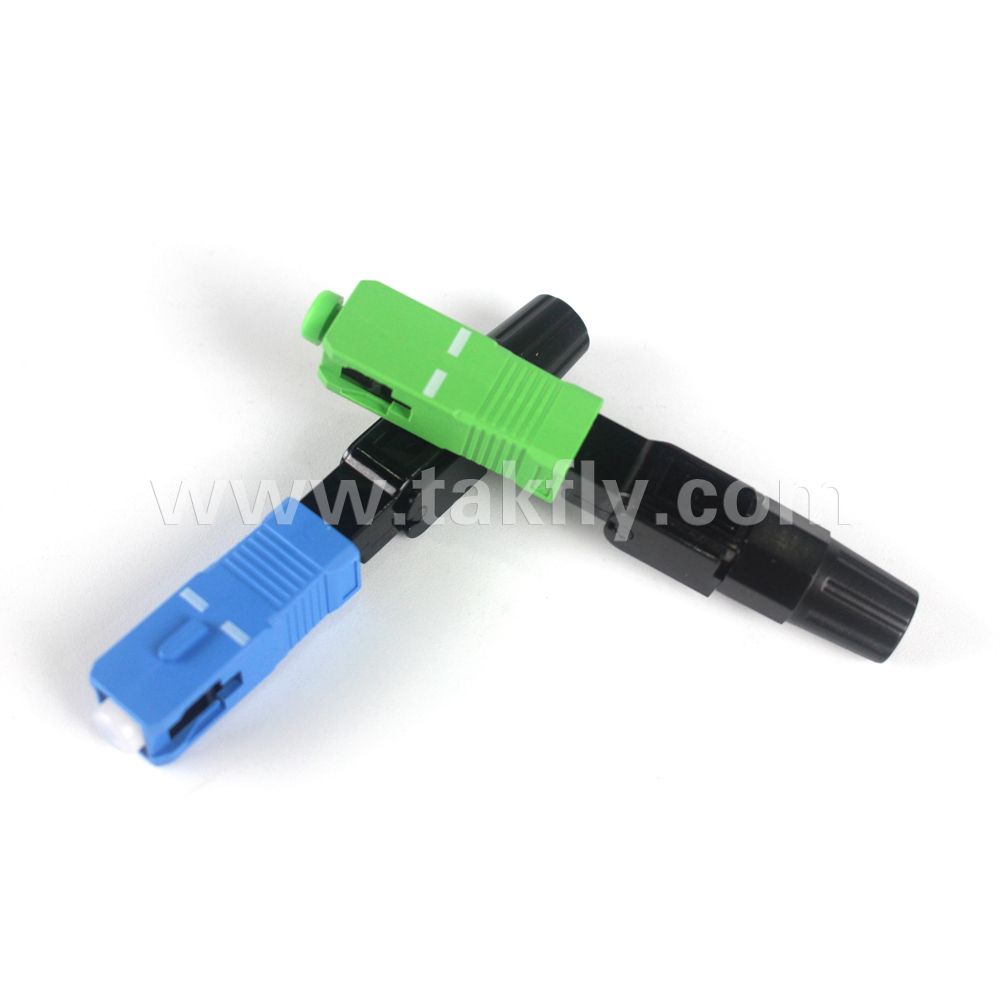

SC/APC Fast Connector for 2.0mm/3.0mm/2*3.0mm FTTH Drop Cable
Specification1.Quick fiber connector
2. Easy assembly
3.Without further processing
4.Excellent stability
5.Low insertion loss,100%
Features 1.Easy assembly, no need special assembling tool
2.Without further processing, such as polishing
3.Excellent stability with low insertion loss, 100% qualified
4.Can reduce the defect rate because of being able to reconnect
Specifications
Item: |
Specification: |
Product Name: |
sc/pc fiber connector adapetr HM-FC10 |
Applicable for: |
3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable |
Optical fiber diameter: |
φ125um (657A&657B) |
Tight buffer diameter: |
φ250um |
Fiber mode: |
Single mode |
Operation time: |
About 10s (exclude fiber cut) |
Insert loss: |
≤0.3dB (1310nm & 1550nm) |
Return loss: |
≥40dB |
Fastening strength of naked fiber: |
>5N |
Tight clamping force cladding: |
>8N |
Tensile strength: |
>50N |
Using temperature: |
-45°C~+80°C |
Item | Single mode | Multi mode |
| Insertion loss | PC<0.3dB APC<0.2dB | <0.3dB |
| Return loss | PC>45dB APC>60dB | >25dB |
| Insert-pull test | 1000(times) <0.2dB |
| Operating temperature | -40°C ~ +85°C |
| Ceramic ferrule spec | 125.5um concentricity deviations: <1um | 127um concentricity deviations: <3um |
| Suitable fiber | PC/APC(9/125um) | PC(50/125um,62.5/125um) |
Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice
Delivery

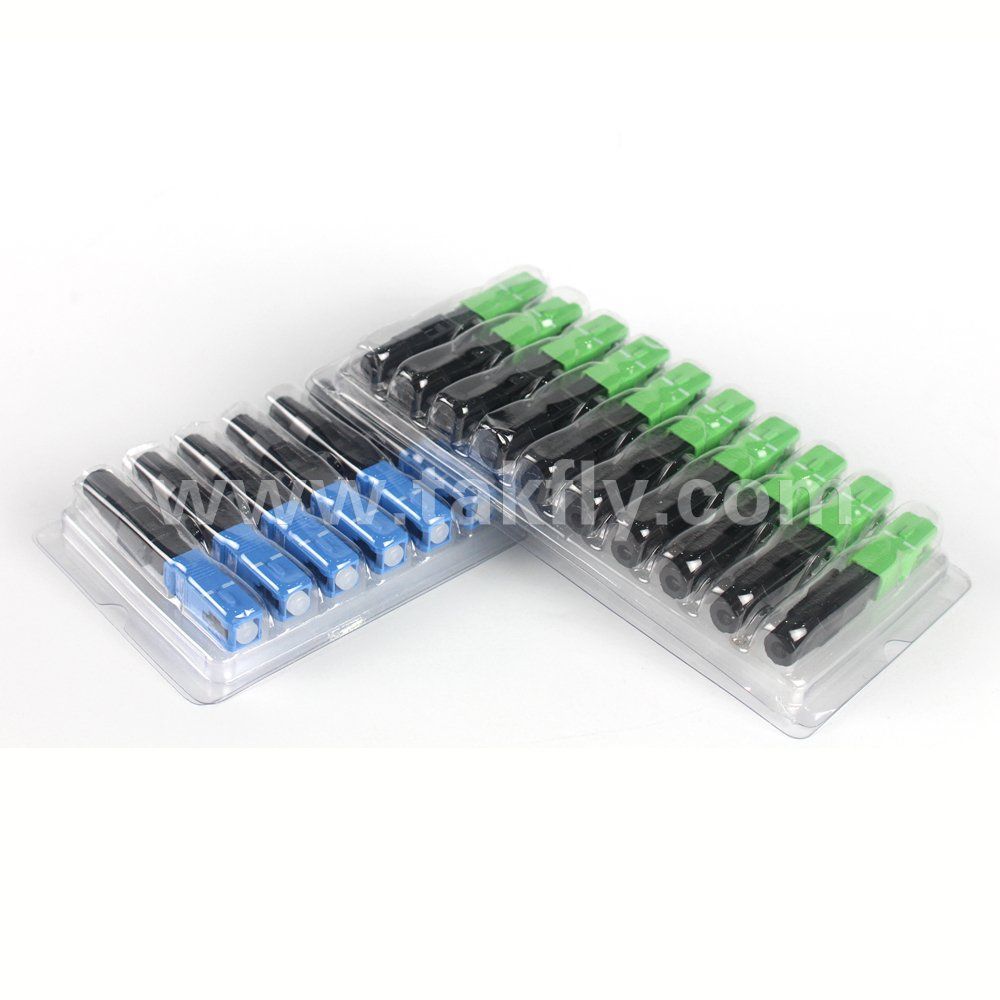

1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Packaging
1. All products will be packed in double corrugated carton , so the product can get effective protection to avoid damage.2. Packaging according to customer requirement Shipping
1. We shipping via DHL / FedEx / TNT/etc for samll orders. Yow can get your packages in about 3-5 days all over the world.2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.3. You can choose your own shipping agent, we will provide good cooperation for it. After-Sales Service
1. TAKFLY can provide detail documents and remote help for device installation and configuration.
2. Warranty: 2 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3. TAKFLY promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it's accessories are complete.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

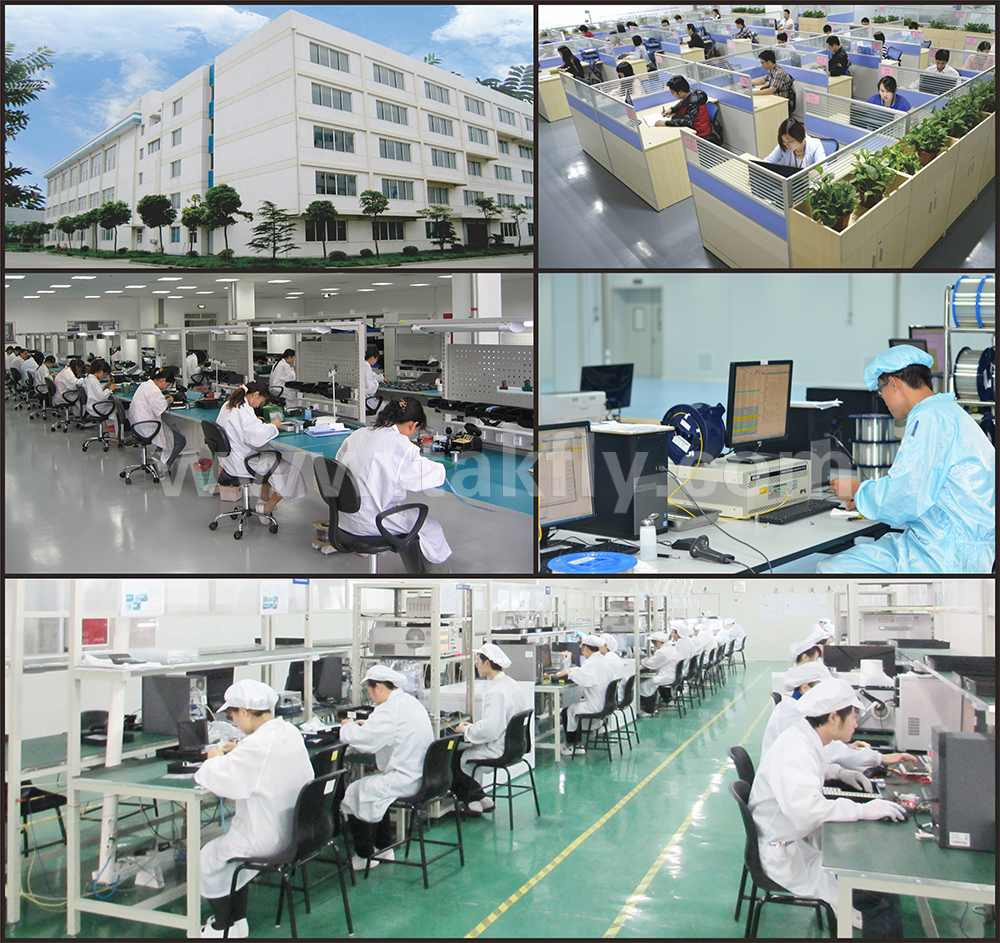

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
