Sc/APC Singlemode 12 Fiber Cores Fiber Pigtail

Name: Sc/APC Singlemode 12 Fiber Cores Fiber Pigtail
Brand: all-electronics-online.com
SKU: 724811395
Availability: InStock
Rating: 4.6 (103 reviews)

Price:	US $ 7/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SCA-12P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Any Length Is Ok:	12 Colors Cable for Choice
Cable Diameter Can Be Chose:	Boots Colors Can Be Customized
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Core:	12 Fiber Cores

Product Description

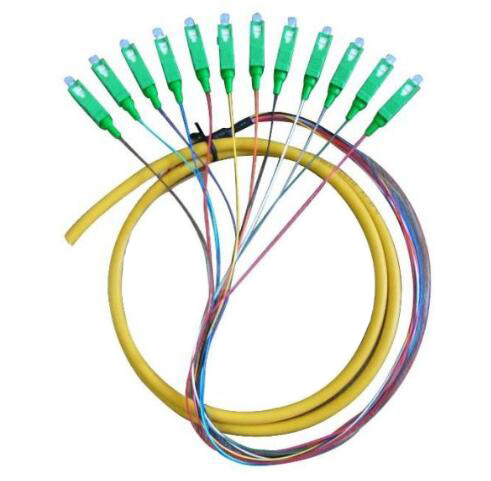

Fiber Optic Patch Cord Cable, SC/APC, 12 fiber cores fiber optical pigtail, with good quality SC Fiber Optical Connector, armored fiber cable

Fiber patch cord Complies with IEC, Telcordia GR-326-CORE standard
Low insertion loss and high return loss
Fiber ferrule PC/UPC/APC polishing
Fiber optic cable diameter: 0.9, 2.0, and 3.0mm
Fiber jumper of the Single or multi mode is available
Fiber cable simplex or duplex is available
Cable jacket PVC or LSZH cable is available
Excellent changeability and repeatability
Tensile strength: 10N
Fiber patch cord operating temperature range: -40 to 80° C
Storage temperature range: -40 to 80° C

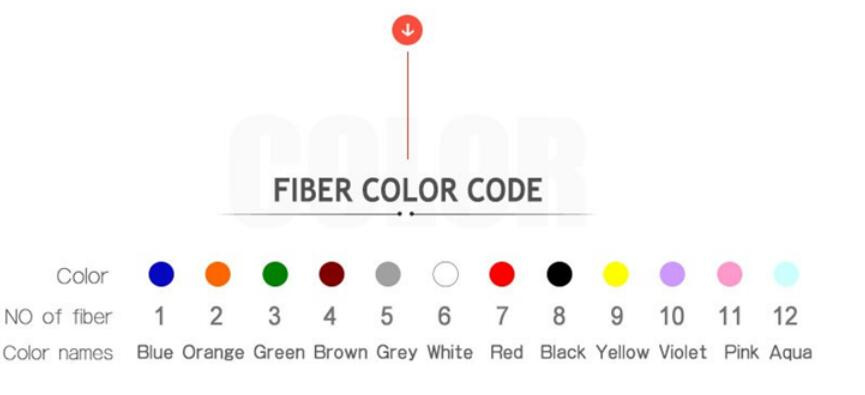

Color of fiber optic cable: Yellow (SM), Orange (MM), and Aqua (OM3)

Spec.	fiber optic patch cord/ fiber cable
Insertion loss	Less than 0.3 dB
Return loss	UPC more than 55 dB,APC more than 60dB
Repeatability	Less than 0.2 dB
Changeability	Less than 0.1 dB
Operating temperature range	-40 to 80°C
Storage temperature range	-40 to 80°C
Tensile strength	100N
Min. bending radius	35mm
Length	Customed
