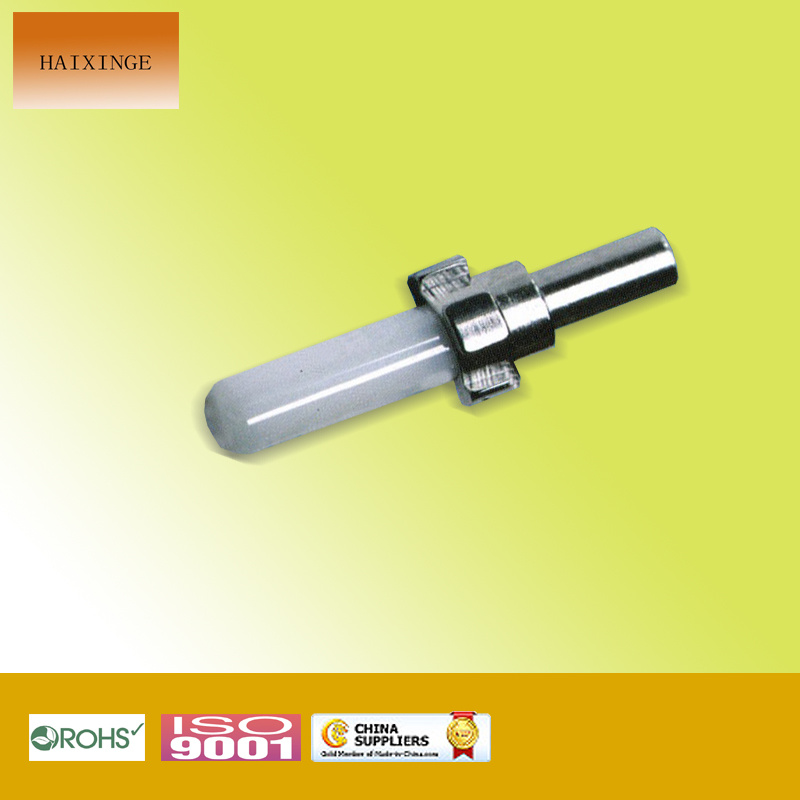

Sc/APC Type Fiber Zirconia Ferrule---with Base

Name: Sc/APC Type Fiber Zirconia Ferrule---with Base
Brand: all-electronics-online.com
SKU: 754758815
Availability: InStock
Rating: 4.3 (79 reviews)

Price:	US $ 0.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	sc001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Transmission Medium:	Multimode
Number Of Cores:	Single-Core
Ferrule Endface:	APC
Brand:	Haixinge

Product Description

Ceramic ferrule is generally treated as the core part of the SC, FC, LC connectors.

Optimized for SC, LC, APC connector
High quality and performance
High precision for concentricity, I. D., O. D.
Low insertion loss
High reliability by using zirconia
SC ferrule SM & MM available

Variety of Ferrule: SC, CT, LC, MU, SMA
Variety of Ferrule Endface: Flat, PC, Cone, Step, Pre-angled

Optimized for SC, FC, ST, LC connector
High quality and performance
High precision for concentricity, I. D., O. D.
Low insertion loss
High reliability by using zirconia
Compliant with RoHS and Telcodia-GR-326-CORE
SC ferrule SM & MM available

SC Ferrule Specification
	Single Mode	Multi Mode	Master
Outside Diameter	Φ2.4990
OD Tolerance	±0.0005	±0.001	±0.0003
Concentricity	≤0.001	≤0.004	≤0.0006
Inner Diameter	Φ0.126-Φ0.127
ID Tolerance	+0.001/0	+0.003/0	+0.0005/0
Ferrule Length	SC:10.50±0.05
End Curve Radius	20+5/-10
LC Ferrule Specification
	Single Mode	Multi Mode	Master
Outside Diameter	Φ1.2490
OD Tolerance	±0.0005	±0.001	±0.0003
Concentricity	≤0.001	≤0.004	≤0.0006
Inner Diameter	Φ0.126-Φ0.127
ID Tolerance	+0.001/0	+0.003/0	+0.0005/0
End Curve Radius	6.40+0.1/-10

Technicial
Parameter	Unit	FC,LC,SC				ST,MU			MTRJ,MPO
		SM			MM	SM		MM	SM		MM
		PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC
Insertion loss(typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.2	≤0.2
Return loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥30	≥45	≥50	≥35
Operating wavelength	nm	13,101,510				13,101,510			13,101,510
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Vibration	dB	≤0.2				≤0.2			≤0.2
Operating temperature	°C	-40~+75				-40~+75			-40~+75
Storage temperature	°C	-45~+85				-45~+85			-45~+85
Cable diameter	mm	Φ3.0,Φ2.0,Φ0.9				Φ3.0,Φ2.0,Φ0.9			Φ3.0,Φ2.0,Φ0.9

Manufacture process

Product Display

Application:
Telecommunication networks
CATV & LAN
Date networks
Passive Optical Network
