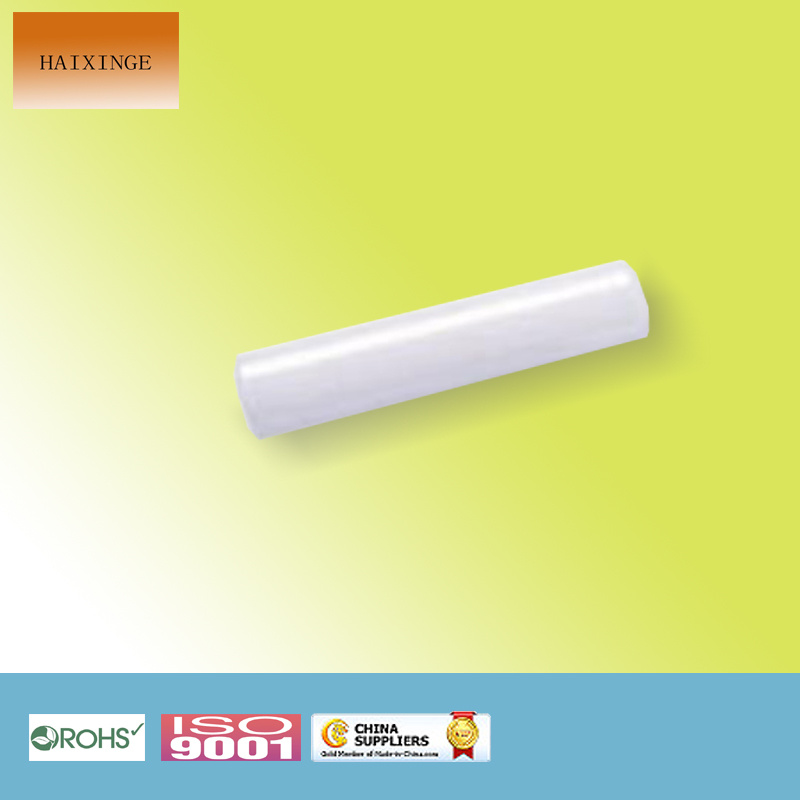

Sc/LC Type Ceramic Ferrule

Name: Sc/LC Type Ceramic Ferrule
Brand: all-electronics-online.com
SKU: 754759065
Availability: InStock
Rating: 4.8 (60 reviews)

Price:	US $ 0.25/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	su-031
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Transmission Medium:	Multimode
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Brand:	Haixinge

Product Description

Ceramic ferrule is generally treated as the core part of the SC, FC, LC connectors. Optimized for SC, LC, APC connector High quality and performance High precision for concentricity, I. D., O. D. Low insertion loss High reliability by using zirconia SC ferrule SM & MM available Variety of Ferrule: SC, CT, LC, MU, SMA Variety of Ferrule Endface: Flat, PC, Cone, Step, Pre-angled Optimized for SC, FC, ST, LC connector High quality and performance High precision for concentricity, I. D., O. D. Low insertion loss High reliability by using zirconia Compliant with RoHS and Telcodia-GR-326-CORE SC ferrule SM & MM available SC Ferrule Specification Single Mode Multi Mode Master Outside Diameter Φ2.4990 OD Tolerance ±0.0005 ±0.001 ±0.0003 Concentricity ≤0.001 ≤0.004 ≤0.0006 Inner Diameter Φ0.126-Φ0.127 ID Tolerance +0.001/0 +0.003/0 +0.0005/0 Ferrule Length SC:10.50±0.05 End Curve Radius 20+5/-10 LC Ferrule Specification Single Mode Multi Mode Master Outside Diameter Φ1.2490 OD Tolerance ±0.0005 ±0.001 ±0.0003 Concentricity ≤0.001 ≤0.004 ≤0.0006 Inner Diameter Φ0.126-Φ0.127 ID Tolerance +0.001/0 +0.003/0 +0.0005/0 End Curve Radius 6.40+0.1/-10 Technicial Parameter Unit FC,LC,SC ST,MU MTRJ,MPO SM MM SM MM SM MM PC UPC APC PC PC UPC PC PC UPC PC Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 Operating wavelength nm 13,101,510 13,101,510 13,101,510 Exchangeability dB ≤0.2 ≤0.2 ≤0.2 Vibration dB ≤0.2 ≤0.2 ≤0.2 Operating temperature °C -40~+75 -40~+75 -40~+75 Storage temperature °C -45~+85 -45~+85 -45~+85 Cable diameter mm Φ3.0,Φ2.0,Φ0.9 Φ3.0,Φ2.0,Φ0.9 Φ3.0,Φ2.0,Φ0.9 Manufacture process Product Display Application: Telecommunication networks CATV & LAN Date networks Passive Optical Network

We are professional chemical and electronic productions manufacturer located in Taizhou, China, advantaged in all Powder Coatings, Epoxy Resin, Polyester Resin, Optical Fiber Ferrule and etc with best qualit and most competitive prices.

We specialized in the development and fabrication of thermosetting powder coatings. Our products have passed both ISO9001 /14001, RoHS and Reach certifications, and we can provide anti-corrosion and textured powder coatings according to your requirement. With 5000 tons of annual production capacity, we can produce powder coatings of epoxy type, epoxy-polyester mixed type, pure polyester type, polyurethane type, polyethylene type, etc. We have assets 20 million yuan, floor area 12000 sq. M. And build area 7000 sq. M.

Many engineer with rich experience are working at development and production of powder coating in our company. Our trade scale is constantly expanding, we got the trust of customers with good prestige and hope create the glorious future!
