Sc/FC/St/LC/E2000/MPO Flange Type Fiber Optic Adapter

Name: Sc/FC/St/LC/E2000/MPO Flange Type Fiber Optic Adapter
Brand: all-electronics-online.com
SKU: 806841585
Availability: InStock
Rating: 4.6 (33 reviews)

Price:	US $ 0.2/Piece
Min Order:	1000/Piece
Pay Type:	L/C,D/P,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPO Adapter
Operation Time:	About 60s(No Fiber Cut)
Insert Loss:	<0.3 dB
Return Loss:	PC>40dB; APC> 50dB
Fiber Type:	OS1,OS2,Om1,Om2,Om3,Om4
Cable Outer Diameter:	0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm
Tensile Strength:	>50n
Connector Color:	Green,Red,Black or Yellow
Color:	Blue, Green, Black, Yellow
Export Markets:	Global
Polishing:	PC,Upc,APC
Ferrule Endface:	PC(',UPC)
Transmission Medium:	Single Mode or Multimode
Structure:	MPO
Number Of Cores:	Single Core or Multi-Core
Connector Type:	MPO

Product Description

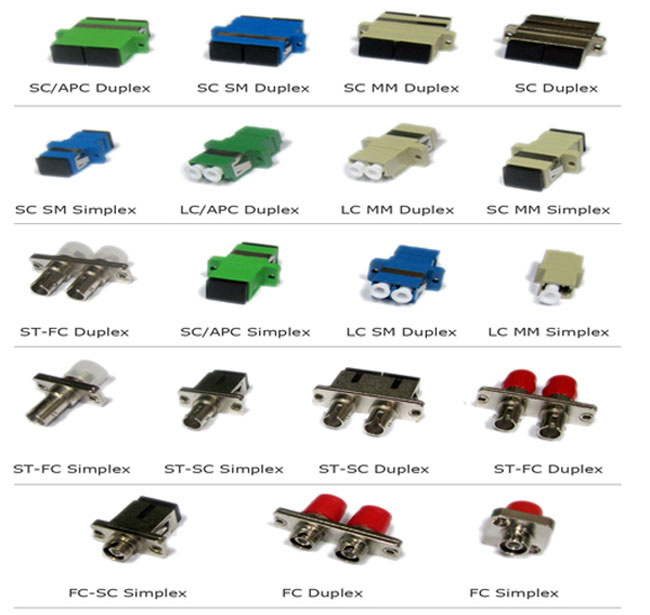

SC/FC/ST/LC/E2000/MPO flange type fiber optic adapter

Brief introduction:
The MT-RJ and MPO are the MT series. Small size, Multi-channel is the most prominent feature, which greatly facilitates the high-density wiring. The MT series adapter have been widely applied to the CATV, Multimedia, Gigabit Ethernet, active device interface, data processing networks, telecommunication networks, asynchronous Transmission Mode (ATM). The MT series have low insertion loss and high precision guide pins exact alignment through adapter. There are two types of MT-RJ adapter, RJ-45 type and SC type, show as pictures. Either MT-RJ adapter or MPO adapter are black color and no sleeve design, single mode adapter and multimode adapter is the same.

Features:
1. Low insertion and back reflection loss, high precision alignment
2. Telcordia, TIA/EIA compliance
3. Compact design, Plastic housing
4. Simplex, Duplex
5. High temperature stability

Application:
1. CATV, LAN, WAN
2. Active device/transceiver;
3. Telecommunication networks;
4. Data processing networks;
5. Premise installation;
6. Gigabit Ethernet.
7. Test equipment
8. Passive optical fiber network

Specifications(MT-RJ,MPO adapter):

ITEM	PARAMETER
Applicative adapter type	MT-RJ, MPO
Adapter color	black
Test wavelength	1310nm, 1550nm, 850nm, 1300nm
Insertion Loss	typical≤0.20dB,Max≤0.30dB
Fiber core	MR-RJ:2; MPO:0~24
Repeatability	≤0.10dB
Interchangeability	≤0.20dB
Durability	≤0.20dB Max change,500 mating
Sleeve material	None
Adapter material	Plastic
Operating Temperature	-20ºC to +70ºC
Storage Temperature	-40ºC to +85ºC

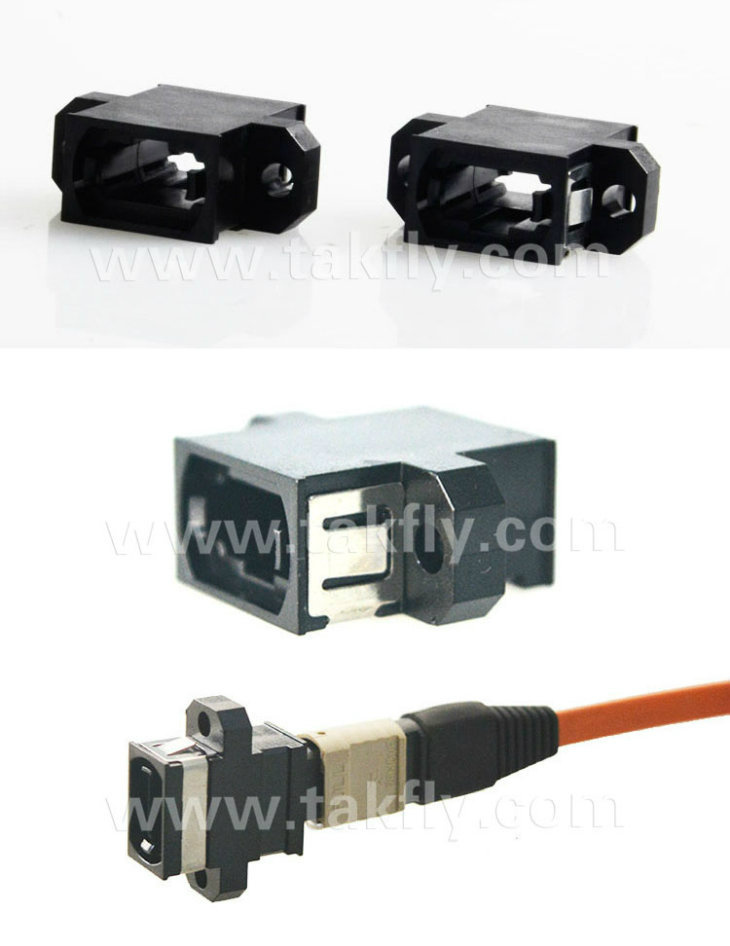

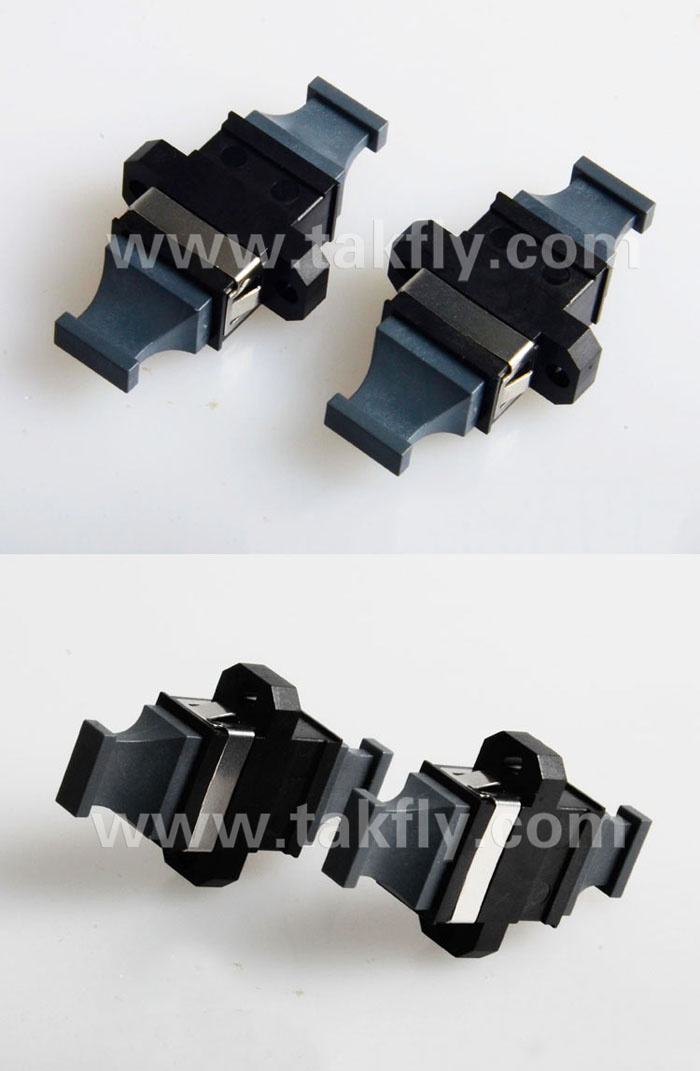

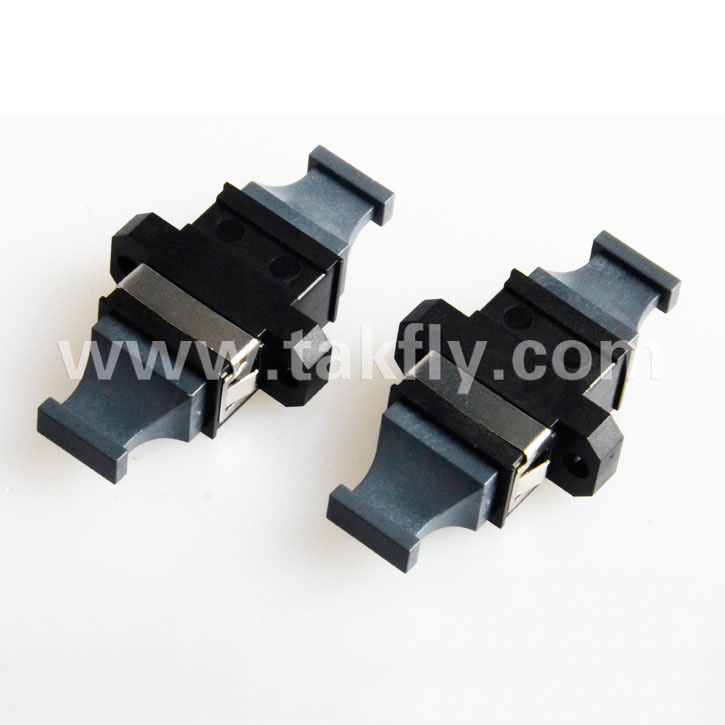

Product Show:

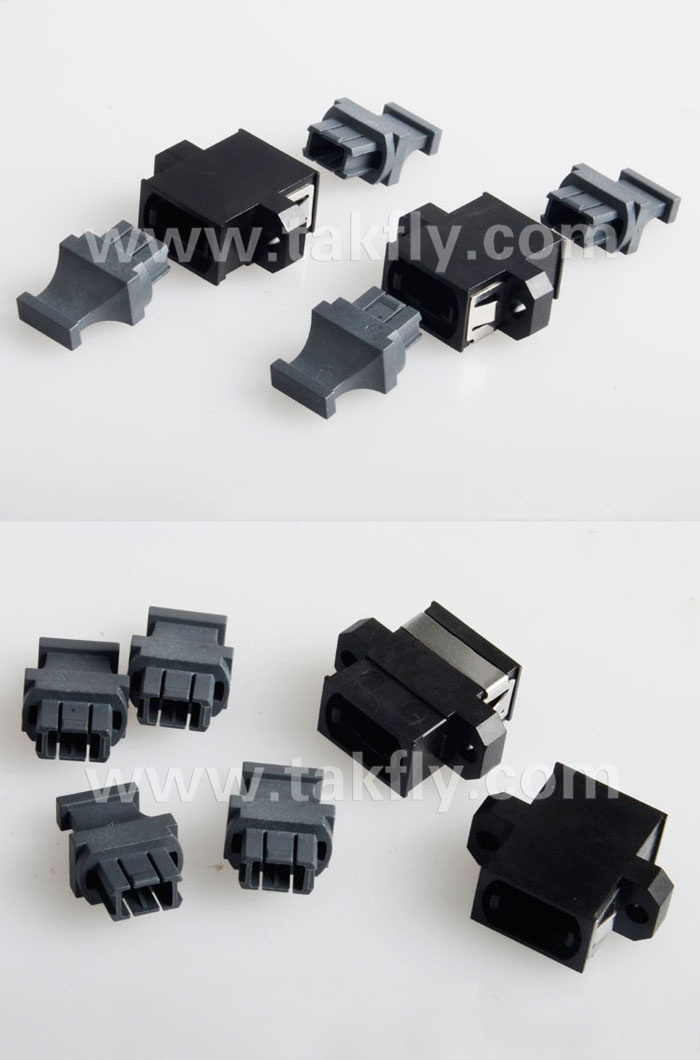

Other Adapters:

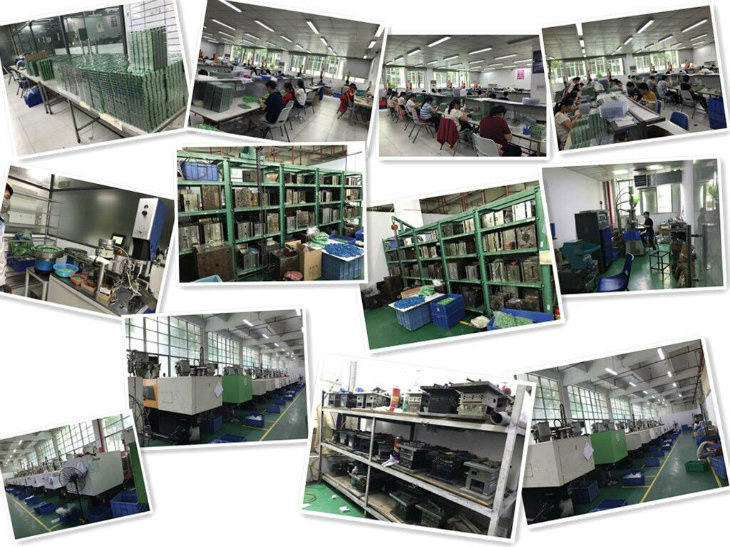

Workshop:

Contact:

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
