Sc Fiber Optic Fast Connector/Field Assembly Fast Connector

Name: Sc Fiber Optic Fast Connector/Field Assembly Fast Connector
Brand: all-electronics-online.com
SKU: 835430005
Availability: InStock
Rating: 4.7 (79 reviews)

Price:	US $ 1.3pcs
Min Order:	1pcs
Pay Type:	L/C,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	fast connector
Optical Fiber Diameter:	125u ( 652 & 657 )
Tight Buffer Diameter:	250
Fiber Mode:	Single Mode
Operation Time:	About 60s(No Fiber Cut)
Insert Loss:	Less Than 0.5dB(Typical 0.2dB)
Return Loss:	-55dB
Fastening Strength Of Naked Fiber:	>5 N
Tensile Strength:	>40 N
Using Temperature:	-40~+85c
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)

Product Description

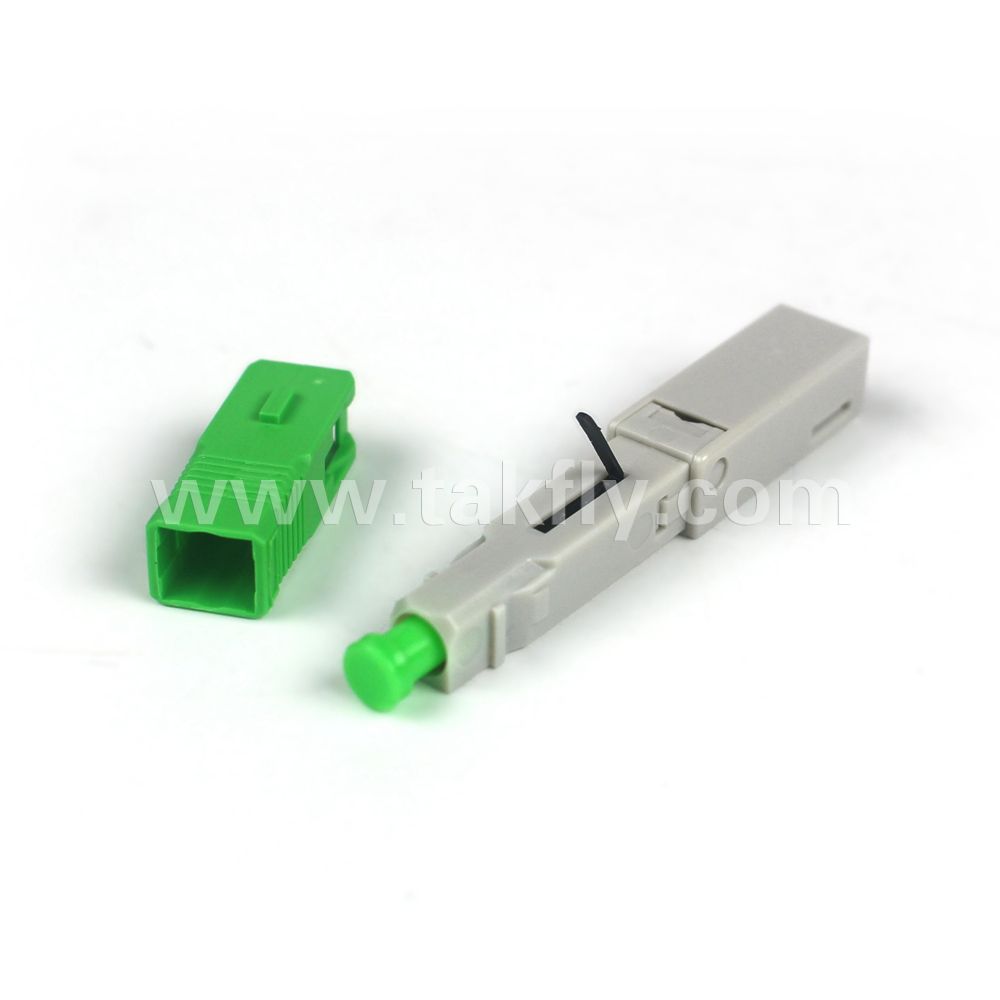

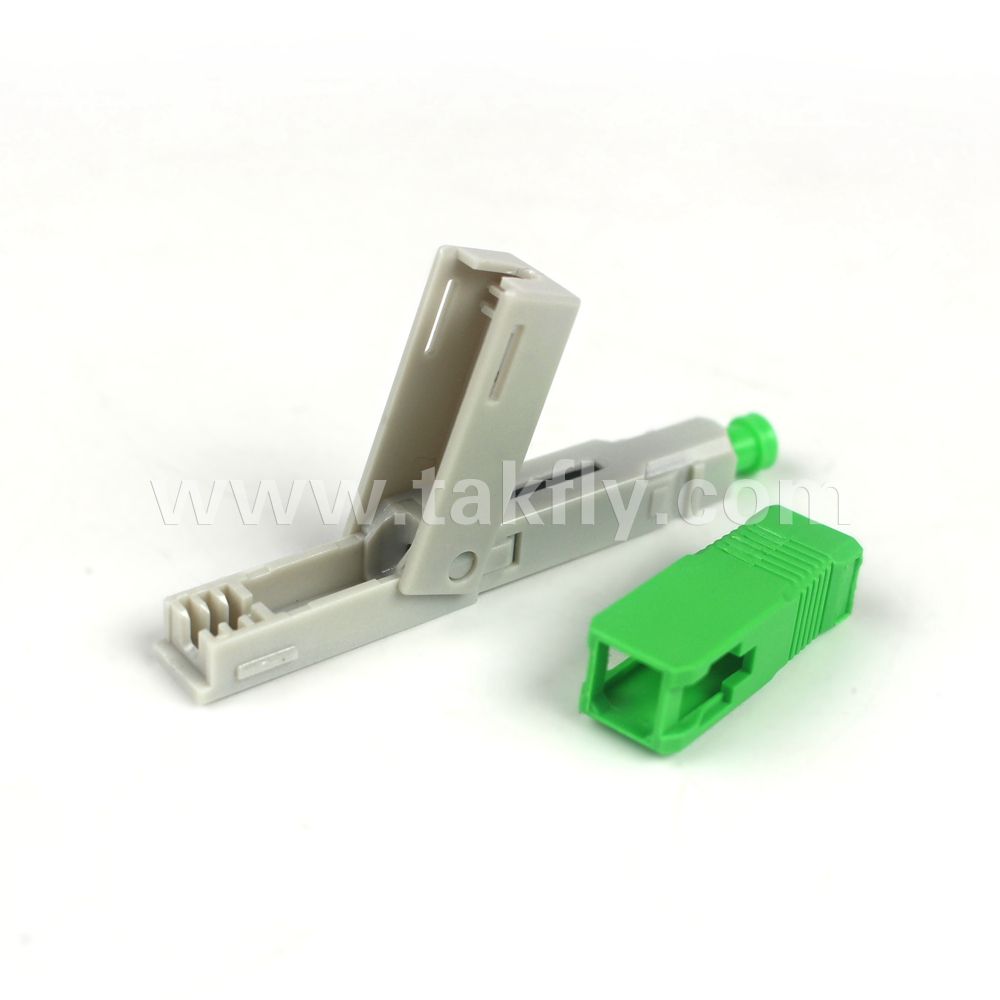

FTTH Sc/APC Sc/Upc Fiber Optic Quick Connector / Field Assembly Fast Connector

Fast fiber connector is used for field-installable optical fiber connector, widely used in Fiber To The Home (FTTH)
access optical networks, not only for single-mode or multimode fiber, and can also choose to 900um,3 mm
and the introduction of cable buffered type. With fast installation time and low insertion loss, the connector
system provides a good alternative to fusion splicing. Installation is as easy as strip, clean, cleave cam and crimp.

Application
· Connections at the desk for LAN environments
· Optical access network
· Fiber to the Subscriber (FTTX) applications
· Patch panels
· Direct equipment termination

Technical specification

Project	Technical Parameters
Optical Fiber	2.0mmx3.1mm Butterfly type
Plug Type	SC/APC
Diameter of Fibe	0.125mm
Fiber Mode	Single Mode
IL	<0.5db(0.2db typical)
RL	>55db
Tensile Strength	>40N
Themal Shock	IL <0.3db,RL<5db
Storage/Operating Temperature	-40°C~+85°C

Installation Instruction

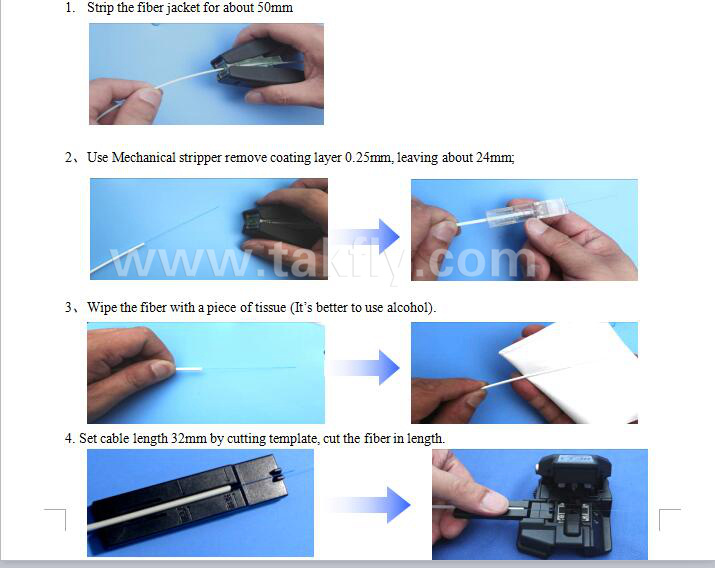

Step1:Fiber optic cable stripping

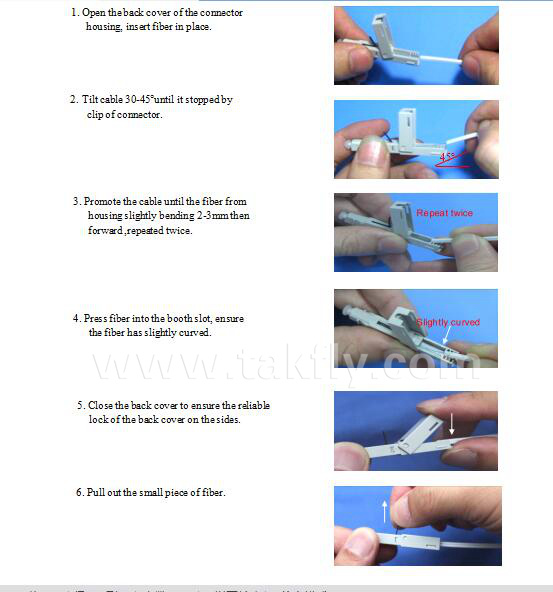

Step2:Fiber insertion and assembly

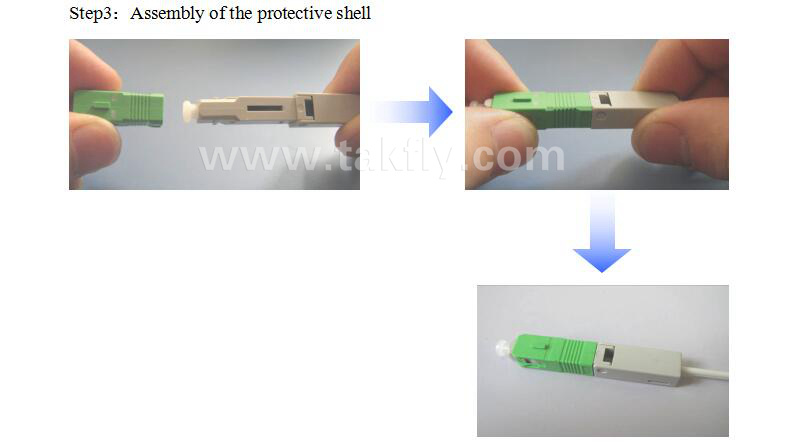

Step3:Assembly of the protective shell

For further information,please don't hesitate to leave me message !!
