| Place Of Origin: |
China (Mainland) |
| Model Number: |
2.0 or 3.0mm Patch Cord |
| Outer Sheath Color: |
Customized |
| Installation: |
Indoor |
| Outer Sheath Material: |
MDPE / HDPE / LSZH |
| Brand Of Fiber: |
Customized |
| Brand Name: |
Tw-Scie or OEM |
| Sheath: |
PVC/LSZH |
| Armour Material: |
Kevlar Yarn |
| Type: |
Fiber Optics |
| Connection Structure: |
Patch Cord |
| Allowed Lateral Pressure: |
>1000（N/100mm） |
| Allowed Tensile Strength: |
>10000N |
| Core: |
Multicore |
| Certification: |
CE, RoHS, ISO9001, UL |
| Sheath Material: |
LSZH |
| Connector Type: |
Duplex or Simplex |
| Application: |
Communication |
Product Description

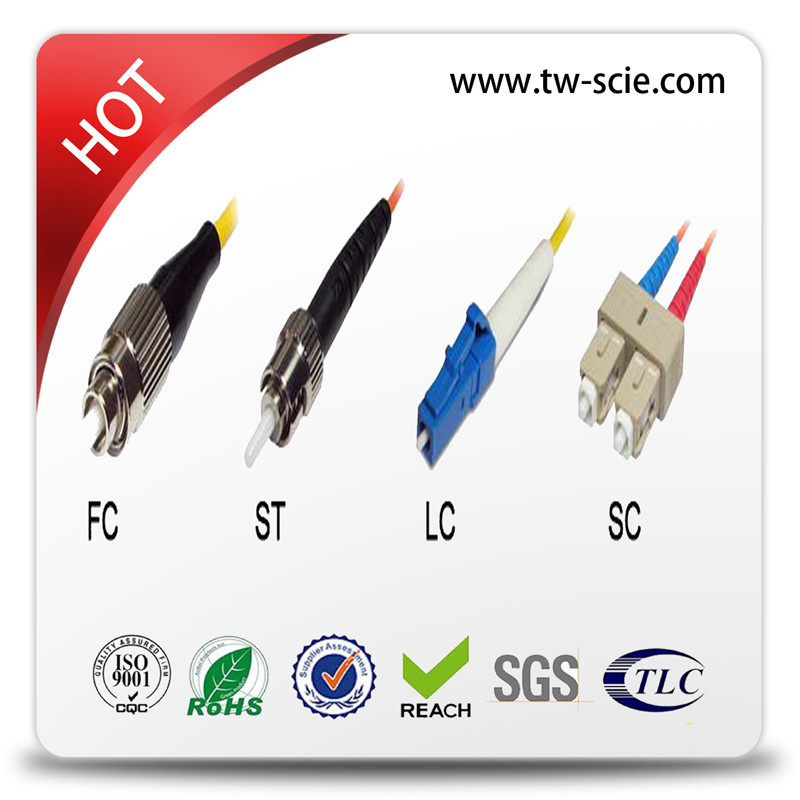

SC LC FC APC 0.9mm 2.0mm 3.0mm Simplex Singlemode Fiber Optic Connector
Product Description
Fiber Optic Connectors are an important component in a fiber optic network; they are used on
a fiber optic patch cord or pigtail with an adaptor to make connections. In order to achieve
accurate and precise connections of the fiber ends, very high quality ceramic components are
used. Fiber optic connectors made with precision and high quality ceramic components provide
a high reliability connection when used with the various adapters. We make sure that every
connector that leaves our production is tested and performs as per the international standards.
Standards Compliance
. UL-V0 ammability rating
. TIA/EIA-568-C.3 (Optical Fiber Cabling Components Standard)
. ANSI/TIA/EIA-455B (Standard Test Procedure for Standard Fiber Optic Fibers,
Cables, Connecting & Terminating Devices, and Other Components)
. IPC-8497-1 (Cleaning Methods & Contamination Assessment for Optical Assembly)
Features
. High quality ceramic components and Material
. End-face geometry requirement complies to Telcordia GR-326-CORE
. 100% tested on optical performance (Insertion Loss & Return Loss)
. Simplex, duplex and higher core densities
. 900 micron, 2mm, 3mm cable applications
Design & Materials| Connector Ferrule | Ceramic |
| Alignment Sleeve | Ceramic |
| Connector Body | UL 94V-0 rated Thermoplastic
to meet standard ammability ratings |
| Crimp Insert/Crimp Tube | Nickel-Plated Brass/Thermoplastic
Elastomer Polymer |
| Dust Cap | Nylon or PVC |
| Strain Relief Boot | Flame retardant (UL-Rated 94-V0) polymer |
| Connector Style | SC, FC, ST, LC, MTRJ, |
| Polish | PC, UPC, APC |
| Capillary Diameter Tolerance | 126 ± 0.5μm(Single Mode), 127 ± 0.5μm (Multimode) |
| Ferrule Diameter | 2.5 ± 0.001mm(FC,SC,ST),
1.25± 0.001mm (LC) |
| Operating Temperature | -40 to +85º C |
| Storage Temperature | -40 to +85º C |
| Temperature Cycling (61300-2-18) | -40 to +75º C, 40 cycles=0.2dB change |
| High Temperature (61300-2-18) | 70c for 96Hrs, <0.4dB change |
| Damp Heat(61300-2-19) | 40º C at 93%RH for 96 Hrs, <0.4dB change |
| Vibration-Mated Pair (61300-2-1) | 10-55Hz, 1.5mm P to P <0.2dB change |
| Mating Durability (61300-2-2) | 500 Mating Cycles, clean every 25, <0.2dB change |
| Item | Single mode | Multimode |
| PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G |
Insert Loss/connector
(single Fiber) | 0.3dB Max. (0.2dB typ.) | 0.3dB Max. (0.2dB typ.) |
| Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | PC≥35dB |
| Insert Loss/MTRJ Connector | 0.5dB Max. (0.45dB typ.) | 0.5dB Max. (0.45dB typ.) |
| Pull Strength | ≥98N | ≥98N |

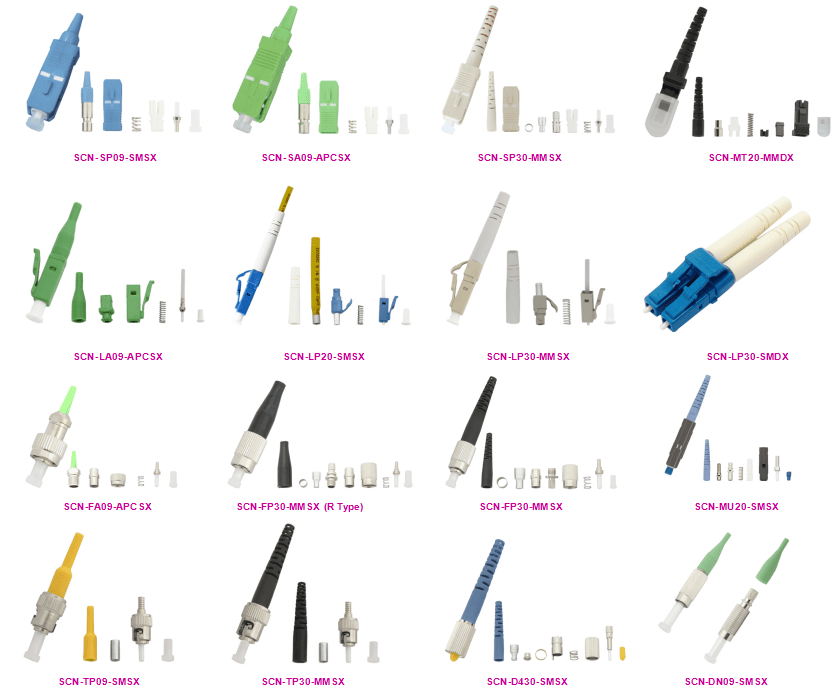

| FP | FC/PC, FC/UPC | FA | FC/APC | MU | MU |
| SP | SC/PC, SC/UPC | SA | SC/APC | MT | MTRJ |
| TP | ST/PC, ST/UPC | TA | ST/APC | DN | DIN |
| LP | LC/PC, LC/UPC | LA | LC/APC | E2 | E2000 |
DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
