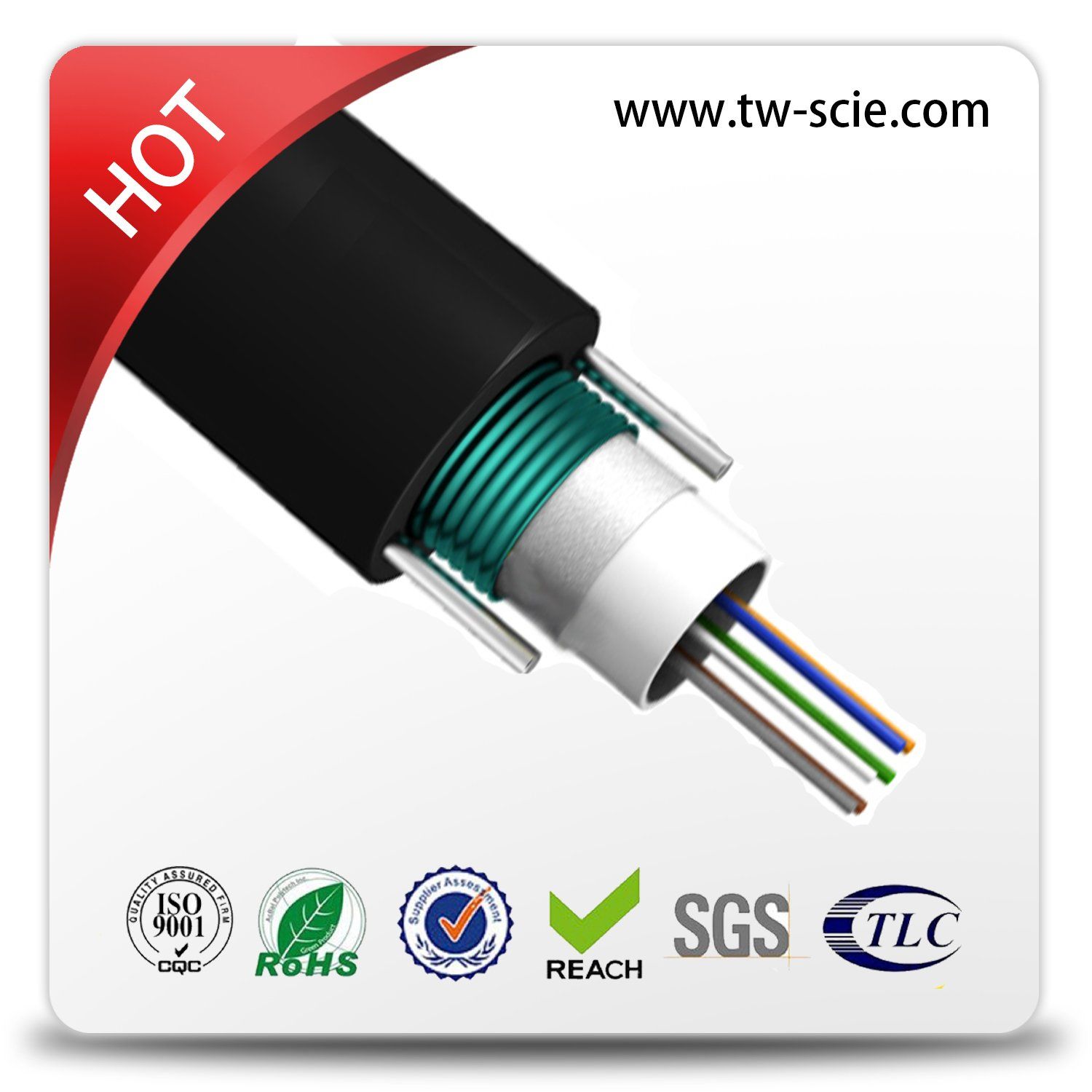

Self-Supporting Aerial Fiber Optic Cable Single Mode Communication/Telecom Cable

Self-Supporting Aerial Fiber Optic Cable Single Mode Communication/Telecom Cable
Price: US $ 0.3/Meter
Trade Terms: FOB,CFR,EXW
Min Order: 2000/Meter
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Contact Supplier
Showroom Product Company Profile
Prod Model: GYXTC8S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Messenger Material: Steel Wires
Jacket Material: Black PE
No. Of Tubes: 2-24 Core
Cable Type: Aerial Cable
Sheath Color: Black
Strength Member: FRP or Steel
Fiber Brand: Corning ,Yofc
Loose Tube: 1
Application: Communication
Type: Single-mode Fiber
Certification: ISO9001
Connection Structure: Self-Supporting Fiber Optic Cable
Sheath Material: HDPE/MDPE

Product Description

Self-Supporting Aerial Fiber Optic Cable Single Mode Communication/Telecom Cable


Fiber Optic Cable GYXTC8S Features:

1.Low dispersion and attenuation.
2.Proper design, precise control for fiber excess length render the cable excellent mechanical and environmental characteristics.
3.The armoring of steel wire makes cable have excellent tensile strength and nice crush resistance performance.
4.Steel-PE sheath makes cable have nice moisture resistance performance.
5.Small cable diameter, light cable weight, self supporting, easily to install.


Fiber Optic Cable GYXTC8S General Specifications:


Cable typeApplication
-GYXTC8SAerial Self-supported installation cable

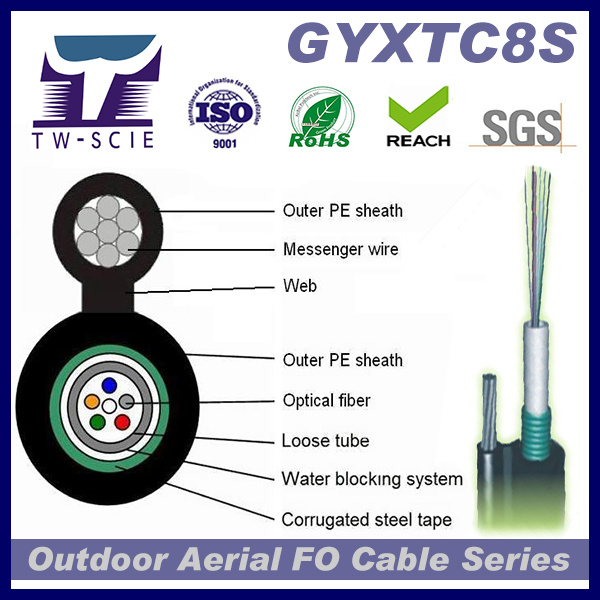

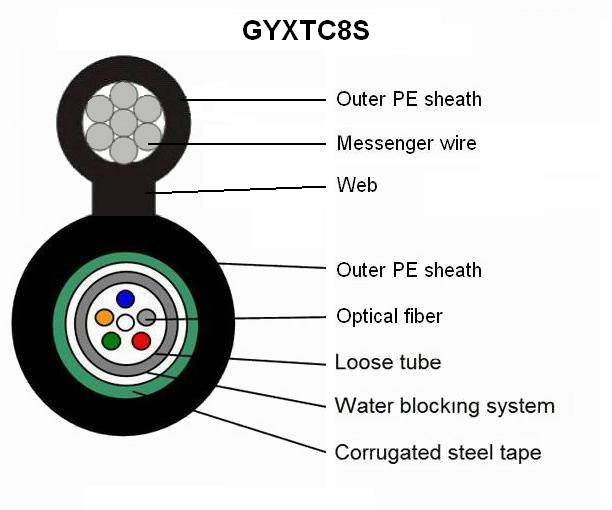

Fiber Optic Cable GYXTC8S Cable Structure:


Fiber Optic Cable GYXTC8S Cable Design:

Dimension and Properties
General propertiesUnitNominal value
Fiber count (G.652D)
 		PCUp to 12
Max. No of loose tube PC1
Fiber No. per tubePC12
Loose tubeMaterialPBT
Cable Diametermm5.0*7.4
Menssenger WireMaterialSteel wire
Outer PE SheathDiametermm2.0
 Material MDPE
Max. allowable pulling forceN1000/3000
ArmouredMaterialCorrugated steel tape
Crush resistanceN/100mm1000/1500


Fiber Specifications:

G652D In cable



Category

Description
Specifications

Before cabling
After cabling
Optical
Specifications
Attenuation @1310 nm		≤0.34 dB/km (max.)≤0.36 dB/km (max.)

Attenuation @1550 nm		≤0.20 dB/km (max.)≤0.22 dB/km (max.)

Attenuation @1625 nm		≤0.23dB/km≤ 0.25 dB/km

Zero Dispersion Wavelength
1300~1324 nm

Zero Dispersion Slope		≤ 0.090 ps/nm2·km
PMD Link value (M=20cables Q=0.01% )
maximum PMDQ
0.2 ps/√km

Cable Cutoff Wavelength (λcc)		≤1260 nm
Macro bending Loss
(1 turn; Ф32 mm) @1550 nm
(100 turns; Ф60 mm) @1625 nm
(100 turns; Ф50 mm) @1310 &@1625 nm

≤ 0.05 dB
≤ 0.05 dB
≤0.05 dB

Mode Field Diameter		@1310 nm
9.2±0.4μm
@1550 nm10.4±0.5μm


Dimensional
Specifications
Cladding Diameter
125 ±0.7μm

Core/clad concentricity error		≤0.5μm

Cladding Non-Circularity		≤1.0%
Mechanical
Specifications
Proof stress
≥0.69Gpa




Fiber Optic Cable GYXTC8S More Pictures:

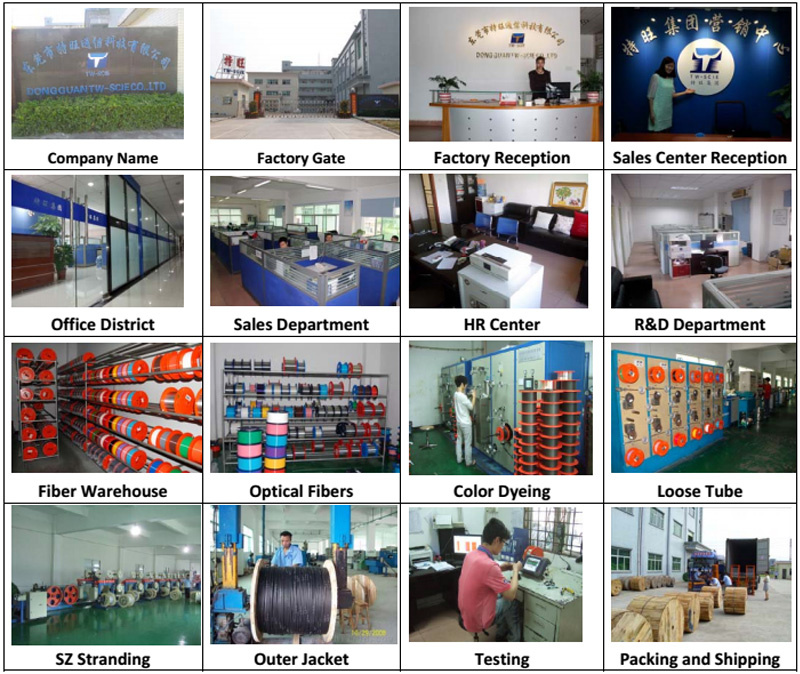

Company Overview:

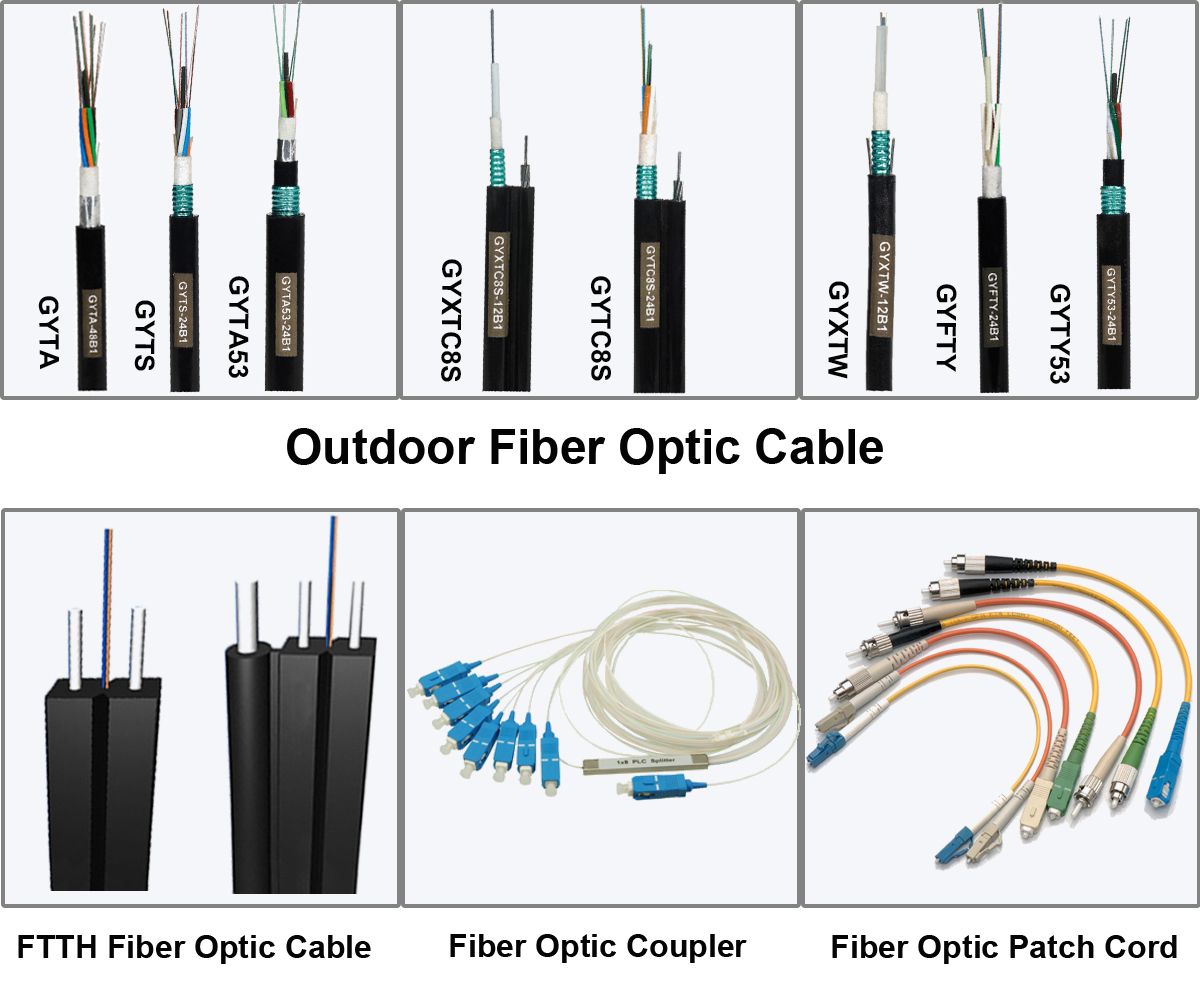

Related Products:
