Sc/LC/FC/St Armored Fiber Optic Patch Cord

Prod Model:	SC/LC/ST/FC/MPO/MU
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Products:	Sc/LC/FC/St Armored Fiber Optic Patch Cord
Factory:	Yes
Quality Control:	100% Test
Connector:	Sc/LC/St/FC/MPO/Mu
Length:	1/2/3/4/5/6/7/8/9/10 as Your Required
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	LC
Certification:	CCC

Product Description

Why our customers choose us for their custom cable assembly needs:
Zero-Defects QA Program
High Quality Materials
Advanced Equipment & Tooling
In-house Engineering
Expert Technical Support
100% Product Testing
100% Product Guarantee
Fast Turn Around
Same-Day Manufacturing Available

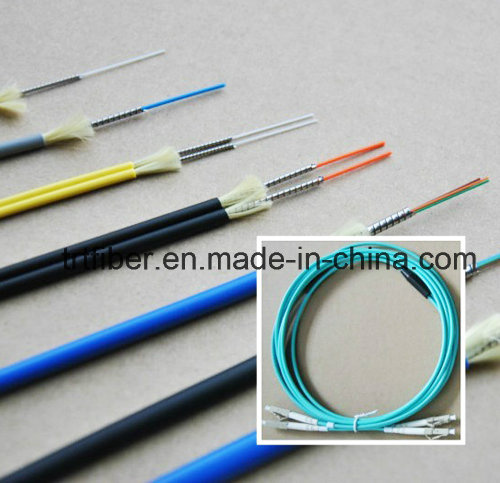

Fiber optic armored cable which layer of spiral stainless steel around the optical fiber.with Small,
stronger resist shock ,light weight,more flexible,stronger pressure ...etc  excellent environmental
characteristics to protect the high-speed network from animal bits and other bad situation.

Features

 1.Mouseproof, Anti-Tensile,Anti-pressure,
2.Resistant  Improper reverse bending damage,
3.Easy Construction,
4.Saving maintenance costs;
5.Adapt to harsh environments and man-made damage.

Application

1.Pigtails and patch cords
2.Connections of optical communication equipment rooms, distribution frames and FTTX
3.Optical appliances connection
4.Indoor horizontal or vertical cabling, multi-medium connection, LAN
5.Connections of long distance, outdoor, building cabling, combination cabling of fiber optic and electronic
6.Telecommunication
7. CATV
8. Network
10. Broadband

Available :
Simplex/Duplex patch cord available
Fan-out available
Pigtail available
Various boot(cable) sizes available
FC/LC/SC/ST/MTRJ/MPO connectors available
LSZH and PVC cable

Specification:

Parameter		Single Mode				Multi Mode
Basic	Fiber connector	FC, SC, LC, ST, MU, MTRJ, MPO, E2000
	Ferrule End-face	PC	UPC	APC		UPC
	Insertion Loss	≤0.2dB	≤0.2dB	≤0.3dB		≤0.3bB
	Return Loss	≥50dB	≥55dB	≥60dB		≥35dB
	Ceramic Ferrule Specification	125.5um concentricity deviations:<=1um				127um concentricity deviations:<=3um
	Suitable Fiber	9/125um				50/125um,62.5/125um
End-face Geometry	Radius of Curvature	7~25mm		5~12mm		N/A
	Fiber Protrusion	≤50nm		≤100nm		N/A
	Fiber Under Cut	≤100nm		≤100nm		N/A
	Apex offset	≤50um
Mechanical	Exchangeability	≤0.2dB
	Salt Spray	≤0.1dB
	Drop	≤0.2dB(1.5M, 5 drops)
	Vibration	IL ≤0.2dB(550Hz, 1.5mm)
	Repeatability	≤ 0.1dB(1000 times)
	Durability	> 1000 times
	Operating Temperature	-40°C ~ +85°C

Packing:  1pc/PE bag,  Bag Size: 18x22cm

Details Image:
