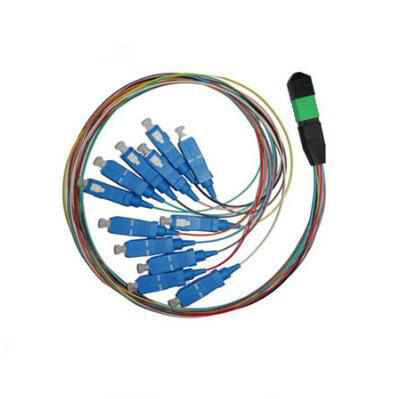

Sc-MPO Multimode 50/125 Fiber Jumper Cables

Name: Sc-MPO Multimode 50/125 Fiber Jumper Cables
Brand: all-electronics-online.com
SKU: 770868575
Availability: InStock
Rating: 4.8 (75 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC-MPO
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sc Fiber Jumper:	MPO Patch Cord
Sc Fiber Jumper Cables:	Fiber Patch Cord
Fiber Optic Cable:	Optical Fiber
Application:	Communication
Type:	Multi-mode Fiber
Certification:	CE
Connection Structure:	Sc-MPO

Product Description

MPO to SC Fiber Optical Patch Cord 12 Fiber For MPO Cassettes

Features:

MPO patch cords are available in 3 different wire map configurations: Straight, Total Flipped or Pair Flipped
MPO connector complies with IEC-61754-7 & EIA/TIA-604-5.
MPO patch cables are available in multi-mode and single-mode fiber cable.
Small Form Factor, 12Fibers or 24Fibers push/pull optical connectors
Jacketed cable is compliant with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating, compliant with Directive 2002/95/EC (RoHS) and REACH SvHC.
100% tested (test data supplied) - Assures verified optical performance for improved network integrity.

Applications:

Performance of Assemblies MTP / MPO Termination

Specification:

Type/Performance	Singlemode(APC polish)		Multimode(PC / Flat Polish)
	Standard	Elite Low Loss	Standard	Elite Low Loss
Maximum Insertion Loss	≤ 0.75dB	≤ 0.35dB	≤ 0.60dB	≤ 0.35dB
Return Loss	≥ 50dB		N/A
Operating Temperature	-40°C to 80°C		40°C to 80°C
Test Wavelength	1310nm		850nm

Packing:

PE bag with stick label (we could add customer's logo in the label.)

Shipping:

Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
Airport to Airport: by air
Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

Our service:

All products are 100% fully tested by our technical expertise.
Standard and customized OEM products from small to large quantity are welcome.
Compliance with global environmental industry with RoHS and SGS standards.

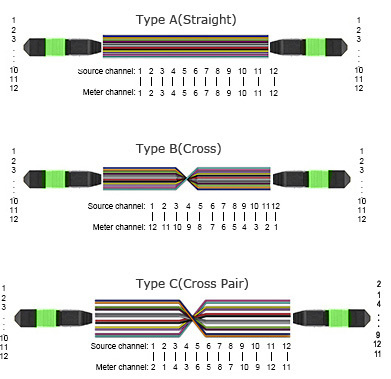

Fiber Management of MPO patch cord:

A Straight-Through MPO Trunk Cable:
Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x .A to A Duplex Patch Cable.

B Cross MPO Trunk Cable:
Key-Up to Key-Up Adapters and 2 x .A to A Duplex Patch Cable.

C Cross Pair MPO Trunk Cable:
Key-Up to Key-Down Adapters and 2 x .A to A Duplex Patch Cable.

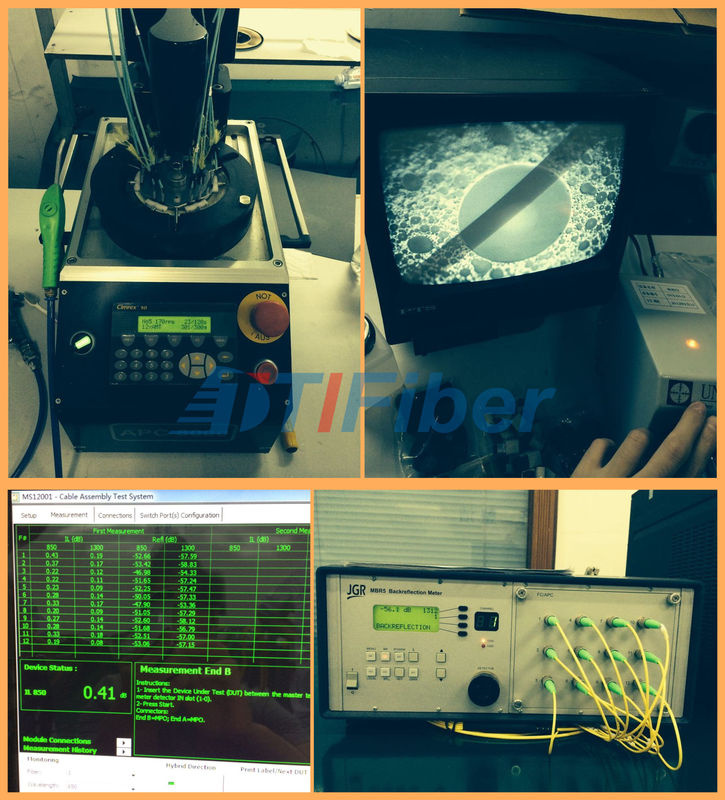

Testing:

Shenzhen TRT Fiber Tech. Co., Ltd is specialized in R&D, manufacturing and marketing of fiber optic such as fiber optic cable, fiber optic patch cord/jumper, fiber pigtail, fiber connector, fiber adapter, fiber attenuator, fiber patch panel, ODF, fiber splice closure and other related fiber products.

With a powerful R&D team, TRT Fiber is able to manufacture products according to customer's specifications and requests, even with customized raw materials. We not only offer OEM service, but also help many partners from all over the world to win in the market with professional technical support, excellent product solution, competitive prices, fast delivery and good service. We ensure every piece of our fiber optic products is with excellent performance and appearance.

TRT has been putting a lot of investments to keep pace with fiber optic industry standard. With high quality raw materials, advanced manufacturing equipments and highly skilled workers, we ensure every piece of our fiber optic products is with excellent performance and appearance.

Welcome to be TRT business partners, we are sure to bring you more profits. Thank you.
