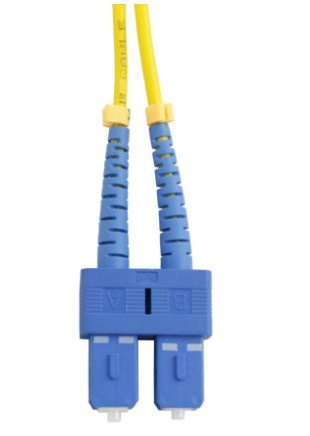

SC Multimode 24 Cores Fiber Optic Pigtail

Name: SC Multimode 24 Cores Fiber Optic Pigtail
Brand: all-electronics-online.com
SKU: 722982725
Availability: InStock
Rating: 4.3 (79 reviews)

Price:	US $ 12/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	OM1-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Any Length Is Ok:	Boots Colors Can Be Customized
Cable Diameter Can Be Customized:	Cable Jacket PVC or Lszh Can Be Chose
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC
Certification:	ISO9001

Product Description

Features of Fiber Optic Pigtails:
1) Superior qualified standard PC, APC, UPC polishing;
2) 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC);
3) 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC);
4) φ0.9mm, φ2.0mm, φ3.0mm cable optional;
5) Single mode (9/125) or multi mode (50/125 or 62.5/125) fiber available;
6) FC, SC, LC, MU, ST, MT-RJ, etc connector options
7) Simplex and duplex connector available;
8) Good exchange ability and good durability;
9) Available in fiber bunch, ribbon fan-out, pigtail available;
10) Meets ISO9001, ROHS and Bell core GR 326-core standards;
11) Customized specifications are welcomed.

Applications of Fiber Optic Pigtails:
1) CATV, metro test equipment;
2) Telecommunication networks;
3) Local area networks (LAN);
4) Wide area networks (WAN);
5) Premise installations;
6) Data processing networks;
7) Video and military active device termination.

Spec.	fiber optic patch cord / fiber cable
Insertion loss	Less than 0.5dB
Return loss	MM more than 35dB
	SM more than 55dB
	APC more than 60dB
Repeatability	Less than 0.2dB
Changeability	Less than 0.1dB
Operting termperature	-40~75
Storage temperature	-40~75
Tensile strength	100N
Min. bending radius	35mm
Length	Customized

Shenzhen TRT Fiber Tech. Co., Ltd is specialized in R&D, manufacturing and marketing of fiber optic such as fiber optic cable, fiber optic patch cord/jumper, fiber pigtail, fiber connector, fiber adapter, fiber attenuator, fiber patch panel, ODF, fiber splice closure and other related fiber products.

With a powerful R&D team, TRT Fiber is able to manufacture products according to customer's specifications and requests, even with customized raw materials. We not only offer OEM service, but also help many partners from all over the world to win in the market with professional technical support, excellent product solution, competitive prices, fast delivery and good service. We ensure every piece of our fiber optic products is with excellent performance and appearance.

TRT has been putting a lot of investments to keep pace with fiber optic industry standard. With high quality raw materials, advanced manufacturing equipments and highly skilled workers, we ensure every piece of our fiber optic products is with excellent performance and appearance.

Welcome to be TRT business partners, we are sure to bring you more profits. Thank you.
