SC/PC Adapter Type Fiber Optic Attenuator

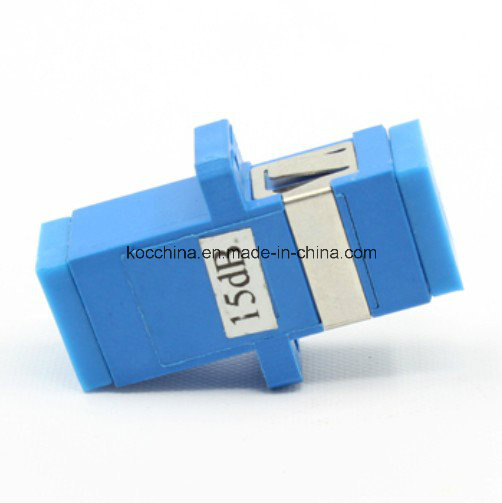

Name: SC/PC Adapter Type Fiber Optic Attenuator
Brand: all-electronics-online.com
SKU: 791871885
Availability: InStock
Rating: 4.7 (124 reviews)

Price:	US $ 2.5-2.6/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC
Attenuation:	0~30dB
Houing Material:	Metal
Attenuation Accuracy:	+/-0.5 to +/-1.0
Dust Cap Color:	White,Green
Wavelength:	1310nm;1550nm
Mode:	Female-Male
Bandwidth:	1250~1650nm
Packaging:	Bag
Application:	Medicine
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Brand:	Koc

Product Description

Product Description
Brief Introduction
This series of fixed attenuator has the same appearance as a regular adapter. It achieves attenuation of optical signal by setting up an attenuation film inside adapter to ensure incomplete touch of connectors it combines The attenuator can be applied for connection of patch cords in optical links
and it comes in different types such as SC LC FC and ST The product is only suitable for connectors with PC type ferrule end face. Generally, its attenuation can be 3,5,7,10,15 and 20dB which are applicable for optical signal with wavelength ranging from 1,250nm to 1,600nm

Feature
1.High quality ceramic ferrule
2.Excellent IL and high return loss
3.Good exchangeability and durability
4.High temperature stability
5.All parts compliant with ROHS

Applications
1.Active device termination
2.Test equipment
3.Passive optical fiber network
4.Data processing network
5.Telecommunication network
6.CATV, LAN, WAN
Specifications

Attenuator type:	SC(Apply to UPC connector)
Attenuation range:	3,5,7,10,15,20dB
Test wavelength:	1310nm or 1550nm
Repeatability:	≤0.20dB
Operating Temperature:	-40ºC to +85ºC
Storage Temperature:	-40ºC to +85ºC

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.

About KOC

Located in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.

Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!

To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.

To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.

Please visit us website for more information: http://www.koc.com.cn
