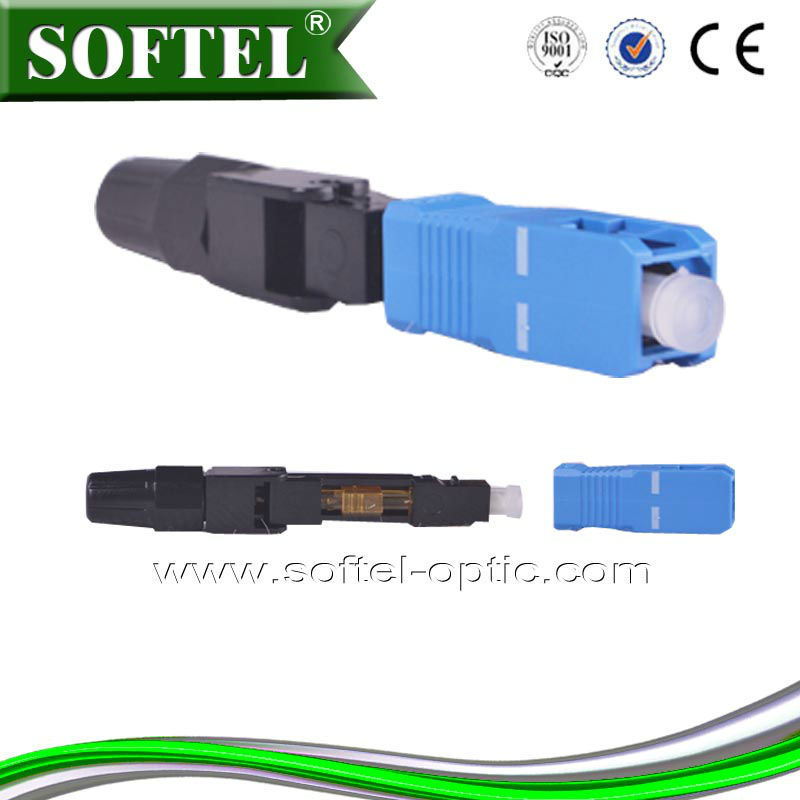

SC/PC Blue Field Fiber Optic Fast Connectors

Name: SC/PC Blue Field Fiber Optic Fast Connectors
Brand: all-electronics-online.com
SKU: 618493792
Availability: InStock
Rating: 4.9 (133 reviews)

Price:	US $ 1.5-2.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Optic Fast connectors
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item Name:	Optic Fiber Connector
MOQ:	100
Delivery Time:	About 10days
Working Temperature:	-40°c~+75°c
Fast Connector Application:	FTTH Project
Fast Connector Return Loss:	>40 dB
Warranty:	1 Year
Lead Time:	Depended by Qty
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Brand:	Softel

Product Description

SC/PC Fiber Optic Connector-Fiber Direct through Tech
Application
FTTx, Data Room Transformation

Technical specification

Item	Parameter
fiber Scope		0.9mm tight buffer
Size:		43.5 mm
Fiber Diameter		125μm ( 652 & 657 )
Coating Diameter		250μm
Mode		SM
Operation Time		about 60s(exclude fiber presetting)
Insertion Loss		≤ 0.2dB(1310nm & 1550nm)
Return Loss		≤ -50dB
Success Rate		>98%
Reusable Times		unlimited
Tighten Strength of Naked Fiber		>5 N
Tensile Strength		>40 N
Temperature		-40 ~ +85 C
On-line Tensile Strength Test (20 N)		IL ≤ 0.3dB
Mechanical Durability(500 times)		IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)		IL ≤ 0.3dB

Relevant Solutions

Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project.With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design.Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.
-------------END-----------

Hangzhou Softel Optic Co., Ltd. (Brand: SOFTEL) was established in 2006, which Located in the HangZhou Hi-Tech Development Zone. Taking advantage of the modern broadcast and optic fiber communication technology, we are specializing in R&D of CATV system equipment, and leading manufacturer of HFC broadband Optic Transmission equipment with strong R&D capability in this field.

We have more than 100 staff in which 10% of senior technicians. It has more than 1, 000 square meters standards production assembling line, we have strict QC procedure, each unit of our products will go through 3 layer QC procedure, material checking before production, stability and performance testing after production, packing checking before delivery.

Currently, we supplying to numerous agents, integrated dealers and equipment producers all over the world, most of our products move to South America, Russia and north European countries.

Through keen international business competition in good faith, all of our staffs feel big accomplishment & work under heavy responsibility. In addition, we are much proud of providing our invaluable customers with our high quality, high reliability, high efficiency, competitive products.
