Zhengzhou Yifang Cable Co., Ltd. >> Sc Power Cable

Sc Power Cable

Name: Sc Power Cable
Brand: all-electronics-online.com
SKU: 710853812
Availability: InStock
Rating: 4.7 (101 reviews)

Price:	US $ 0.1/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Name:	XLPE Insulated Medium Voltage Concentric Neutral C
Application:	Underground
Current:	AC Cable
Insulation Material:	XLPE
Certification:	ISO
Voltage:	5-46kv

Product Description

Underground Distribution Cable

Supply power

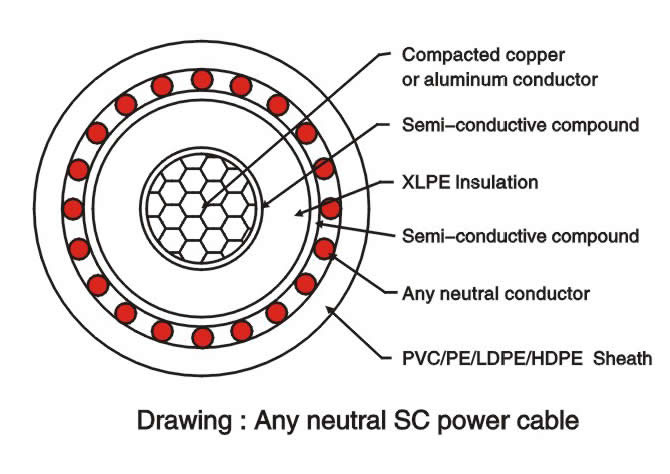

Constructions:

Conductor: Copper or aluminum

Insulation: XLPE/TRXLPE

Neutral concentric copper wire

Sheath: PE

Standard: UL IEC

AWG		kcmil
Conductor size	Nominal cross-sectional area mm2	Conductor size	Nominal cross-sectional area mm2
20	0.519	250	127
18	0.823	300	152
16	1.31	350	177
14	2.08	400	203
12	3.31	450	228
10	5.26	500	253
8	8.37	550	279
6	13.3	600	304
4	21.2	650	329
3	26.7	700	355
2	33.6	750	380
1	42.4	800	405
1/0	53.5	900	456
2/0	67.4	1000	507
3/0	85	1200	608
4/0	107.2	1500	760
		1750	887
		2000	1010

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
