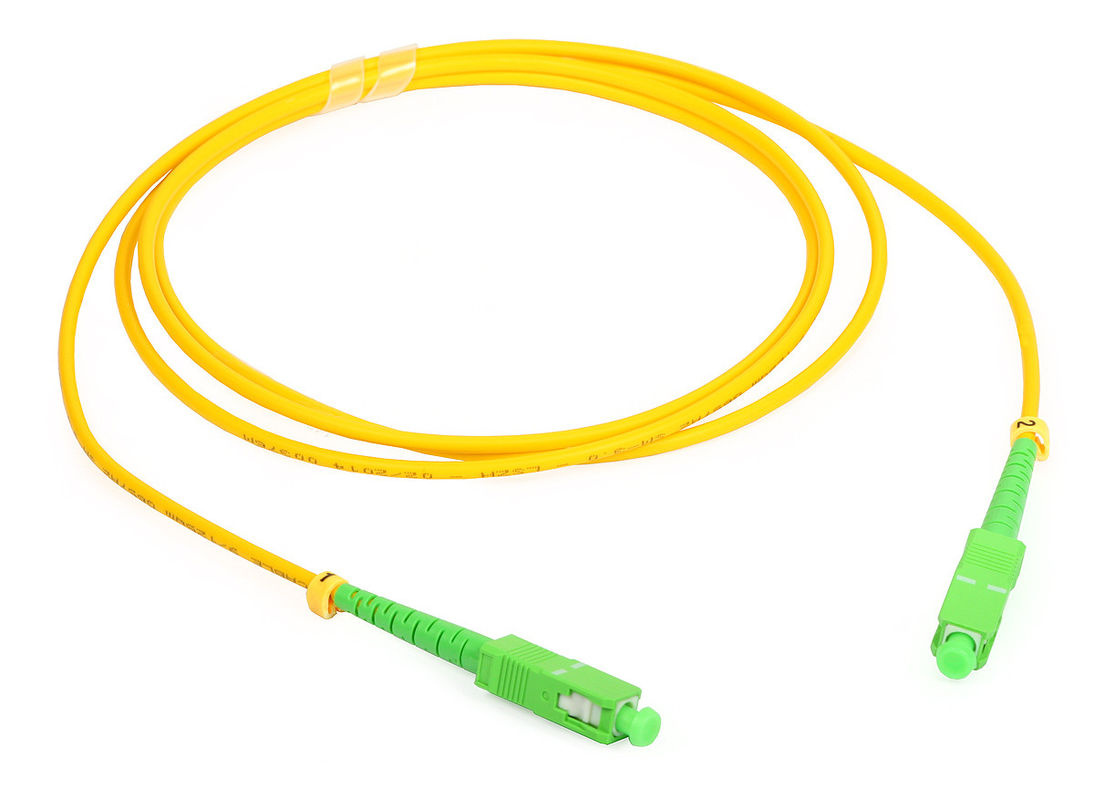

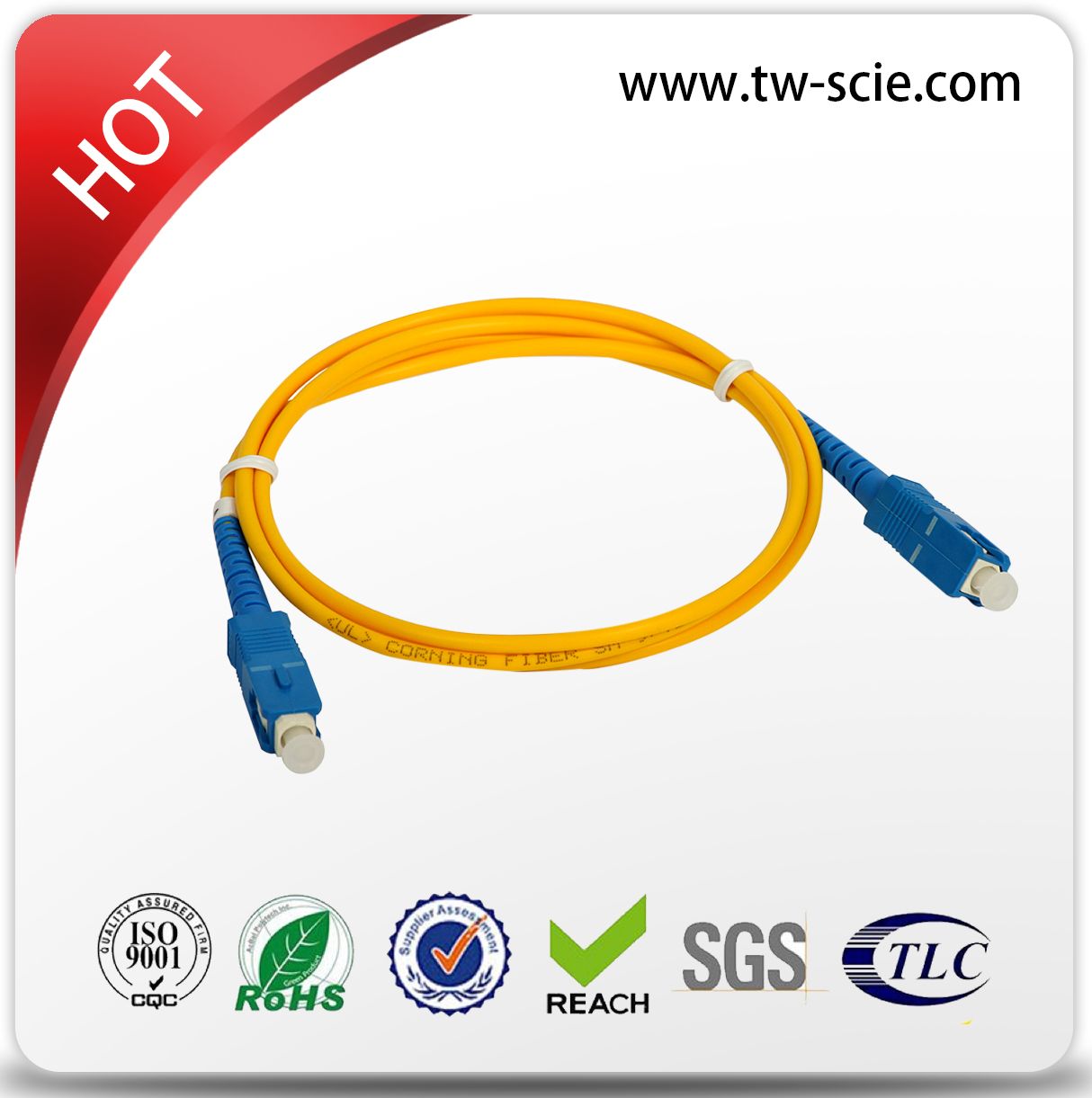

Sc-Sc Patch Cord Simplex/Duplex Single Mode Sc Fiber Patch Cord

Prod Model:	Fiber Patch Cables
Outer Sheath Color:	Black
Outer Sheath Material:	PE
Application:	Communication
Certification:	ISO9001
Type:	Patch Cord
Brand:	Tw-Scie

Product Description

SC-SC Patch Cord Simplex/Duplex Single Mode Sc Fiber Patch Cord








 Quick Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: DYS/OEM
Model Number: SC
Fiber Type: SM
Inserion Loss: <0.2db
Return Loss: >45db
Color: Yellow
Length: Customize
Certifaction: ISO9001, ROHS

Applications:
1.Access Network
2.Telecom/CATV Systems
3.FTTX/FTTH/FTTA


Specifications:

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag

Competitive Advantage:
TW enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; And good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
