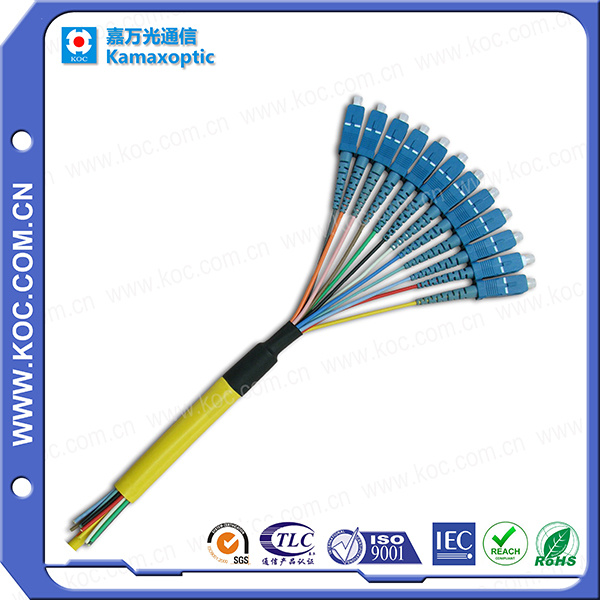

Sc Singlemode 12 Fiber Optic Patch Cord

Sc Singlemode 12 Fiber Optic Patch Cord
Price: US $ 1/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: T/T
Prod Model: SC
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IEC 61754-7 Compliant: Compact Design, up to 24 Fiber Ribbon
Length: 0.5m, 1m,2m or Customized
Cable Type: Mini Cable
Cable Jacket Color: Blue, Beige, Aqua, Black, Green, Yellow,Customized
Housing Material: Plastic
Connector: Sc
Structure: SC
Number Of Cores: Multi-Core
Transmission Medium: Singlemode, Multimode
Ferrule Endface: APC/PC
Shape: Round
Brand: ODM

Product Description


Product Description
APPLICATIONS
CATV
Telecommunication networks
Active device termination
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)

FEATURES
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-326-CORE

AVAILABILITY
Simplex/Duplex patch-cord available
Fan-out available
Pigtail available
Various boot (cable) sizes available



Single modeMultimode
Insertion LossTypical <=0.2dB, Maximum<=0.3dB≤0.25dB
Return Loss≥50 dB (PC)
≥60 dB (APC)


Repeatability≤0.1

Durability≤0.2 dB typical change, 1000 matings

Interchangeability≤0.2dB

Tensile strength>70N

Operating Temperature-40 to + 85°C-40 to + 85°C


ORDERING OPTIONS


Connector Color
Boot (cable) SizeBoot ColorFiber TypeCable numberApplicationLength
Beige0.9mmBeige9/125μm (SM)SimplexPCCustomized
Blue2.0mmBlack50/125μm(MM)DuplexAPC

Green3.0mmBlue62.5/125μm(MM)Fan-out (4f)







Green

Fan-out (6f)







Gray

Fan-out (8f)







Red

Fan-out (12f)







White
