| Prod Model: |
SC(PC)-DM-DX |
| Connector Type: |
Sc |
| Fiber Core: |
Duplex |
| Test Wavelength: |
850nm,1300nm |
| Insertion Loss: |
Typical≤0.15dB,Max≤0.20dB |
| Channels: |
Duplex |
| Material: |
Plastic |
| Sleeve Material: |
Ceramic(Zro2)or Customized |
| Operating Temperature: |
-20ºC to +70ºC |
| Storage Temperature: |
-40ºC to +85ºC |
| Usage: |
Conmmunication |
| Output Type: |
AC or DC |
| Connection: |
Plug In |
| Certification: |
Tlc,SGS,Reach,IEC |
| Color: |
Beige |
| Brand: |
Koc |
Product Description

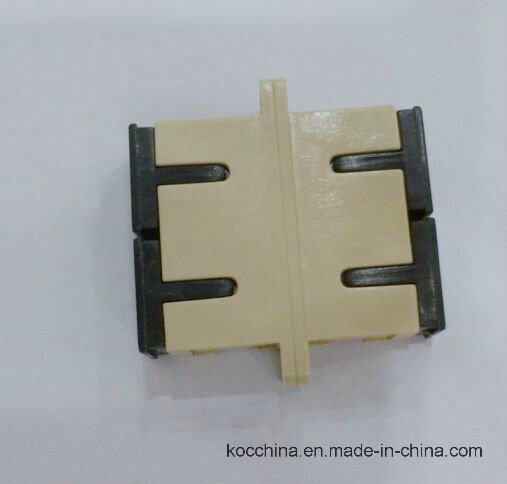

SC duplex fiber optic adaptor, symmetry type
Brief Introduction:
The SC adapters are use ceramic sleeve to connect connectors although they are different size and appearance. Each species has a lot of types and colors can be chose. Single mode and multi-mode are different performance and price. These adapters can locking the connectors and get low insertion loss to transmission optical signal,ARK's adapters are meet the Telcordia and IEC-61754 stander, all material compliance RoHS require.
APPLICATIONS:
1.Test equipment.
2.Connection of optical links in optical active devices
3.Jumper connection
4.Production and testing of optical devices
5.Optical fiber communication system,CATV
6.LANs and WANs
7.FTTX
8.CATV
9.Active device/Transceiver
10.Telecommunication networks
11.Metro
12.Multimedia
13.Data processing networks
14.Test equipment
15.Premise installations
16.Gigabit Ethernet
17.Video
FEATURES:
1.Low insertion loss and back reflection loss
2.Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
3.High precision alignment
4.Compact design
5.Plastic housing
6.Great repeatability and interchangeability
7.Hign reliability
8.Compliant with IEC and Rohs standards
Specifications:
| ITEM | parameter | |
| item | single-mode | multi-mode |
| adapter color | blue,green | beige,magenta |
| test wavelength | 1310nm,1550nm | 850nm,1300nm |
| insertion loss | typical≤0.15dB,MAX≤0.20dB | typical≤0.15dB,MAX≤0.20dB |
| Repeatability | ≤0.10dB | |
| interchangeability | ≤0.20dB | |
| durability | ≤0.20dB,max change 500mating | |
| adapter type | SC/ST/LC/FC | |
| channels | simplex,duplex,4channels | |
| material | plastic or metal | |
| sleeve material | ceramic(ZrO2)or customized | |
| operating temperature | -20ºC to +70ºC | |
| storage temperature | -40ºC to +85ºC | |
Pictures:
