SC Small D Fiber Optical Singlemode Adapter

Name: SC Small D Fiber Optical Singlemode Adapter
Brand: all-electronics-online.com
SKU: 733113502
Availability: InStock
Rating: 4.3 (84 reviews)

Price:	US $ 0.3-1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	424
Connector Type:	SC
Fiber Type:	signal mode
Adapter Color:	Metal
Testing Wavelength:	1310nm,1550nm
Channel Number:	signal core
Frame Material:	Metal
Durability:	1,000 Mating
Usage:	Display
Output Type:	AC
Connection:	Plug In
Brand:	PUNO

Product Description

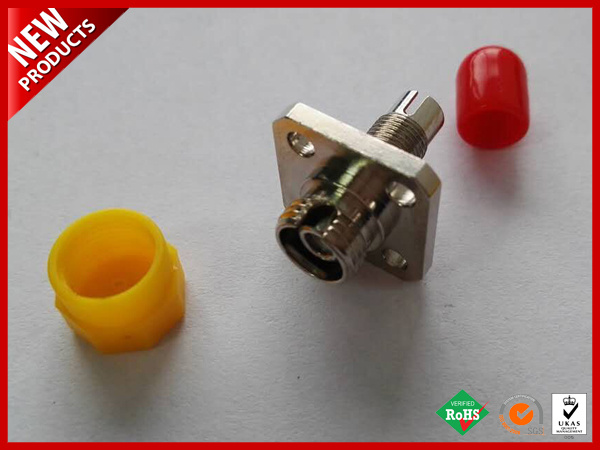

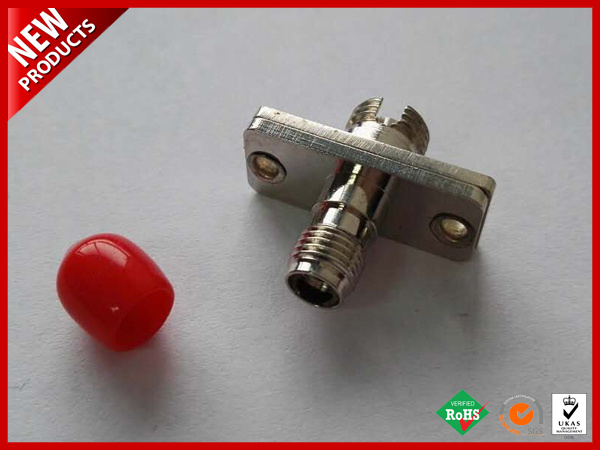

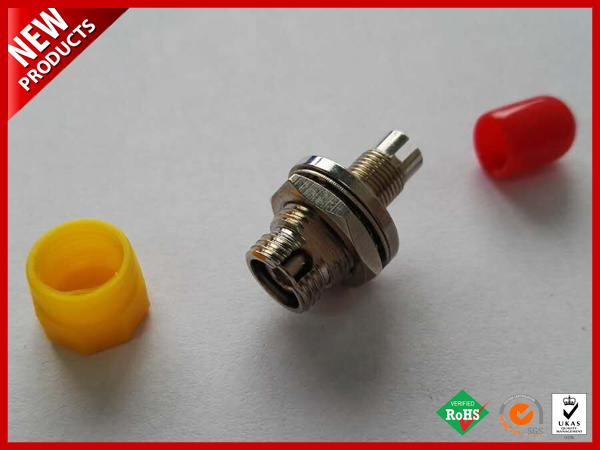

SC Small D Fiber Optical Singlemode Adapter

Fiber optic adapter also called flange plate.Mainly used for connection between the optical connectors and fixed,so that the optical signal can be transmitted with small insertion loss.Series of products include SC,FC, LC,ST,MU,D4,DIN.We adopt precision ceramic sleeve to precisely align the core and core of the connector,ensures ultra low loss optical signal transmission.The most widely used is SC,LC,FC,ST these four.

Features

Good interchangeability and repeatability;
Low insertion loss;
High reliability;
Variety;
Compliant with the IEC60874 and RoHS standards.

Applications

Installation of distribution box interface;
Connection between devices;
Connection between fiber optic patch cords;
CATV, MANs, WANs;
FTTx.

Specifications

Item	Parameter
Connector Type	SC
Fiber Type	Single mode
Adapter Color	Metal
Testing Wavelength	1310nm,1550nm
Typical Insertion loss	≤0.15dB
Maximum Insertion loss	≤0.20dB
Repeatability	≤0.10dB
Exchangeability	≤0.20
Durability	1,000 Mating, loss≤0.20dB
Channel Number	Singal core
Frame Material	Metal
Sleeve Material(Customized)	Default ceramics(Zr02)
Operating Temperature	-20ºC~ + 70ºC
Storage Temperature	-40 ºC~ + 85ºC

Puno Optic Technology Co., Limited. Is the Chinese manufacturing company of superior quality, specialized in assembling connectors on optical fiber cable, was created on January 1, 2005 after spending three years as an incubated division, and became the international department to offer products around the world.

Today, PUNO promotes the same original culture that has made us successful over the years. We strive to incorporate the highest level of quality in every product we produce, transaction we complete, and effort we undertake.

MISSION

We work with passion to create faster connections between people, places, ideas and values.

VISION

Representing the excellence and values of Made In China worldwide.

VALUES

Quality, Innovation, Expertise, Flexibility, Collaboration, Commitment, Honesty.

MARKET

Telecomunicazioni - Telecommunications - Data Center - Broadcasting - Military - Sensor - Transportation

EXPERTISE

More than 10 years in the fiber optics field: In 2008 we developed one of the international sales office located in HK, the powerful city in China.

PARTNERSHIP

China Mobile, China Union, China Telecom, Huawei, Foxconn.
