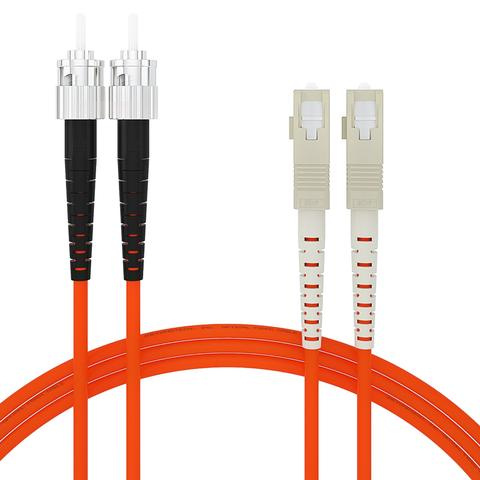

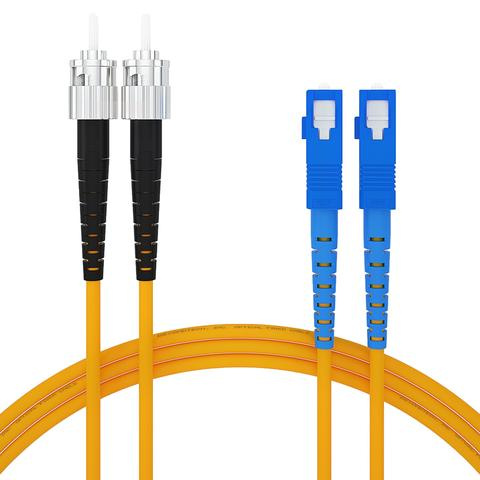

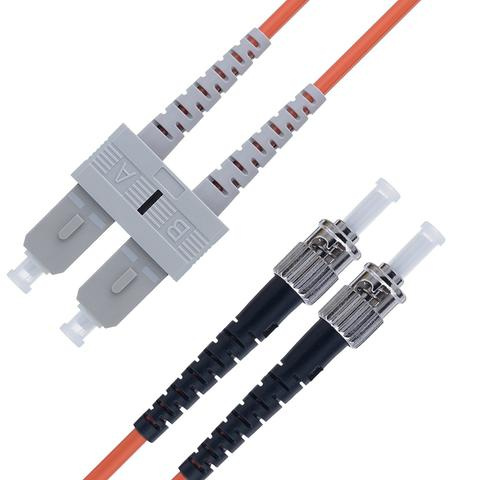

SC-ST SM Simplex Fiber Optic Patch Cord

Name: SC-ST SM Simplex Fiber Optic Patch Cord
Brand: all-electronics-online.com
SKU: 730951675
Availability: InStock
Rating: 5 (132 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC-ST -Ss
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Any Length Is Ok:	Boots Colors Can Be Customized
Cable Diameter Can Be Customized:	Cable Jacket PVC or Lszh Can Be Chose
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC-ST
Certification:	ISO9001

Product Description

These SC-ST SM Simplex Fiber Optic Patch Cord are constructed from high quality SC ST connectors and 9/125 (OS1) grade Cable

Fiber patch cord Complies with IEC, Telcordia GR-326-CORE standard
Low insertion loss and high return loss
PC/UPC/APC polishing
Diameter: 0.9, 2.0, and 3.0mm
Single or multi mode is available
4 fiber, 6 fiber, 8 fiber 12 fiber or 24 fiber is available
10G fiber or LSZH cable is available
Excellent changeability and repeatability
Tensile strength: 10N
Operating temperature range: -40 to 80° C
Storage temperature range: -40 to 80° C
Color of cable: Yellow (SM), Orange (MM), and Aqua (OM3)

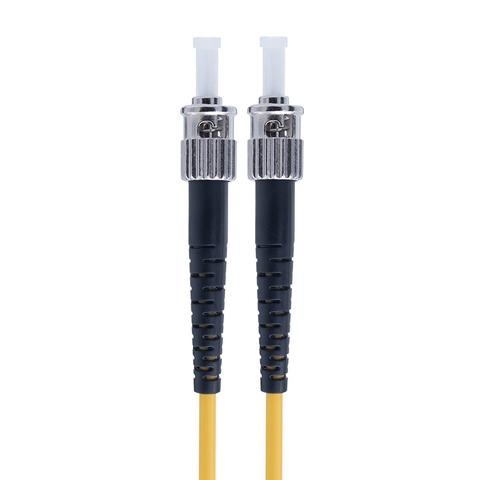

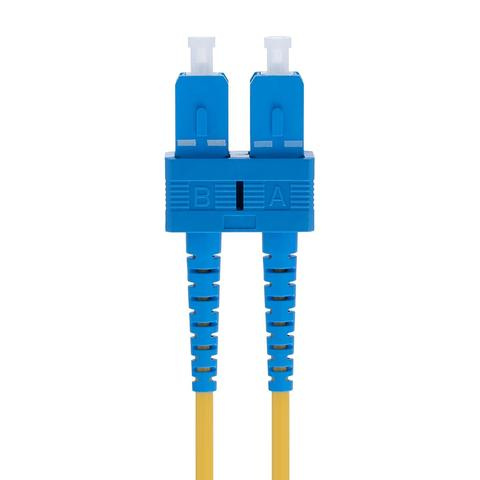

SC ST Connector

Specification

Spec.	fiber optic patch cord
Insertion loss	Less than 0.3 dB
Return loss	UPC more than 55 dB,APC more than 60dB
Repeatability	Less than 0.2 dB
Changeability	Less than 0.1 dB
Operating temperature range	-40 to 80°C
Storage temperature range	-40 to 80°C
Tensile strength	100N
Min. bending radius	35mm
Length	Customed

Shenzhen TRT Fiber Tech. Co., Ltd is specialized in R&D, manufacturing and marketing of fiber optic such as fiber optic cable, fiber optic patch cord/jumper, fiber pigtail, fiber connector, fiber adapter, fiber attenuator, fiber patch panel, ODF, fiber splice closure and other related fiber products.

With a powerful R&D team, TRT Fiber is able to manufacture products according to customer's specifications and requests, even with customized raw materials. We not only offer OEM service, but also help many partners from all over the world to win in the market with professional technical support, excellent product solution, competitive prices, fast delivery and good service. We ensure every piece of our fiber optic products is with excellent performance and appearance.

TRT has been putting a lot of investments to keep pace with fiber optic industry standard. With high quality raw materials, advanced manufacturing equipments and highly skilled workers, we ensure every piece of our fiber optic products is with excellent performance and appearance.

Welcome to be TRT business partners, we are sure to bring you more profits. Thank you.
