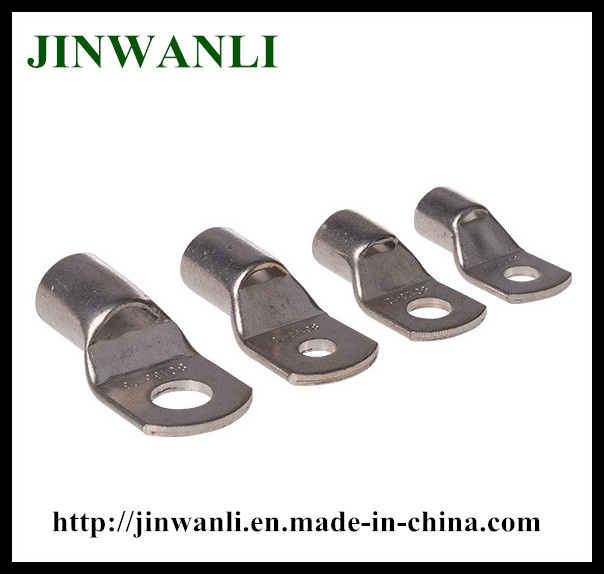

Sc Type Tin Plated Copper Cable Connectors Terminal Lugs

Name: Sc Type Tin Plated Copper Cable Connectors Terminal Lugs
Brand: all-electronics-online.com
SKU: 764536195
Availability: InStock
Rating: 4.6 (75 reviews)

Price:	US $ 0.016/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Socket Terminals
Material:	Copper
Application:	Transmission of Electrical Signals

Product Description

Application:

1. The SC series copper cable lugs are suitable for the connection of copper conductors(section 1.5-1000mm2)in power cable with electronic equiqment.

2. the cable lugs are made of with higher 99.9 percent pute copper tube T2 and coated with tin.

3. Working temperature-55ºC-150ºC.'

We also can supply: High quality terminal, connector, cable lug, cable accesorries

Type	d2Φ (mm)	Size(mm)				(mm² )
		dΦ	DΦ	L1	L
SC 1.5 - 5	5.2	1.8	3.7	5	16	1.5
SC 2.5 - 4	4.2	2.4	4.0	7	18	2.5
SC 2.5 - 5	5.2				20
SC 4 - 5	5.2	3.1	4.8	7	20	4
SC 4 - 6	6.5
SC 6 - 5	5.2	3.8	5.5	9	24	6
SC 6 - 6	6.5
SC 10 - 6	6.5	5	6.5	9	26	10
SC 10 - 8	8.4
SC 16 - 6	6.5	5.7	7.5	11	30	16
SC 16 - 8	8.4
SC 25 - 6	6.5	7.2	9	13	35	25
SC 25 - 8	8.4
SC 35 - 8	8.4	8.5	10.8	13.5	38	35
SC 35 - 10	10.5
SC 50 - 8	8.4	9.8	12.5	16	44	50
SC 50 - 10	10.5
SC 70 - 10	10.5	11.5	14.5	18	51	70
SC 70 - 12	13.0
SC 95 - 10	10.5	13.7	17	22	57	95
SC 95 - 12	13.0
SC 120 - 12	13	15	19	24	64	120
SC 120 - 16	17
SC 150 - 12	13	16.7	21	26	71	150
SC 150 - 16	17
SC 185 - 16	17	18.5	23	30	79	185
SC 240 - 16	21	21	26	38	93	240
SC 240 - 20	17
SC 300 - 16	17	24.5	30	42	103	300
SC 300 - 20	21
SC 400 - 16	17	27	34	42	113	400
SC 400 - 20	21
SC 500 - 16	17	30	38	48	123	500
SC 500 - 20	21
SC 630 - 20	21	35	45	56	135	630
SC 800 - BL	50.0	39.0	78.0	22.0	73.0	170
SC 1000 - BL	56.0	44.0	90.0	22.0	81.0	200
SC 1200 - BL	60.0	47.0	100.0	22.0	87.3	210.0

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
