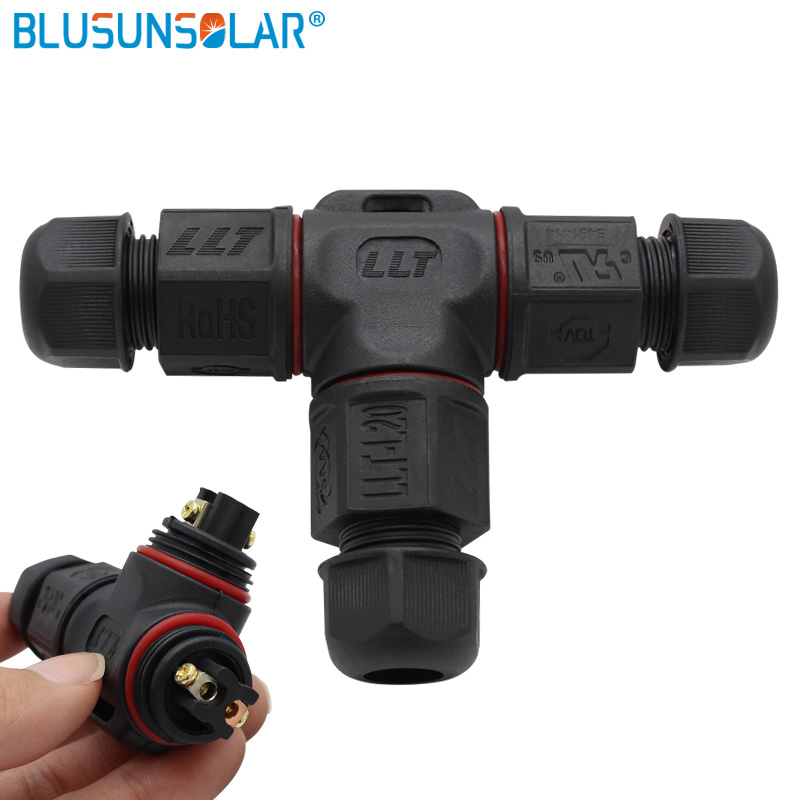

Screw Waterproof 3 Pin Connector Terminal

Name: Screw Waterproof 3 Pin Connector Terminal
Brand: all-electronics-online.com
SKU: 709489762
Availability: InStock
Rating: 4.7 (100 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	L20-3P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contact No:	3 Pin
Voltage Rating:	250V
Current Rating:	20A-5A
Wire Gague:	1.0mmsq - 0.2mmsq
Panel Thickness:	1mm-3mm
Mechanical Life:	3000 Mating Cycles
Operating Rating:	-40 Degree - +105 Degree
Waterproof Level:	IP68
Pin Layout:	2p/3p/4p/5p/6p/7p/8p
Cable Range:	3.5mm - 12mm
Type:	Socket Terminals
Material:	Copper
Application:	Conduct Electricity
Certification:	Ce
Brand:	Llt

Product Description

L20 2 pins/3pins for T type connector

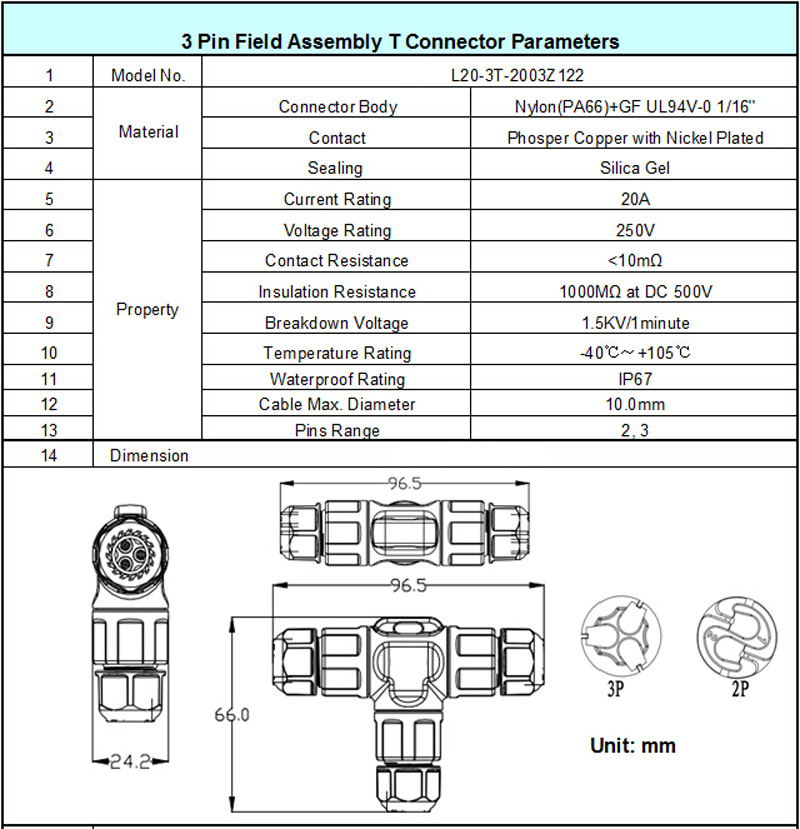

Technical Parament

* IP68 protection degree

* Max. Cable OD: 10mm

* 20A, 250V

*2 pins/3 pins M20 Female + male connector

* IP67 protection rating

* CCC, CE,ROHS certificated

* 6mmsq- 10mmsq Max. Cable OD

* Solder/ Screw connection

* 12 months quality waranty

Poles/pins	contacts	model	contacts	model	contacts	model
	2	LLT-L20-2P	3	LLT-L20-3P	/	/
Rating Voltage	250V		250V		/
Rating Current	20A		20A		/
Withstand Voltage	1500V		1500V		/
Contact Resistance(MHOM)	1		1		/
Operating temperature	-45ºC~ 185ºC		-45ºC~185 ºC		/
Storage temperature	-45ºC~185 ºC		-45ºC~185 ºC		/
Max Cable OD	10mm		10mm		/
Wire Gague	<=2.5 mm		<=1.5mm		/
Waterproof level	IP67		IP67		/

Poles/pins	contacts	model	contacts	model	contacts	model
	2	LLT-L20-2P	3	LLT-L20-3P	/	/
Rating Voltage	250V		250V		/
Rating Current	20A		20A		/
Withstand Voltage	1500V		1500V		/
Contact Resistance(MHOM)	1		1		/
Operating temperature	-45ºC~ 185ºC		-45ºC~185 ºC		/
Storage temperature	-45ºC~185 ºC		-45ºC~185 ºC		/
Max Cable OD	10mm		10mm		/
Wire Gague	<=2.5 mm		<=1.5mm		/
Waterproof level	IP67		IP67		/

Contacts No	2	3	4	5	6	7	8	9
Voltage rating	250V	250V	250V	110V	110V	110V	110V	110V
Current Rating	15A	15A	15A	5A	5A	5A	5A	5A
Wire Gange	<=1.0mmsq	<=1.0mmsq	<=0.75mmsq	<=0.5mmsq	<=0.3mmsq	<=0.2mmsq	<=0.2mmsq	<=0.2mmsq
Mechanical life	3000 mating cycles
Operating rating	-40 degree -- +105 degree
Waterproof level	IP 67
Pin layout	2 Pole	3 Pole	4 Pole	5 Pole	6 Pole	7 Pole	8 Pole
Cable range	7.5mm-10.0mm

Applications
PV inverter
Electric vehicle
Medical equipment
Interactive Smart Grid
Automation machine
Industrial PC
Marine device
Outdoor LED display
Outdoor LED lighting
