| Prod Model: |
GYXTC8S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Fiber Optics |
| Outer Sheath Material: |
PE |
| Loose Tube Material: |
PBT |
| Strengthen Member: |
Steel Wire |
| Outer Sheath Color: |
Black |
| Water Bloking: |
Filling Compound |
| Loose Tube: |
Sz Stranding Loose Tube |
| Outer Diameter: |
10.2mm |
| Fiber Type: |
Single Mode G652D |
| Fiber Brand: |
Corning, Draka, Samsung |
| Application: |
Fiber Optics |
| Type: |
Single-mode Fiber |
| Certification: |
Fiber Optics |
| Connection Structure: |
Fiber Optics |
Product Description

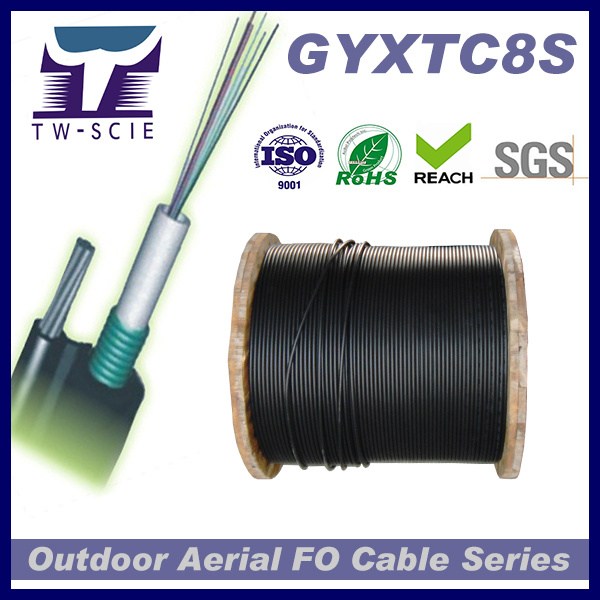

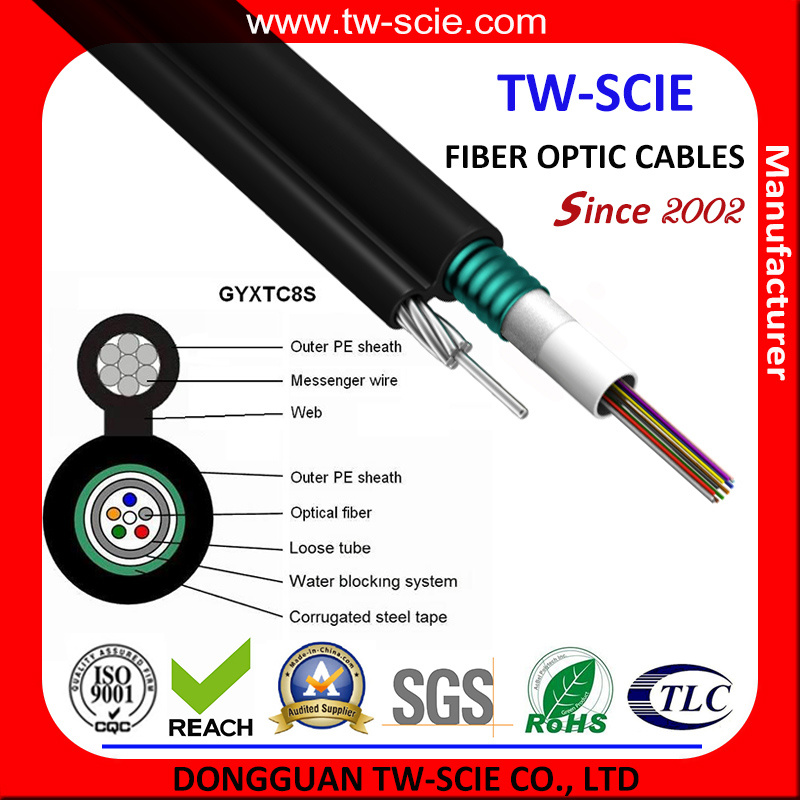

Self Support 2 To 24 Core NetworkingGYXTC8S Aerial Self-Support Central Tube Fiber Optic Cable For Cablevision
Our ServicesAs fiber optics manufacturer we are , we can offer you the structures as your requirement. Our advantage is to finish orders within short delivery time.
Product Description

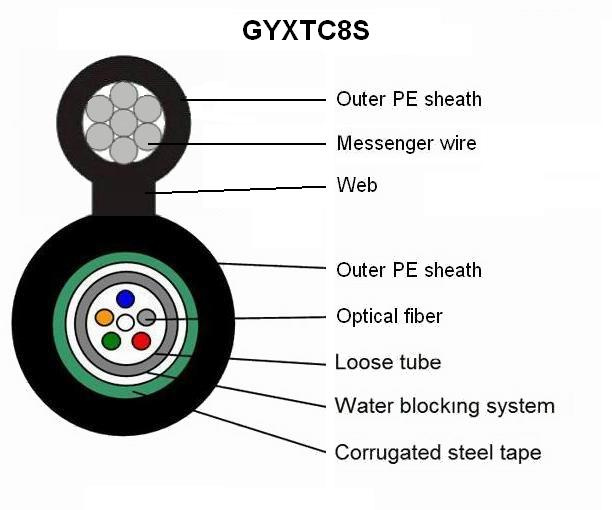

ITU G652D Outdoor Metallic Aerial and Duct fiber optics 12 core Single Mode Armored fiber optics Cable GYXTC8S
1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental characteristics.
3. The armoring of corrugated steel tape makes cable have nice moisture resistance and crush resistance performance.
4. Small cable diameter, light cable weight, easily to install.
5. The sheath also can be made by LSZH, which cable type is GYXTZC8S.
6. fiber optics/ Optic fiber cable/ fiber optics/ communicaiton Optical fiber cable.
Fiber optics Packaging & Shipping
Fiber optics Internetional exporting experiences more than 10 years. If you have any questions about packing or shipping, we can offer you our best services. Inculding firming the packing or arranging the shipping with shipping company.
Company Information
Dong Guan Tw-Scie Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Fiber optics, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
| Fiber optics range | Steelmessenger | Cable outer | MESSENGER | Cabe | Min-bending | Static | Dynamic | Allowabe | Safe | Min.Brokem | Short term |
| specs | diameter | wire outer | height | radius | tension | tension | tension |
|
| diameter |
|
|
|
|
|
| 2-24 | 1X7-3.0 | 8.3 | 5 | 15.8 | 135 | 10D | 20D | 3000 | 1000 | 7990 | 2000 |
DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
