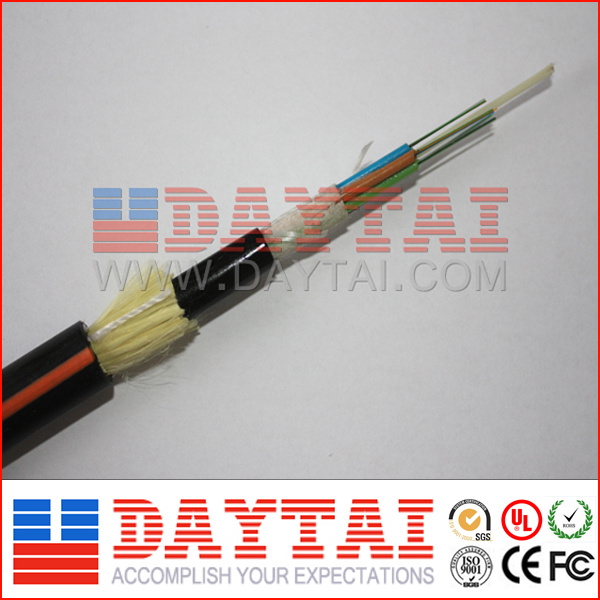

Self Supporting Aerial ADSS Fiber Optic Cable
| Price: |
US $ 0.03-0.15/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5000/Meter |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: |
ADSS Fiber Optic Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
ADSS Fiber Optic Cable |
| Fiber Color: |
Nature,Blue,Red,Green, |
| External Sheath: |
PVC or Lszh |
| Mode: |
Single or Multimode |
| Fiber Cores: |
2~48 Cores |
| Max. Cores In Tube: |
6/12 Cores |
| Armored: |
Steel Wire |
| Application: |
Aerial and Duct Direct Burial |
| Certification: |
ISO9001 |
| Type: |
Single Fiber or Multimode Fiber |
| Brand: |
Daytai |
| Core: |
2~48 Cores Fiber Optic Cable |
| Sheath Material: |
PVC or Lszh |
Product Description
Self Supporting Aerial ADSS Fiber Optic Cable
ADSS Fiber Optic Cable Specification
1.Outdoor Optical Fiber Cable
2.Inner fiber counts: 2~48 cores
3.Good flexibility
4.Rohs CE support
ADSS Fiber Optic Cable Feature
1.It is applicable for the transmissionwavelength 1310mm and 1550mm.
2.The biggest advantage of ADSS optical cable is that the cable doesn't need the suspenderby taking the advantage of the existing pole.
3.Itis applicable for the different span form 50-1000M, it mainly uses Kevlar asthe strengthening device, has good tensile strength, bullet-proof performanceand good performance in high and low temperature.
4.Thecable design and experiment can comply with the IEEEP1222.
ADSS Fiber Optic Cable Remark:
1. Only a part of ADSS cables are list in the table, 2~36 fiber in the ADSS optical cable;
2. DAYTAI Will design the cable depending on the request of climate, span, voltage degree for customer.
ADSS Fiber Optic Cable Technical characteristics
Max. allowable working tension |
Break strength |
Year average working tension |
Weight (Kg/Km) |
Diameter (mm) |
Operation temperature (ºC) |
PE sheath |
AT sheath |
3.0 |
7.5 |
1.88 |
115 |
123 |
11.9 |
-40~+60 |
4.0 |
10.0 |
2.5 |
118 |
127 |
12.1 |
-40~+60 |
5.0 |
12.5 |
3.13 |
120 |
130 |
12.2 |
-40~+60 |
6.0 |
15.0 |
3.75 |
123 |
132 |
12.3 |
-40~+60 |
7.0 |
17.5 |
4.38 |
126 |
135 |
12.5 |
-40~+60 |
8.0 |
20.0 |
5.0 |
128 |
137 |
12.6 |
-40~+60 |
9.0 |
22.5 |
5.63 |
131 |
140 |
12.7 |
-40~+60 |
10.0 |
25.0 |
6.25 |
134 |
143 |
12.9 |
-40~+60 |
11.0 |
27.5 |
6.88 |
136 |
145 |
13.0 |
-40~+60 |
12.0 |
30.0 |
7.5 |
138 |
148 |
13.1 |
-40~+60 |
13.0 |
32.5 |
8.13 |
142 |
151 |
13.3 |
-40~+60 |
14.0 |
35.0 |
8.75 |
144 |
154 |
13.4 |
-40~+60 |
15.0 |
37.5 |
9.38 |
146 |
156 |
13.5 |
-40~+60 |
16.0 |
40.0 |
10.0 |
149 |
159 |
13.6 |
-40~+60 |
18.0 |
42.5 |
10.63 |
154 |
164 |
13.8 |
-40~+60 |
20.0 |
45.0 |
11.25 |
159 |
169 |
14.1 |
-40~+60 |

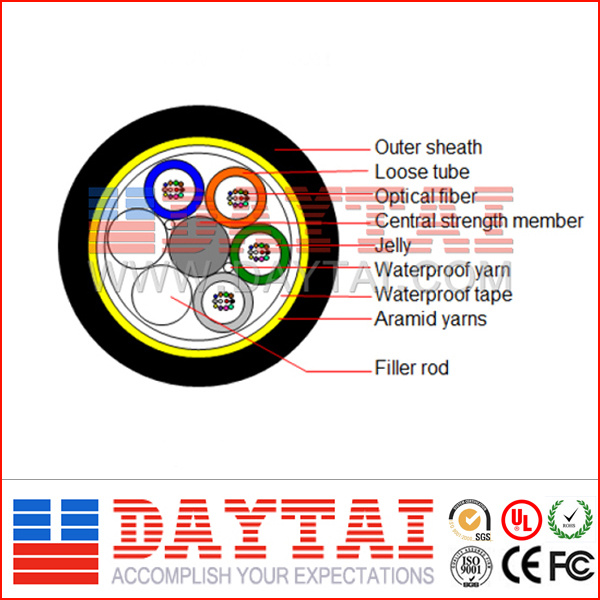

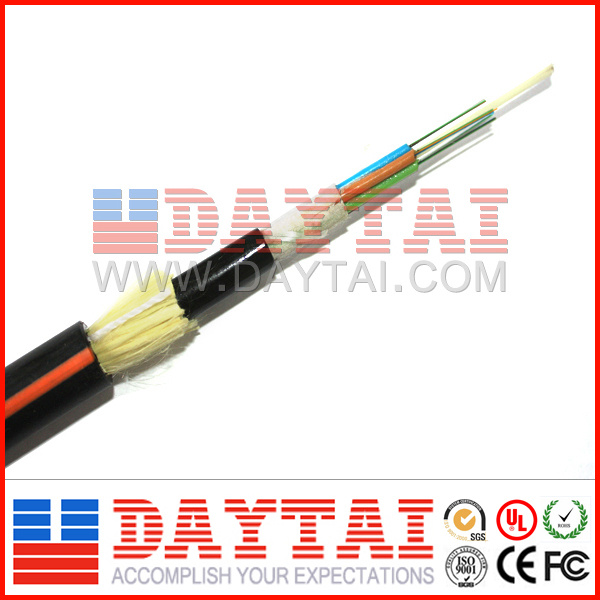

Pictures of ADSS Fiber Optic Cable:
