Self-Supporting Fiber Optic Drop Cable FTTH with FRP Strengthen

Name: Self-Supporting Fiber Optic Drop Cable FTTH with FRP Strengthen
Brand: all-electronics-online.com
SKU: 811105865
Availability: InStock
Rating: 4.6 (53 reviews)

Price:	Negotiablepieces
Min Order:	1000pieces
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fiber Optic Drop Cable FTTH
Cable Type:	G657A or G652D
Model No.:	GJYXFCH
Structure:	2.0*5.0
Sheath:	LSZH PE
Installation:	Aerial
Fiber Counts:	1-2 Cores
Application:	Telecommunication
Certification:	ISO9001
Type:	Indoor Cable
Connection Structure:	Patch Cable
Core:	1 Core or 2 Core
Sheath Material:	PVC or LSZH

Product Description

FRP Strengthen Self-Supporting Fiber Optic Drop Cable FTTH

Description
The 250um colored coating fiber is positioned in the centre. Two parallel FIber Reinforced Plastics (FRP) are placed at

the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color UV and flame resistant LSZH sheath.

Product Construction:
Fiber:
1-2 fibers
250um colored coating fiber

Strength Member:
Steel wire or FRP (Fiber glass reinforced plastic)

Messenger Member:
FRP Non-mentallic strengthen member

Outer Jacket:
UV and flame resistant LSZH

Features:

Good UV and flame resistant.
Bow type flat structure.
Compact, soft, flexible, easy to install.
Fig8 self-supporting design.
Designed for use with cheap attachment hardware.

Applications:

Used in access network or as access cable from outdoor to indoor in customer premises .
Used as access building cable in premises distribution system,
Especially used in indoor or outdoor aerial access cabling.

Options:
Fiber Type: G.652D, G.657A1 or G.657A2 single mode fiber

Optical Characteristics

Fiber Type	Attenuation		Overfilled launch Bandwidth	Effective Modal Bandwidth	10GB/S Ethernet link length	Min Bending Radius
Conditions	1310/1550nm	850/1300nm	850/1300nm	850nm	850nm
Unit	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22					16
G657A1	0.36/0.22					10
G657A2	0.36/0.22					7.5
50/125		3.0/1.0	≥500/500			30
62.2/125		3.0/1.0	≥200/500			30
OM3		3.0/1.0	≥1500/500	≥2000	≥300	30
OM4		3.0/1.0	≥3500/500	≥4700	≥550	30
B1-OM3		3.0/1.0	≥1500/500	≥2000	≥300	7.5
B1-OM4		3.0/1.0	≥3500/500	≥4700	≥550	7.5

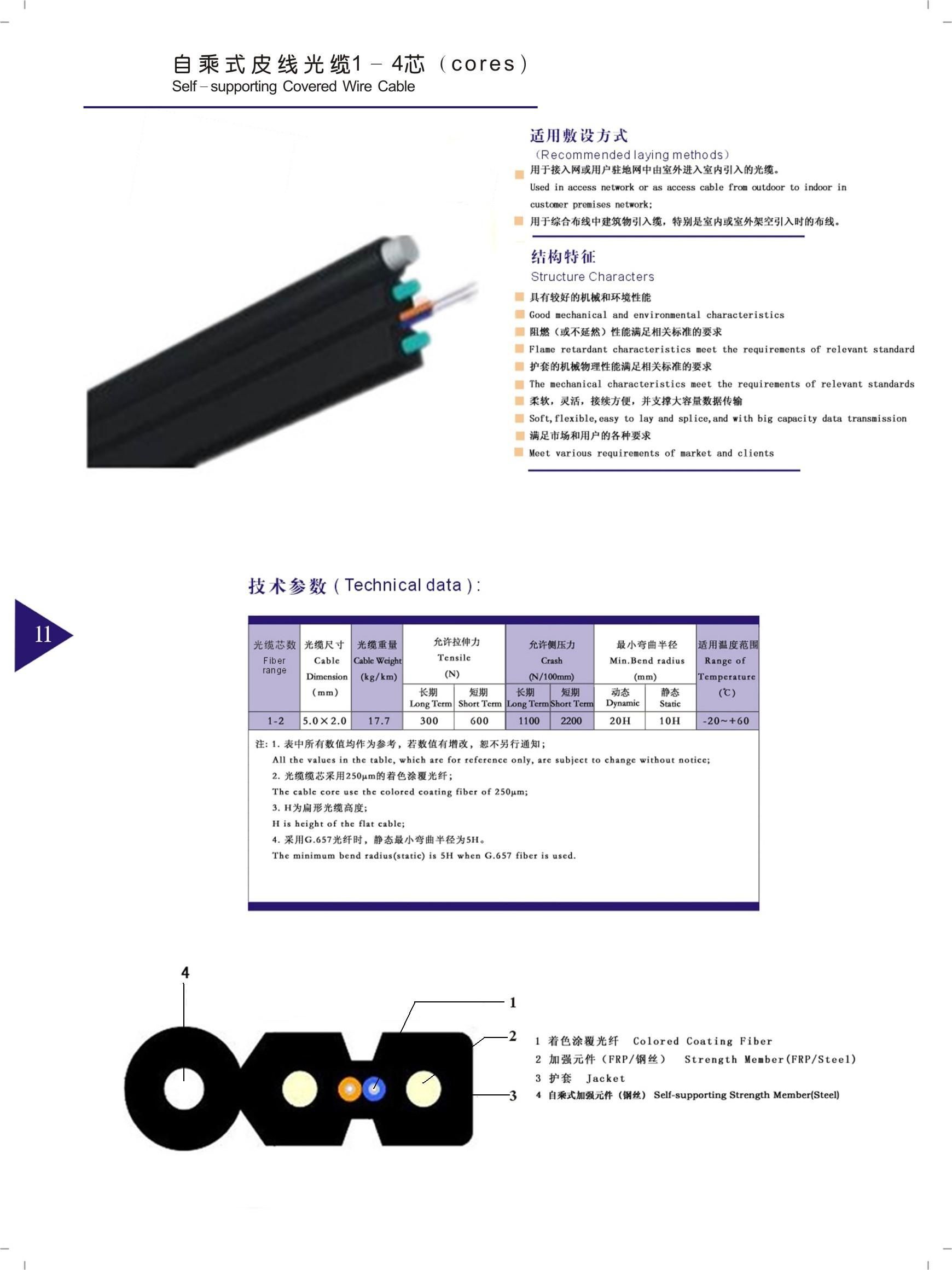

Structure and Technical Specification

Fiber Count

Cable Diameter

(mm)

Cable Weight

(kg/km)

Tensile Strength

(N/100mm)

Crush Resistance

(N/100mm)

Short Term

Long Term

Short Term

Long Term

1-4

5.2*2.0

600

300

2200

1000

Note :1.This datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for

more information.

2.The cable core use the colored coating fiber of 250μm.

3.The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used.

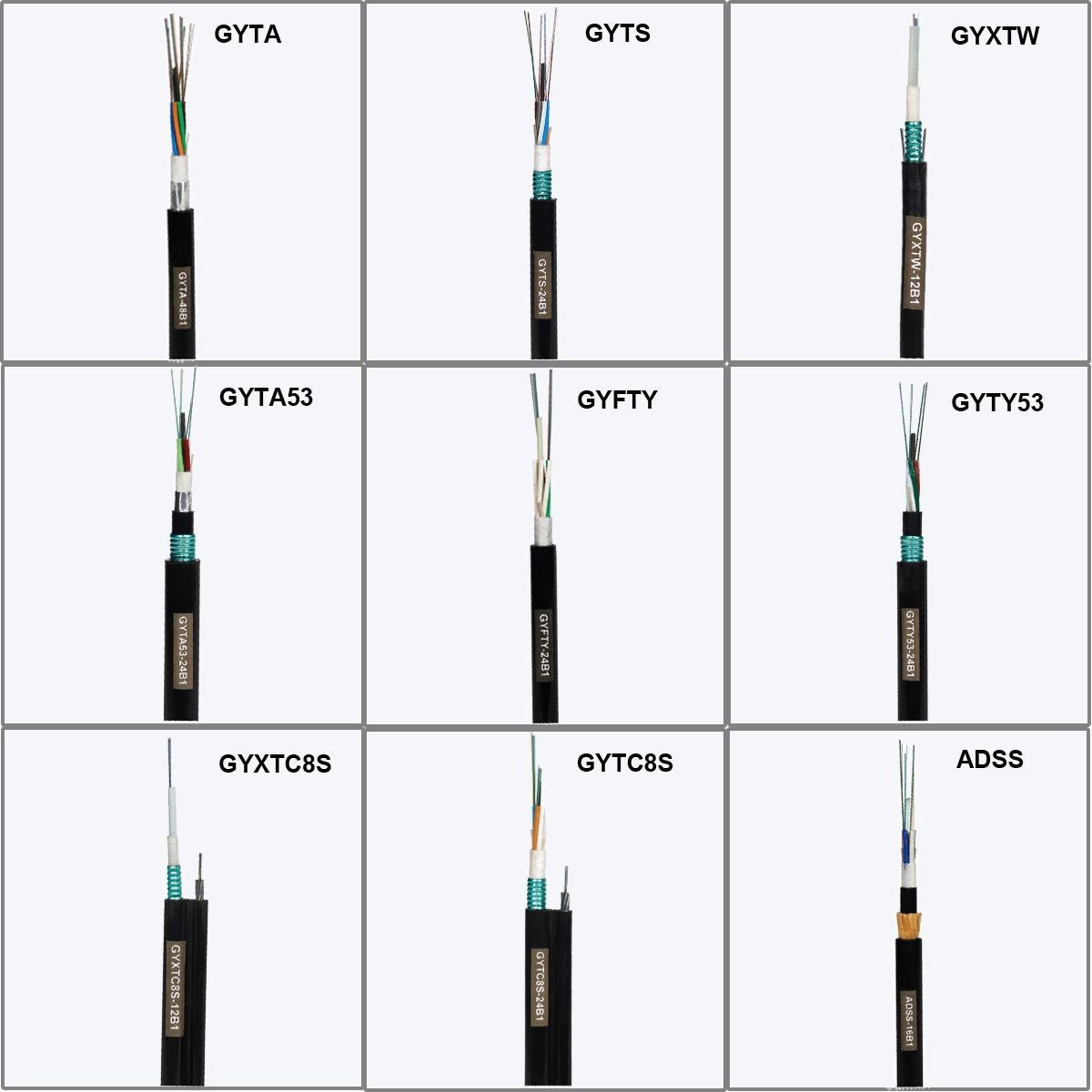

MAIN PRODUCTS:

ABOUT US:

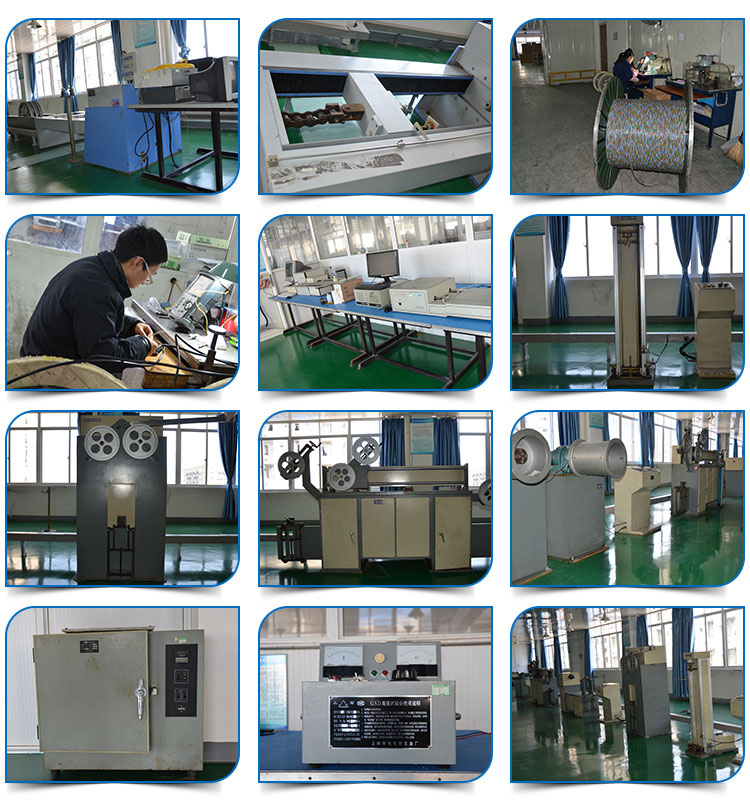

Quality and Safety
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products have passed RoHS, ISO9001 and TLC certifications.

Our Principles
Full customer satisfaction
Commitment to high-quality service
Long-term cooperation and profits for each other.
Self-Supporting Fiber Optic Drop Cable FTTH

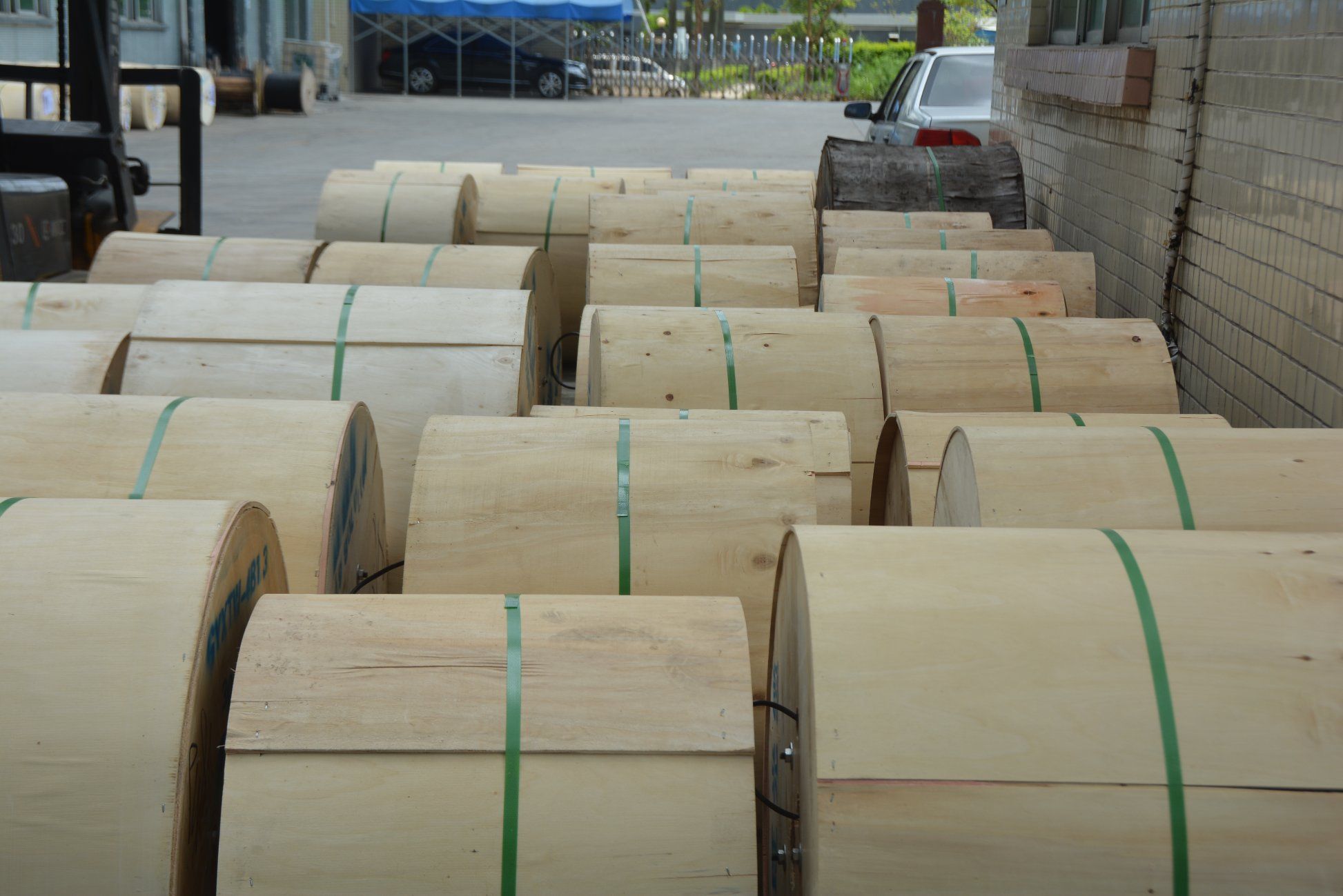

PACKING LIST:

WHY CHOOSE US:

MORE INFORMATION:

Payment

For large orders, T/T , L/C, and E-credit lines are all offered.

For small orders, credit-cards are accepted.

Shipping & Delivery

We will send the products within 10 days.

We ship small batched by air, or large orders by container.

Return and Warranty:

All products have been tested before ship out

All products have 5 years warranty. If there is no man-made problem ,we will replace or repair for you freely.

We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.

Tag: drop cable; fiber cable; aerial cable.

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
