| Prod Model: |
GJYFXCH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cable Structure: |
Tight Buffer Self-Support |
| Fiber Count: |
1-4 Cores |
| Fiber Options: |
G657A1, G657A2, G652D |
| Strength Member: |
1.0mm or 1.2mm Steel Wire |
| Installation Tensile: |
600n |
| Material Of Jacket: |
UV and Flame Resistant LSZH |
| LSZH: |
Smoke,Zero Halogen,Flame Retardant Sheath |
| Certificate: |
ISO9001/Ce/RoHS |
| Warranty (Year): |
2 |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
CCC |
| Connection Structure: |
Other |
| Core: |
1-4 |
| Brand: |
Efon |
| Sheath Material: |
Lszh,PVC |

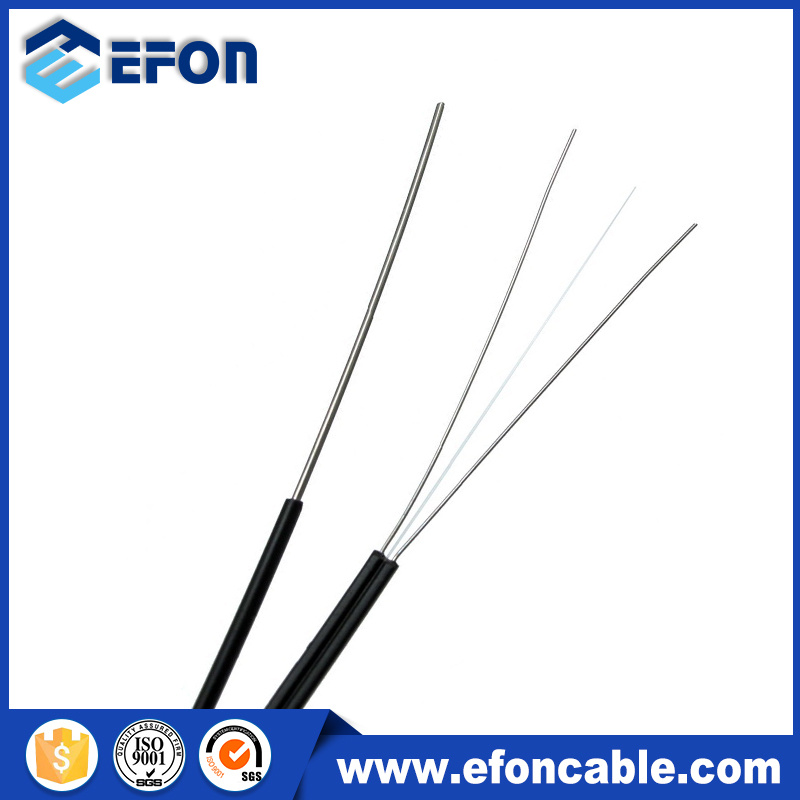

Product Description
Self-Supporting Fiber Optic Drop Cable FTTHDescription The 250um colored coating fiber is positioned in the centre. Two parallel FIber Reinforced Plastics (FRP) are placed at
the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color UV and flame resistant LSZH sheath.

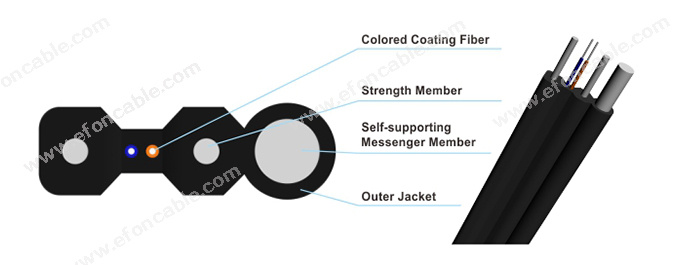

Product Construction:
Fiber:
1-4 fibers
250um colored coating fiber
Strength Member:
Steel wire or FRP (Fiber glass reinforced plastic)
Messenger Member:
Phosphatized steel Wire or zinc-coated wire
Outer Jacket:
UV and flame resistant LSZH
Features:
- Good UV and flame resistant.
- Bow type flat structure.
- Compact, soft, flexible, easy to install.
- Fig8 self-supporting design.
- Designed for use with cheap attachment hardware.
Applications:
- Used in access network or as access cable from outdoor to indoor in customer premises .
- Used as access building cable in premises distribution system,
- Especially used in indoor or outdoor aerial access cabling.
Options:
Fiber Type: G.652D, G.657A1 or G.657A2 single mode fiber
Optical Characteristics
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | | | | | 16 |
| G657A1 | 0.36/0.22 | | | | | 10 |
| G657A2 | 0.36/0.22 | | | | | 7.5 |
| 50/125 | | 3.0/1.0 | ≥500/500 | | | 30 |
| 62.2/125 | | 3.0/1.0 | ≥200/500 | | | 30 |
| OM3 | | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 |
| OM4 | | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 |
| B1-OM3 | | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 |
| B1-OM4 | | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5
|
Structure and Technical Specification
| Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) |
Tensile Strength
(N/100mm) | Crush Resistance (N/100mm) |
| Short Term | Long Term | Short Term | Long Term |
| 1-4 | 5.2*2.0 | 18 | 600 | 300 | 2200 | 1000 |
Note :1.This datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for
more information.
2.The cable core use the colored coating fiber of 250μm.
3.The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used.
